READ INSTRUCTIONS THOROUGHLY PRIOR
TO OPERATING THE RIVETER. THIS RIVETER
IS DESIGNED FOR INTERMITTENT DUTY AND
MAINTENANCE WORK ONLY.
The AK-175 is a pneudraulic tool designed to set from 1/8”
up to and including 1/4 inch diameter steel, stainless steel,
aluminum and plastic rivets by changing only the nosepiece.
The AK-175 has a rated pull pressure of over 3,500 lbs. The
AK-175 riveter will operate effectively at any air pressure
between 90 and 120 psi. WHEN SETTING 1/4” RIVETS OR
MAGNALOK
®
A MINIMUM AIR PRESSURE OF 110 p.s.i.
MUST BE MAINTAINED The maximum air pressure used
with the tool should not exceed 120 psi.
The AK-175 utilizes totally different principles than any other
riveter. The air pressure activates a reciprocating hydraulic
pump which generates the force required to set the fastener.
The hydraulic system is sealed and, although there may
be some visible residue around the trigger area, oil need
not be added. If the AK-175 should become damaged and
leaks oil from the tool, IT SHOULD BE RETURNED TO AN
AUTHORIZED SERVICE CENTER. (Authorized Service
Centers may be found in Tool Serivce Center Section of
the Manual)
Model Weight Min PSI Max PSI Rivet Diameter Pull Pressure Stroke
AK-175 32 oz 90* 120 1/8”-1/4” 3500 lbs. 5/8”
*When setting 1/4” MAGNALOK
®
rivets, MIN Air pressure is 110 psi
Accessories
* Nose Extension Kit
P/N 205490
For more accessories see the
optional accessories section
tool SPecificationS

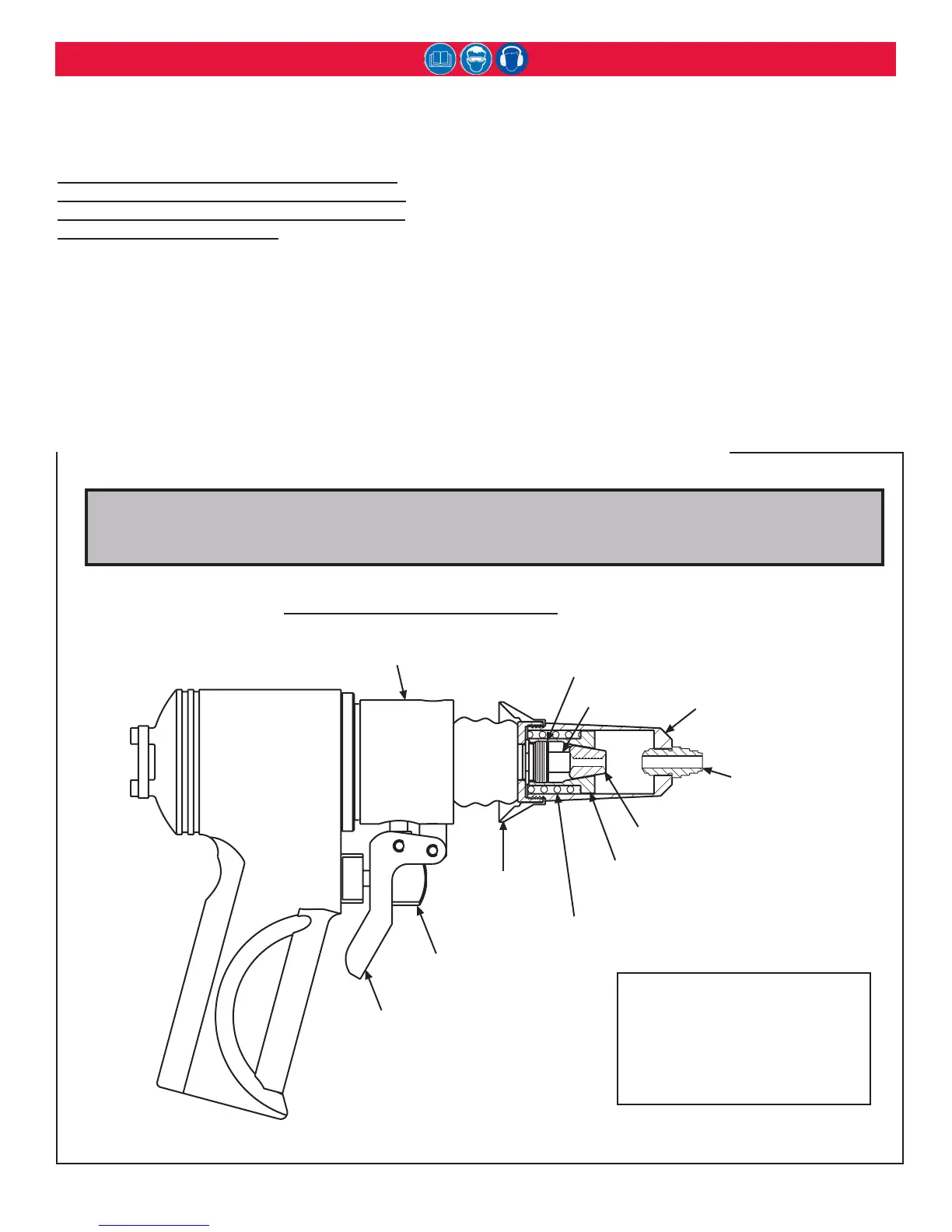

PrinciPle of oPeration
