8 ELECTRICAL
Turn the adjusting screw to set the dwell angle to the proper
setting of degrees (Fig. 2). (See Test Specifications.)
Screw Adjustment Method Distributor Mounted in a
Vise
Connect a testing lamp to the primary lead.
Rotate the shaft until one of the circuit breaker cam lobes is
under the center of the rubbing block of the breaker lever.
Turn the adjusting screw (clockwise) as shown in Figure 2
until the lamp lights, then give the wrench one-half turn in
the opposite direction (counterclockwise) giving the proper
dwell angle.

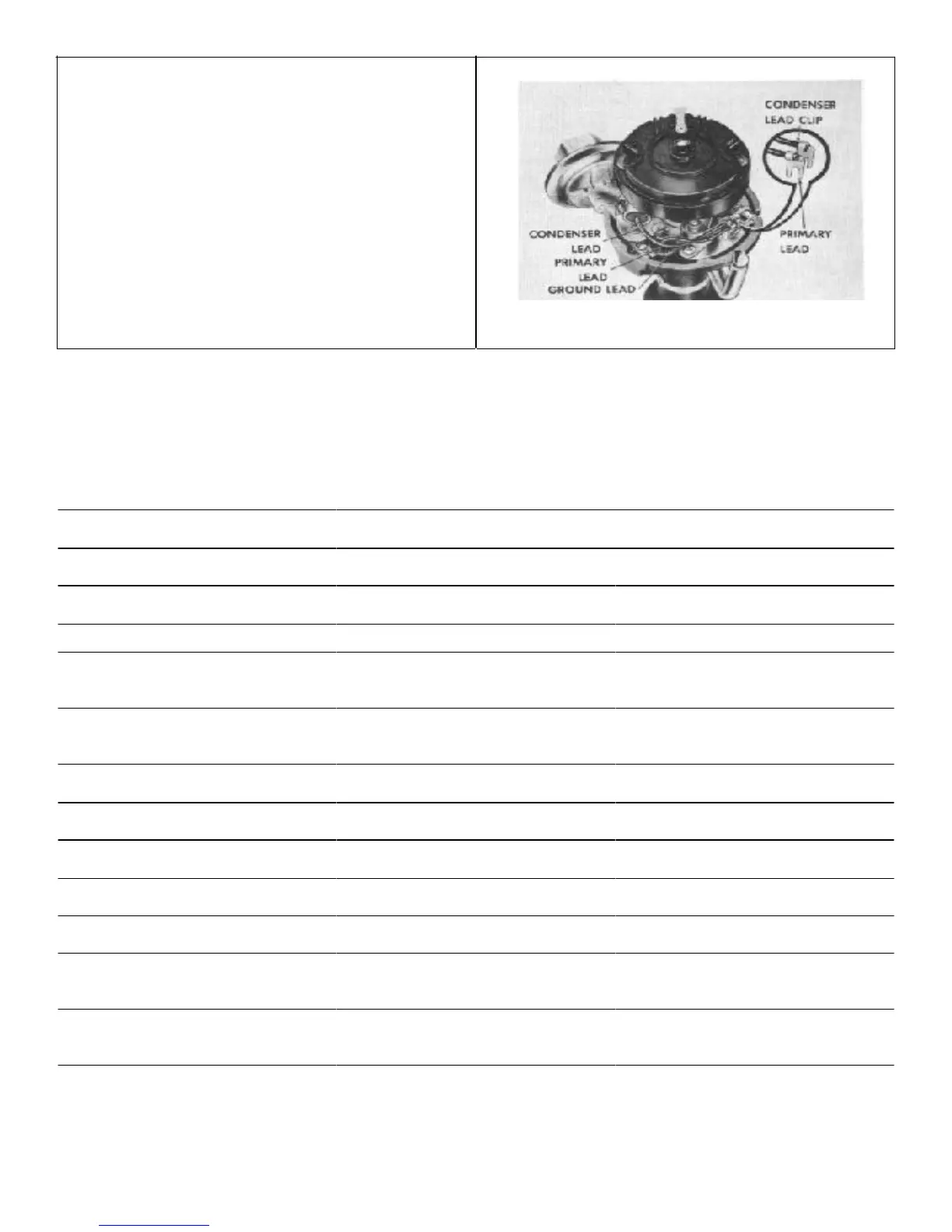

Figure 5—Correct Routing and Attachment of
Primary Ignition and Condeser Leads
BATTERY SPECIFICTIONS
Make Auto-lite
Model 11-HS-60
Rating 60 Ampere Hours
No. of Plates (Each Cell) 11
GENERATOR SPECIFICATIONS
With
Air Conditioning
Withoout
Air Conditioning
Make \Delco-Remy \Delco-Remy
Model 1102070 1102018
Type Shunt Shunt
Rotation CW. @ Drive End CW. @ Drive End
Brush Spring Tension 28 Oz. 28 Oz.
Field Current 1.69-1.79 Amperes
@ 12 Volts, 80°F.
1.48-1.62 Amperes @
12 Volts, 80°F.
Cold Output 35 Amperes @ 14.0
Volts, 2510 R.P.M.
30 Amperes @ 14.0
Volts, 2210 R.P.M.
