Check carton for:
tank assembly, pump, carrying strap, hose assembly with shut-off valve, and a bag. The bag contains: wand assembly, hose clamp and instructions.
Here’s How to assemble your sprayer
2
If any part is missing, please call 1-800-9-SPRAYER (800-977-7293) to order a replacement.

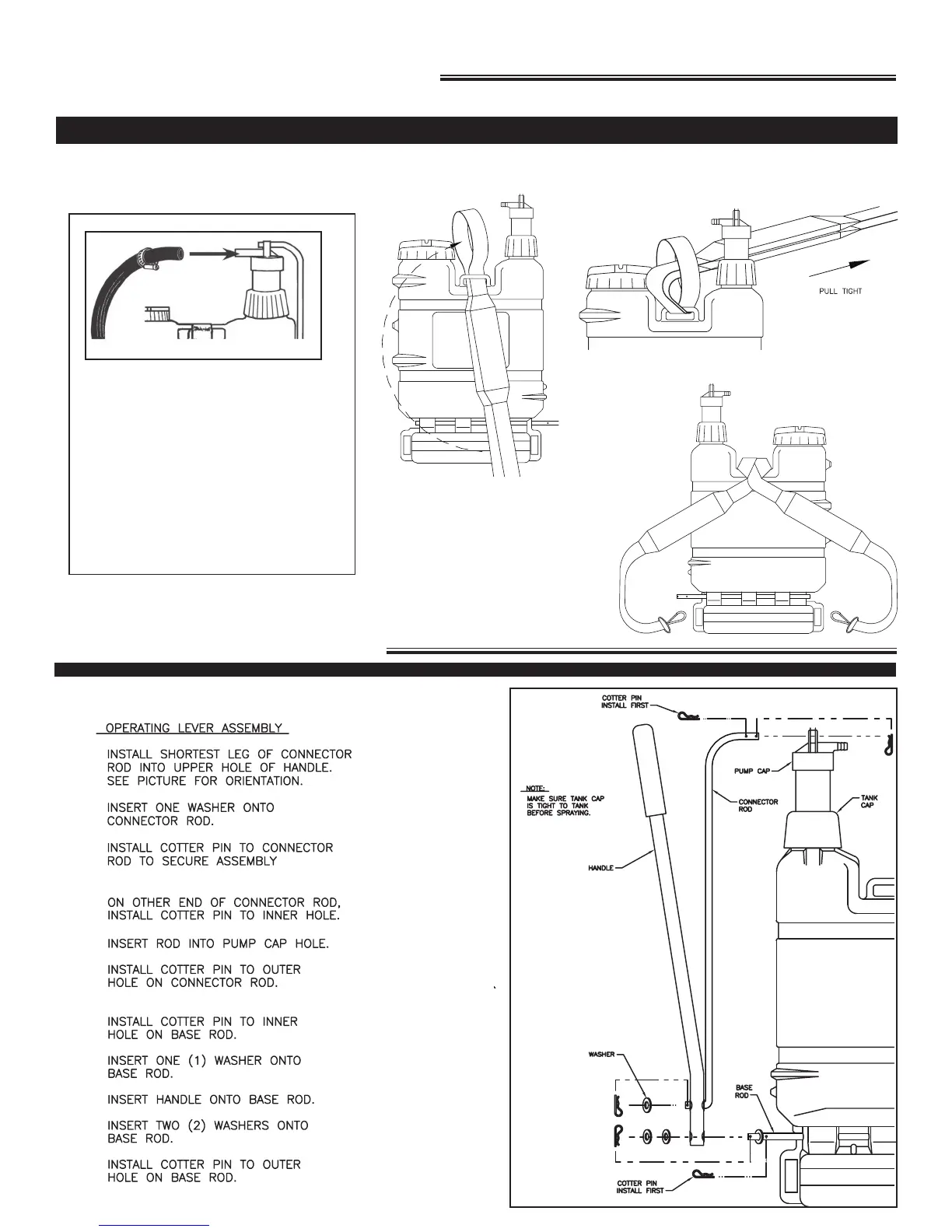

Assembling the operating lever
3
2
Do not use any kind of lubricant on the hose
or fitting. Push hose over fitting on pump.
Place ¼ inch from end of hose and tighten
securely. CAUTION! Failure to do so can result
in SERIOUS INJURY from forcible ejection
parts or high-pressure ejection of spray
material.
Slide clamp into hose.
Note: Make sure tank cap is tight to tank before spraying.
ATTACHING STRAPS
Illustration is set up for right hand pumping.
Reverse for left hand pumping. Pull the strap
through the loop on the top of the sprayer.
Attach metal slips to the loops on the base
of the sprayer.
With the sprayer resting on a at surface,
put arm through the straps. Adjust the straps
before lling the tank.
