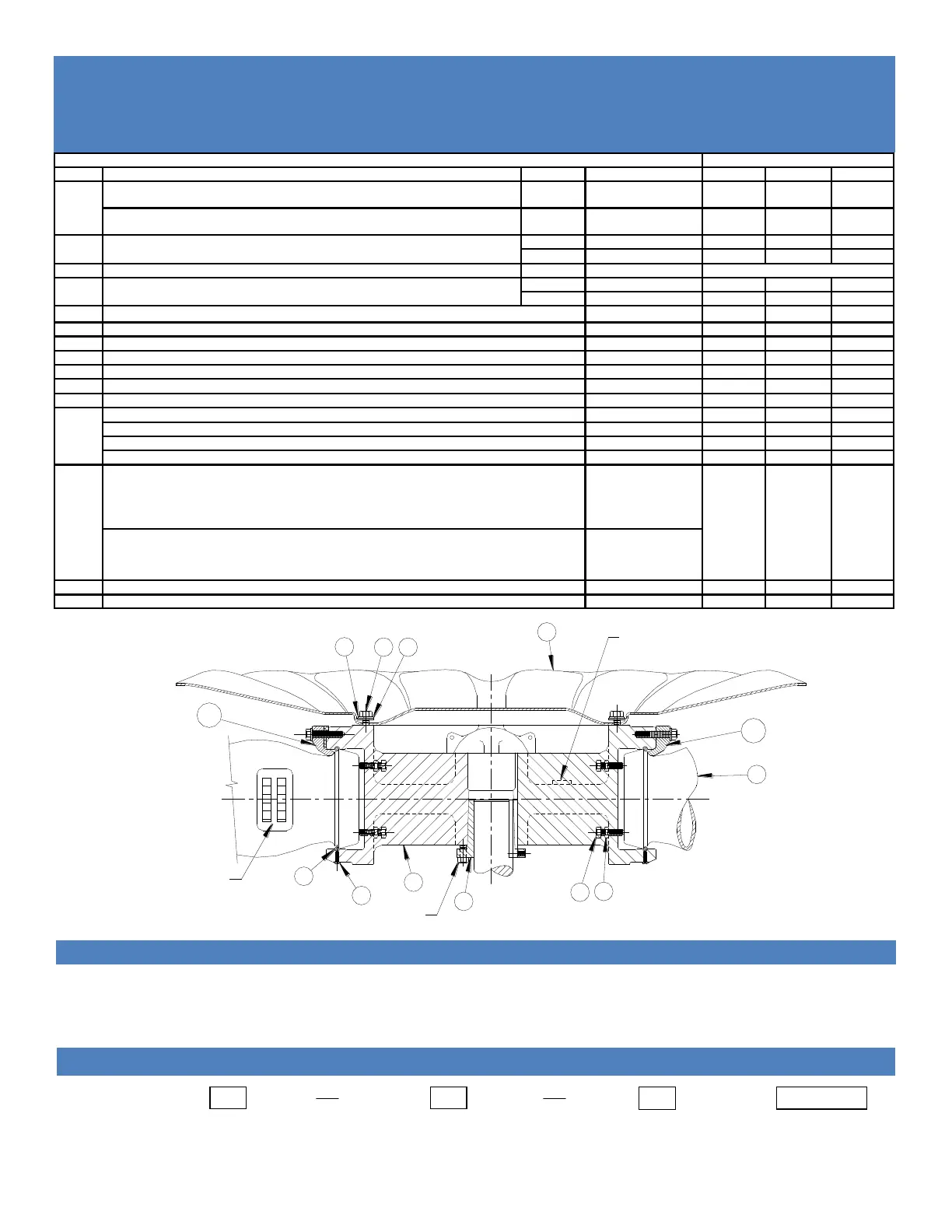

Installation Manual 3000B Page 8 of 9 May 2012
PARTS LIST
HUDSON PRODUCTS CORPORATION
Adjustable Pitch Fan Assembly 5’ Thru 16’ Diameter
Series 3000B, C, D & W HUB
NO. OF BLADES
ITEM DESCRIPTION TYPE PART NO. 4 5 6
1” Dia. Thru 2.62 Dia Q-2
Hub Assy. No.
Part No.
3104
H3100
3105
H3150
3106
H3110
2.68 Dia Thru 3.62 Dia R-2
Hub Assy. No.
Part No.
3204
H3200
3205
H3250
3206
H3210
1
Hub Body ***
(1 Per Hub)
Q-2 Part No 65100 65106 65110
R-2 Part No 65105 65108 65115
ITEM DESCRIPTION TYPE PART NO. QTY PER ASSEMBLY
2 Bushing
Q-2 Specify Bore 1 1 1
R-2 Specify Bore 1 1 1
3 Blade Retainer Half 62380 8 10 12
4 Lock Screw (#8-32 X 5/8) 72661 8 10 12
5 Blade Socket Cap Screw (3/8 X 1-1/2), 316 SS 60274 16 20 24
6 3/8 Jam Nut, 316 SS 72051 16 20 24
7 Cap Screw (3/8 X 5/8), 316 SS 72330 4 5 3
8 3/8 Lock Washer, 316 SS 73722 4 5 3
9 3/8 Flat Washer, 316 SS 73623 4 5 3
10
30” Dia Seal Disc (6’-10’ Dia Fans, 6B-10B Blades) 81100 1 1 1
38” Dia Seal Disc (6’-12’ Dia Fans, 6C-10C, 6D-10D & 11B-12B Blades) 81105 1 1 1
42” Dia Seal Disc (11’-14’ Dia Fans, 11W-12W & 13B-14B Blades) 81110 1 1 1
53” Dia Seal Disc (13’-16’ Dia Fans, 13W-16W Blades) 81114 1 1 1
11A
OR
11B
Old Style Severe Duty Blade Retainer Assembly Consisting of **
(1) - Severe Duty Blade Retainer (P/N 65289)
(2) - Cap Screws 3/8-16x2, 316 SS (P/N 53622)
(2) - Lock Washers 3/8,316 SS (P/N 73722)
(1) - Blade Retainer Spacer (P/N B3246)
K2200
4 5 6
New Style Severe Duty Blade Retainer Assembly Consisting of **
(1) - Severe Duty Blade Retainer (P/N D3261)
(2) - Cap Screws 3/8-16x2 1/4, 316 SS (P/N 69934)
(2) - Lock Washers 3/8, 316 SS (P/N 73722)
K2202
12 Retainer Ring Removal Tool 62379 1 1 1
13 Tuf-Lite
®
Blade (Black) (Varies) 4 5 6
STANDARD MATERIALS & FINISHES
WHEN ORDERING, SPECIFY FAN DIAMETER, TYPE & NUMBER OF BLADES & SHAFT DIAMETER
Blades: Fiberglass reinforced epoxy
Hub Body: Cast Iron, Enamel Finish
Fasteners: 316 Stainless Steel
Seal Disc: Fiberglass Reinforced Polyester
Bushing: Malleable Iron
Fasteners: 316 Stainless Steel
Fan Model Fan Diameter & Blade Type Number of Blades Shaft diameter
Adjustable Pitch (Specify “B”, “C”, “D” & “W”
for Tuf-Lite
®
Blades)
1 4B
EXAMPLE:
APT
6
2 7/8” BORE
2
1
3
4
5
6
7
8
9
10
11B
HUB MODEL NO.
& SERIAL NO.
BLADE MODEL NO.
SERIAL NO.
KEY, SET SCREW & CAP SCREWS
FURNISHED WITH BUSHING
13
11A
OLD STYLE HUB
& RETRO-FIT
SDR SHOWN
NEW STYLE HUB
& SDR SHOWN
1
2
3
4
5
6
7
8
9
10
BUSHING
Q-2
R-2
Q-2
R-2
ITEM DESCRIPTION TYPE P/N
SPECIFY
BORE
1" DIA. THRU 2.62 DIA.
2.68 DIA. THRU 3.62 DIA.
Q-2
R-2
HUB ASSY. NO.
HUB ASSY. NO.
P/N
P/N
4 5 6ITEM DESCRIPTION TYPE P/N
NO. OF BLADES
PARTS LIST
HUB BODY
(1 PER HUB)
65100
65105
65106
65108
65110
65115
P/N
P/N
1
1
1
1
1
1
BLADE RETAINER HALF
LOCK SCREW (#8-32 x 5/8)
BLADE SOCKET CAP SCREW (3/8 x 1 1/2)
3/8 JAM NUT
CAP SCREW (3/8 x 5/8)
3/8 LOCK WASHER
3/8 FLAT WASHER
30" DIA SEAL DISC KIT (6'-10' DIA FANS, 6B-10B BLADES)
62380
72661
60274
72051
72330
73722
73623
3104
H3100
3105
H3150
3106
H3110
3204
H3200
3205
H3250
3206
H3210
8 10 12
8 10 12
16 20 24
16 20 24
4 3 3
4 3 3
4 3 3
1 1 1
4 5 6
NOT SOLD SEPARATELY.
OPTIONAL, BUT STANDARD WITH "W" BLADES
QTY. PER ASSEMBLY
12 RETAINER RING REMOVAL TOOL 62379 1 1 1
81100
INCLUDES ALL HARDWARE (316 SS) TO ASSEMBLE & MOUNT
TUF-LITE BLADE (BLACK)
R
(VARIES)
13
4 5 6
38" DIA SEAL DISC KIT (6'-12' DIA FANS, 6C-10C, 6D-10D & 11B-12B BLADES)
53" DIA SEAL DISC KIT (13'-16' DIA FANS, 13W-16W BLADES)
81105
81114
42" DIA SEAL DISC KIT (11'-14' DIA FANS, 11W-12W & 13B-14B BLADES) 81110
11A
K2200
OLD STYLE SEVERE DUTY BLADE RETAINER ASSEMBLY CONSISTING OF:
1 - SEVERE DUTY BLADE RETAINER (P/N 65289)
2 - CAP SCREWS 3/8-16x2 (P/N 53622)
1 - BLADE RETAINER SPACER (P/N B3246)
1 - SEVERE DUTY BLADE RETAINER (P/N D3261)
2 - CAP SCREWS 3/8-16x2 1/4 (P/N 69934)
2 - LOCK WASHERS 3/8 (P/N 73222)
2 - LOCK WASHERS 3/8 (P/N 73222)
NEW STYLE SEVERE DUTY BLADE RETAINER ASSEMBLY CONSISTING OF:
K2202
11B
OR
**Optional, but standard with “W” blades
*** Not sold separately
To Next Page
