Front and Rear Refl ector Installation
g 12
11
7
Testing Seat Clamp and Post Clamp Tightness
To test the tightness of the seat clamp and the post clamp:
WARNING: Every time the quick release mechanism is loosened, make sure
the red refl ector is correctly positioned.
• Try to turn the seat side-to-side and to move the front of the seat up and down.
• If the seat moves in the Seat Clamp (A) (fi g 09):
• Loosen the Seat Clamp (A).
• Put the seat in the correct position and tighten the Seat Clamp tighter than be-
fore.
• Do this test again, until the seat does not move in the Seat Clamp.
• If the Seat Post (10) moves in the Seat Tube (B):
• Move the Quick Release Lever (D) to the “open” position.
• Put the seat in the correct position and tighten the Quick Release Lever tighter
than before.
• If necessary, loosen Quick Release Lever, tighten Adjusting Nut (F) and re-tight-
en Quick Release Lever.
• Do this test again, until the seat post does not move in the seat tube.

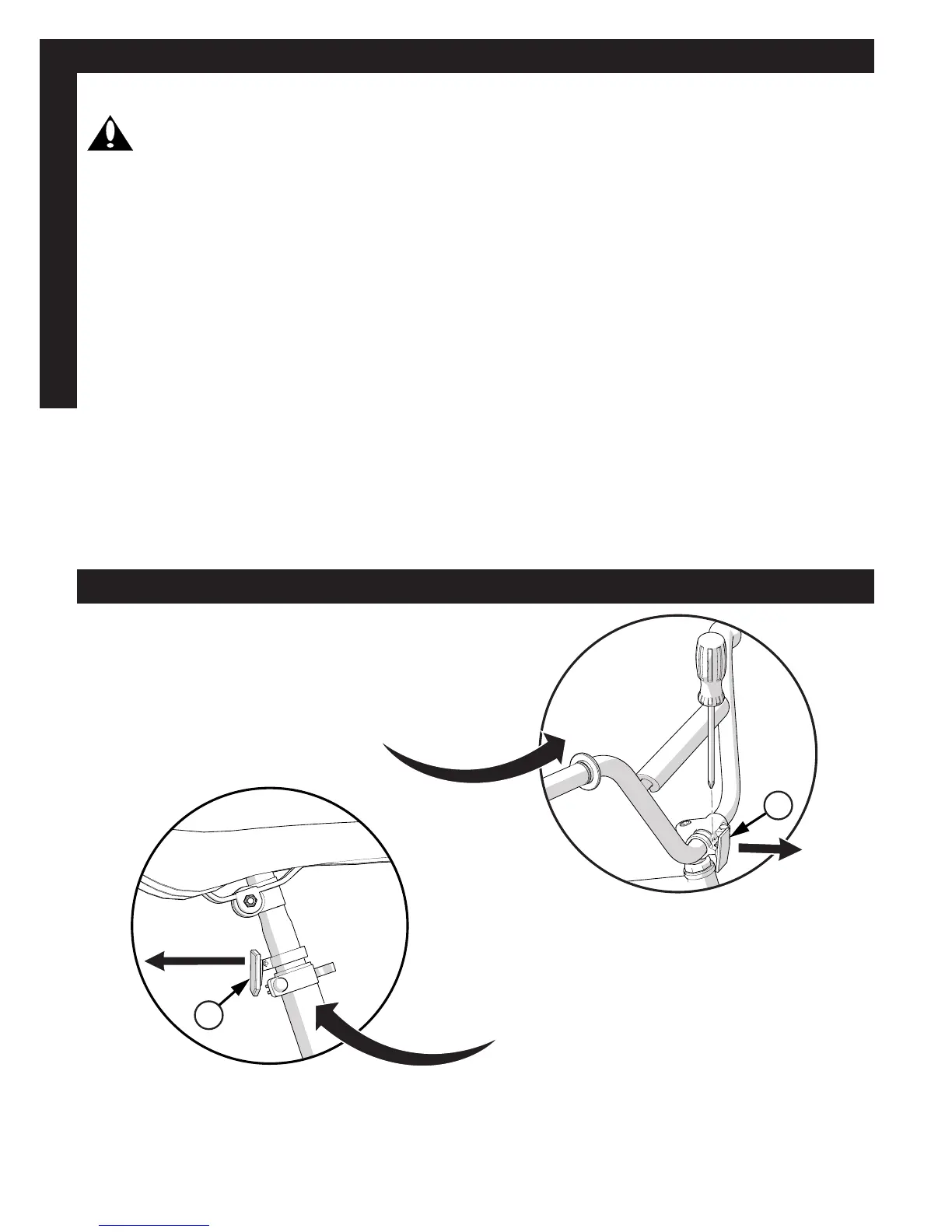

1. Position REAR Refl ector (11) so it
points straight backwards.
2. Tighten Clamp Screw.
NOTE: Do not over-tighten. This will
damage the Clamp.
1. Position FRONT Refl ector (7) so it
points straight forward.
2. Tighten Clamp Screw.
NOTE: Do not over-tighten. This will
damage the Clamp.
Bicycle Assembly
