Huffy Pro Image Rim User Manual

11/03 P/N 211644
11
11
65
6
10.

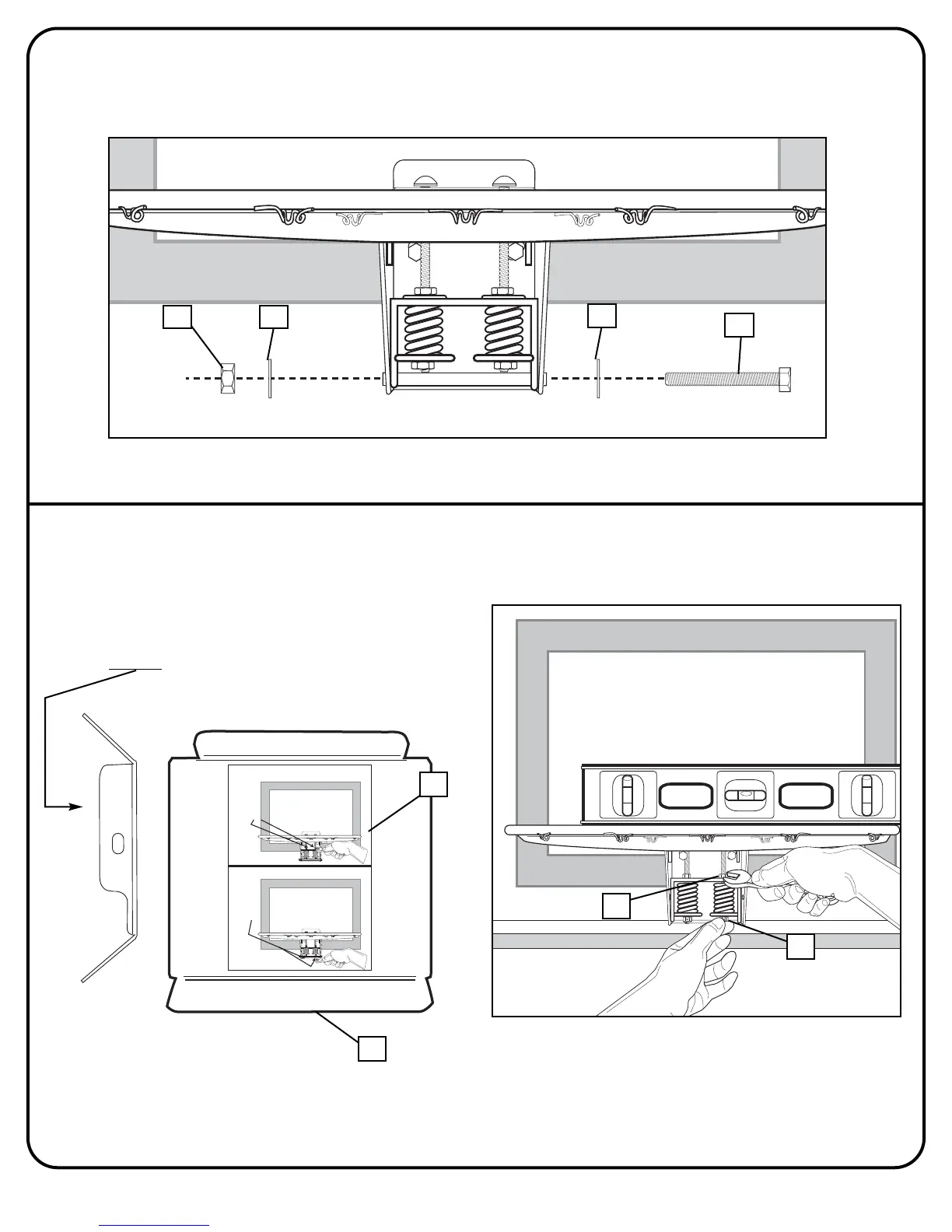

Then, install bolt (11), washers (6), and nut (5) through spacer (10)
and tighten completely.
LEVELING AND TENSION
ADJUSTING INSTRUCTIONS:
Place level on rim (1) and adjust nut (20) until
level. Tighten nut (21) to set rim tension for
playing.
11.
21
20
TO LEVEL RIM,
TIGHTEN OR LOOSEN THESE NUTS
202531
TO ADJUST RIM TENSION ,
TIGHTEN OR LOOSEN THESE NUTS
23
Adhere leveling and tension adjusting label
(23) to inside
of rim cover plate (15).
15
