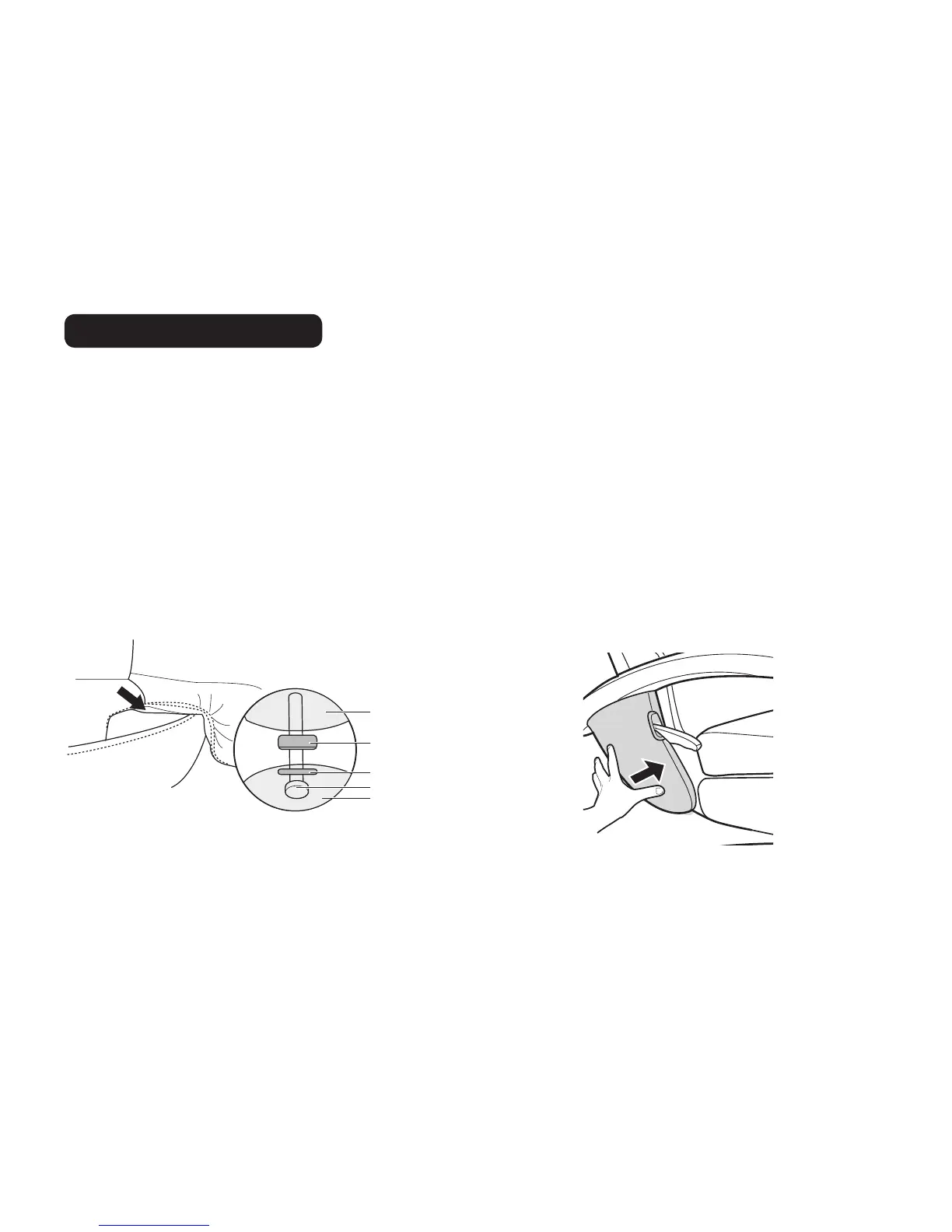

INSTALLING THE NEW BACKREST
1. Place the new backrest into position, face-down on the chair base.
2. From the outside of one of the side panels, insert the hinge pin through the hole, just until it is visible on the inside of the side panel.
3. Place the two spacers into position on the inside of the side panel, with the smaller spacer between the larger spacer and the side panel, then push the
hinge pin through both spacers (Fig.7).
4. Use your fingers to line up the bracket in the side of the backrest and the hinge pin; you will need to pull up slightly on the lower part of the backrest to
properly align the hinge pin with the bracket.
5. Insert the hinge pin as far into the bracket as possible, then use a small hammer to install it completely into the bracket.
6. Secure the hinge pin to the side panel using a Phillips-head screwdriver and the screw you removed earlier.
7. Replace the side panel cover, by aligning the plugs on the inside of the cover with the corresponding holes on the chair, then pushing the cover firmly
into place (Fig.8).
Hinge pin
Side panel
Smaller spacer
Larger spacer
Backrest
(Fig.7)
(Fig.8)
3
