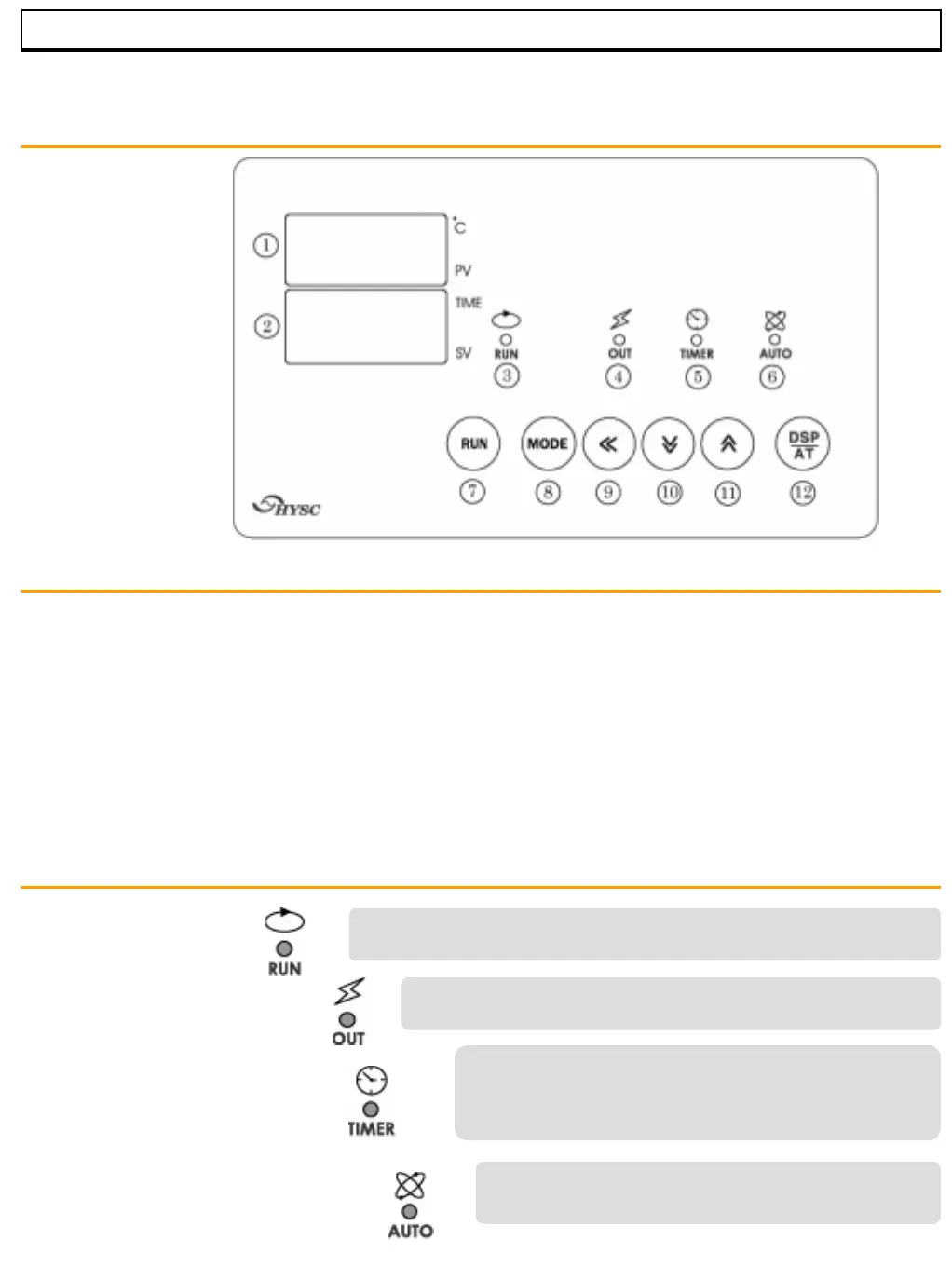

(1) Functions and Features of the control panel
⑫ DSP Auto tuning key (AUTO)⑥ Displays Auto Tuning is functioning.(AUTO)
⑪ Increase value key (△)⑤ Displays the timer is working (TIMER)
⑩ Decease value key (▽)④ Displays the heater is operating (OUT)
⑨ Digit position movement key (◁ )③ Displays the system is running (START)
⑧ Parameter setting key (MODE)② Displays set temperature & data of each mode
⑦ Start/Stop running key (RUN)① Displays actual oven
temperature & each mode
5. Controls
(2) ) Indicator lights
Will be lit when the system is running/ Turns off when it stops running
Will be lit when the heater is operating.
Begins flashing until set temperature is reached.
After set temperature is reached, it will be lit. Turns
off at the end of set time. (If timer set is 00:00, it
will not be lit.)
Begins flashing during Auto tuning. Turns off at the
end of Auto tuning. .
MUFFLE FURNACE
