Operation: body
131
Ramp planks
1
2
3
4
5
6
7
8
Positioning the ramp planks
There are 2 securing rails along the
loading platform edge. The securing
hook under the run-on plate of each ramp
plank are slotted into these securing rails
and secured.
Position the ramp planks with
the locking lever facing outwards
on the securing rail.
The ramp planks must be
centrally positioned on the
securing rails.
The dead weight of the ramp
planks is approx. 31 kg. If
necessary, have 2 workers lift
the ramp planks.

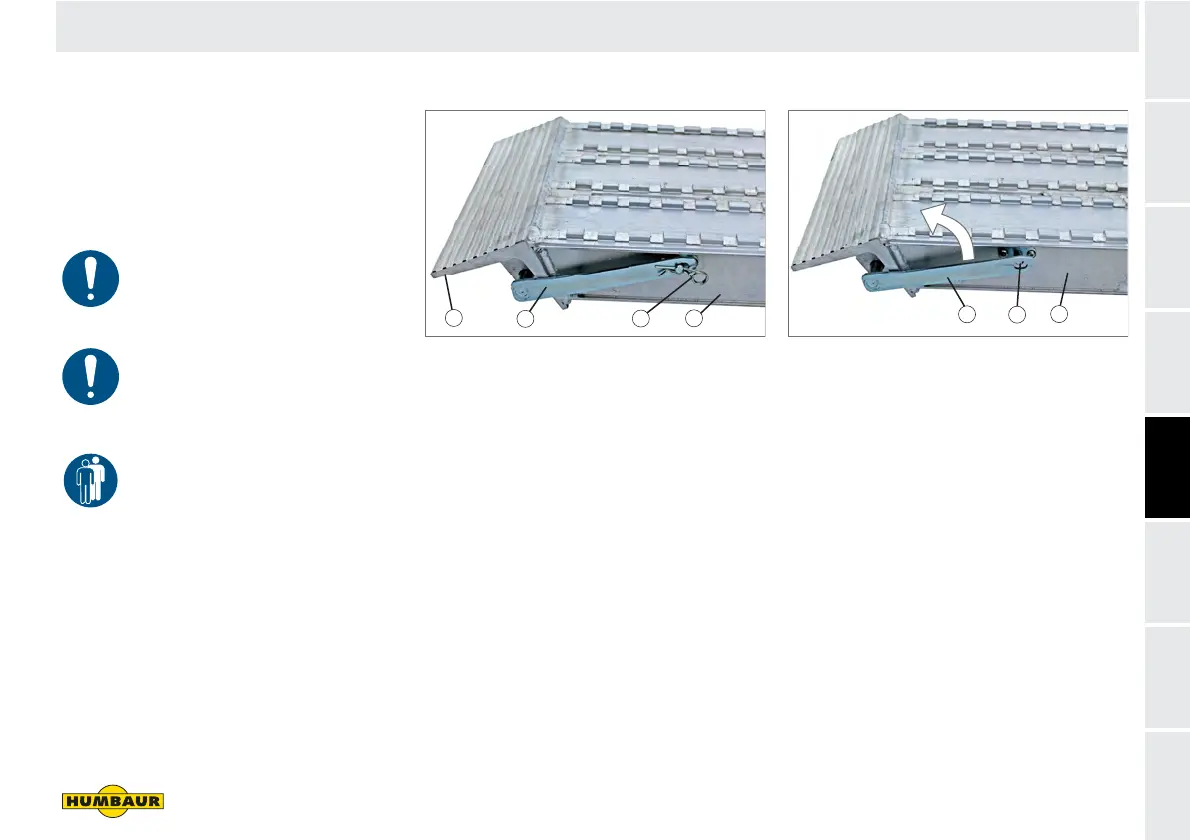

Fig. 12 Opening the locking lever
1 Run-on plate
2 Locking lever
3 Spring pin
4 Ramp plank
Pull the spring pin (Fig. 12/3) out of the
retaining bolt (Fig. 13/2).
The locking lever is released.
Fig. 13 Locking lever unsecured
1 Locking lever
2 Retaining bolt
3 Ramp plank
Swing the locking lever (Fig. 13/1)
upwards.
1
2
3
4
1
3
2
