Load distribution / Max. weights
48
Operation
3

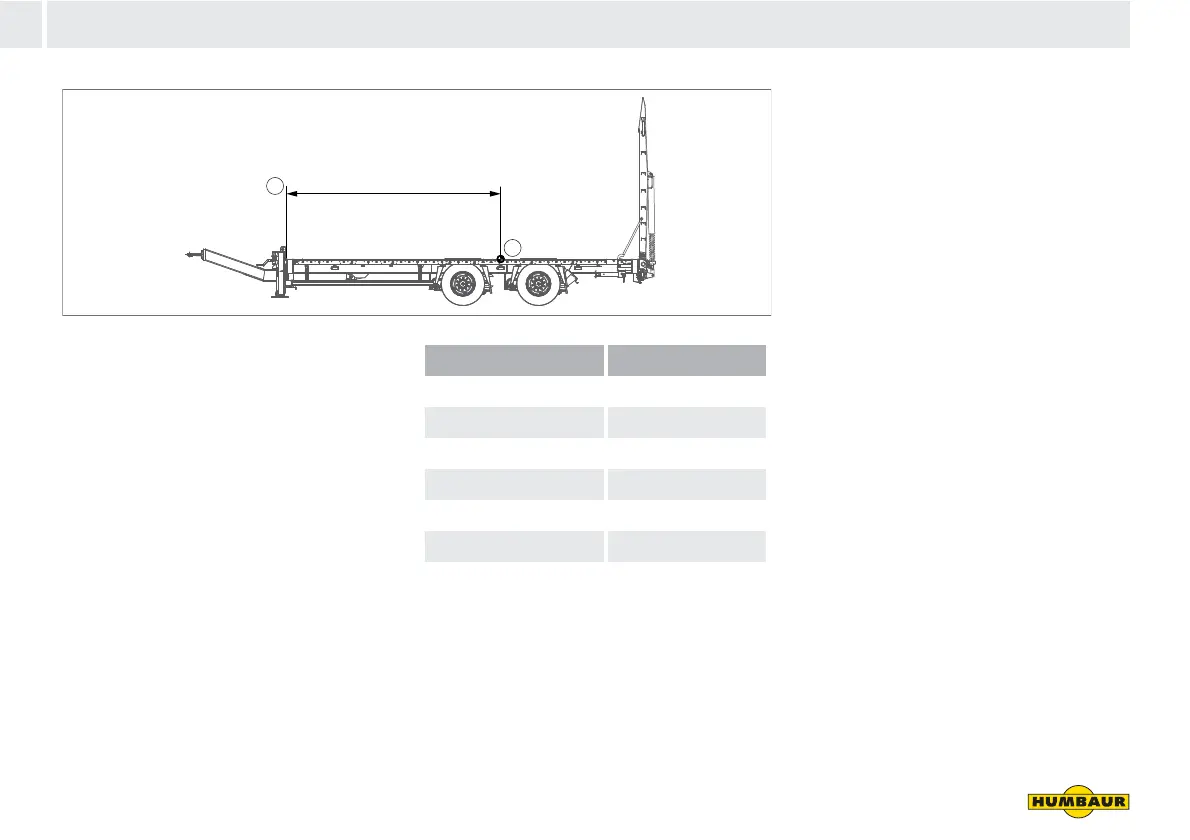

Fig. 10 Example 19 t - load distribution plan
1 Distance of the load centre of gravity from
the loading platform front wall
2 Centre of gravity of the load
Tab. 3 Example - HBTZ BS 19 t
(straight loading platform)
1
2
Loads Max. weights
Perm. total weight 19,000 kg
Axle 1 (A1) 11,000 kg
Axle 2 (A2) 11,000 kg
Drawbar load (S) 1,000 kg
Unladen weight 5,300 kg
Payload 13,700 kg
