Operation
47
Load distribution / Max. weights
1
2
3
4
5
6
7
8

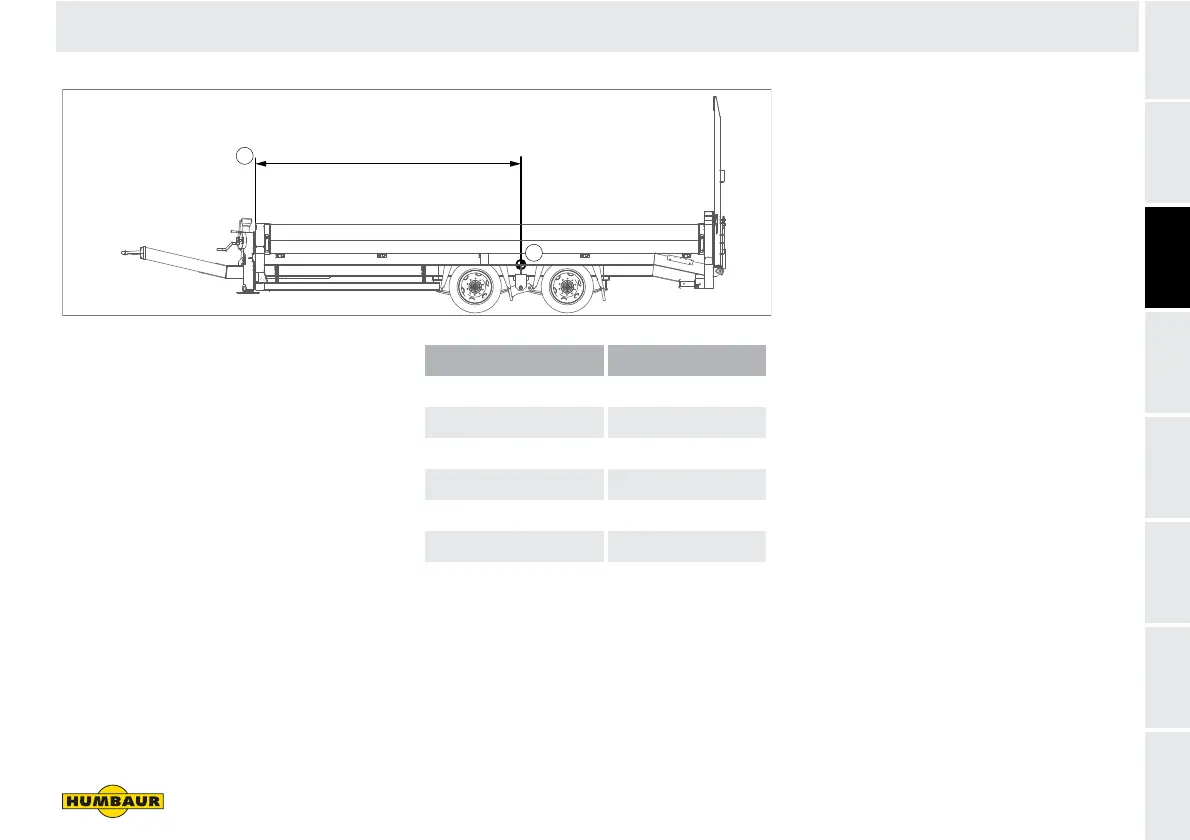

Fig. 9 Example 13 t - load distribution plan
1 Distance of the load centre of gravity from
the loading platform front wall
2 Centre of gravity of the load
Tab. 2 Example - HBTZ BS 13 t
(sloping loading platform)
1
2
Loads Max. weights
Perm. total weight 13,600 kg
Axle 1 (A1) 7,000 kg
Axle 2 (A2) 7,000 kg
Drawbar load (S) 1,000 kg
Unladen weight 3,600 kg
Payload 10,000 kg
