Load distribution / Max. weights
46
Operation
3

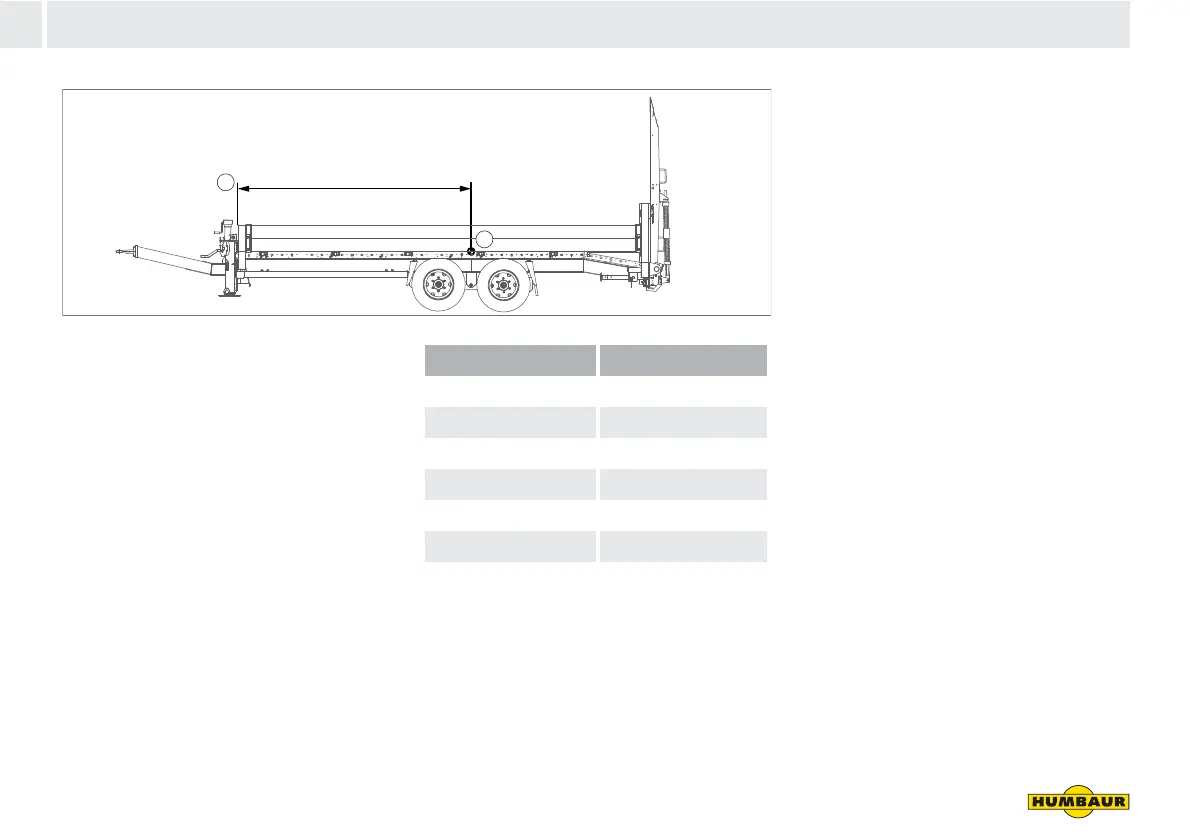

Fig. 8 Example 10 t - load distribution plan
1 Distance of the load centre of gravity from
the loading platform front wall
2 Centre of gravity of the load
Tab. 1 Example - HBT BS 10 t
(sloping loading platform)
1
2
Loads Max. weights
Perm. total weight 10,500 kg
Axle 1 (A1) 5,500 kg
Axle 2 (A2) 5,000 kg
Drawbar load (S) 500 kg
Unladen weight 2,800 kg
Payload 7,700 kg
