Connection element: towing eye
52
Operation
3
Releasing

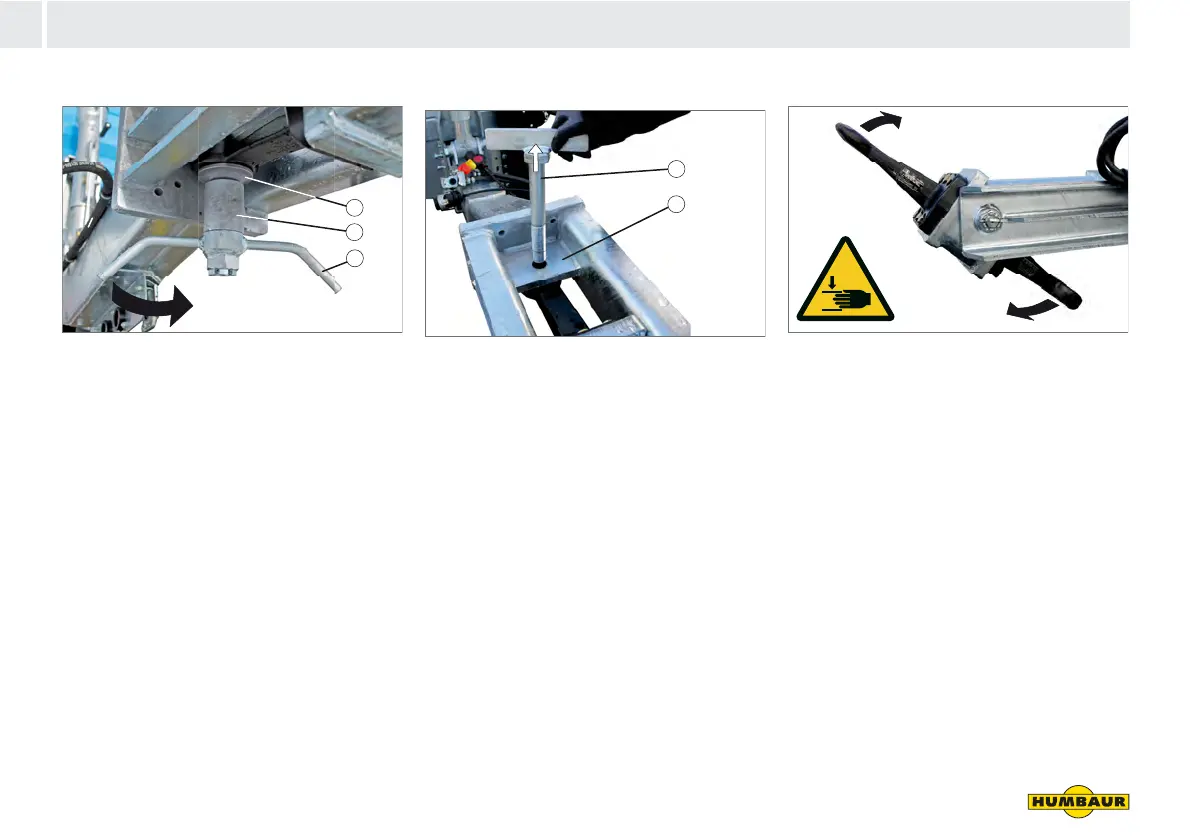

Fig. 18 Towing eye locked at bottom
1 Wing nut
2 Spacer sleeve
3 Shim rest
Unscrew the wing nut (Fig. 18/1)
completely.
Remove the spacer (Fig. 18/2) and the
shim rest (Fig. 18/3).
Fig. 19 Removing fastening bolt
1 Fastening bolt
2 Bracket
Pull out the fastening bolt (Fig. 19/1).
Remove the fastening elements.
Rotating
Fig. 20 Rotating the towing eye
Turn the towing eye carefully.
The towing eye with D40 mm is placed
on top of the holder.
B - 021
2
1
3
1
2
B - 023
