Operation: chassis
81
Duo-Matic quick-release coupling (option)
1
2
3
4
5
6
7
8
Uncoupling

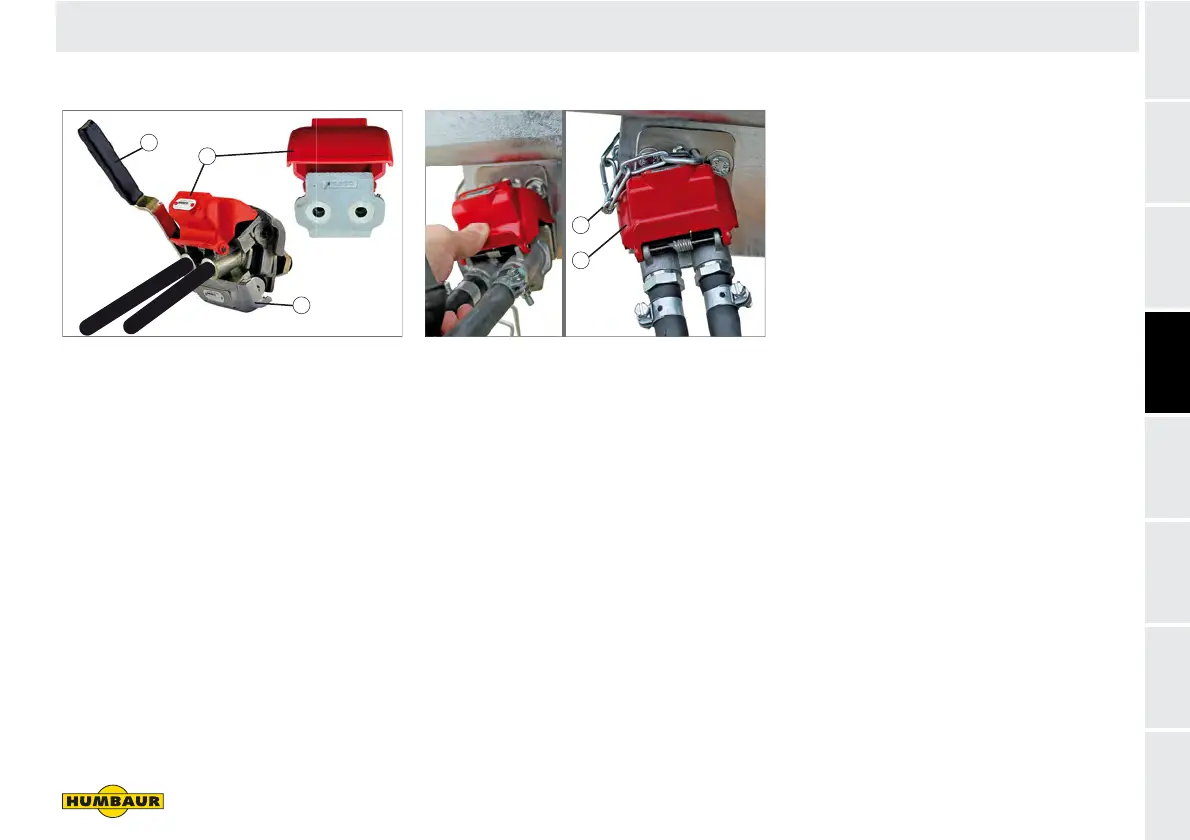

Fig. 21 Duo-Matic, uncoupled
1 Handle
2 Quick-release coupling on the towing
vehicle
3 Duo-Matic coupling head
Pull the handle (Fig. 21/1) of the Duo-
Matic quick-release coupling socket
upwards and pull out the coupling
head (Fig. 21/3) from under the
protective cover.
The connection is disconnected.
The cover plate automatically closes
the coupling head and protects it from
contamination and damage.
Parking
Fig. 22 Duo-Matic, parked
1 End cap, Duo-Matic coupling
2 Securing chain with spring pin
Park the Duo-Matic quick-release
coupling on the park console.
Insert the spring pin (Fig. 22/2) into the
bore holes.
The Duo-Matic coupling is secured
against falling down.
1
2
3
2
1
