SUT

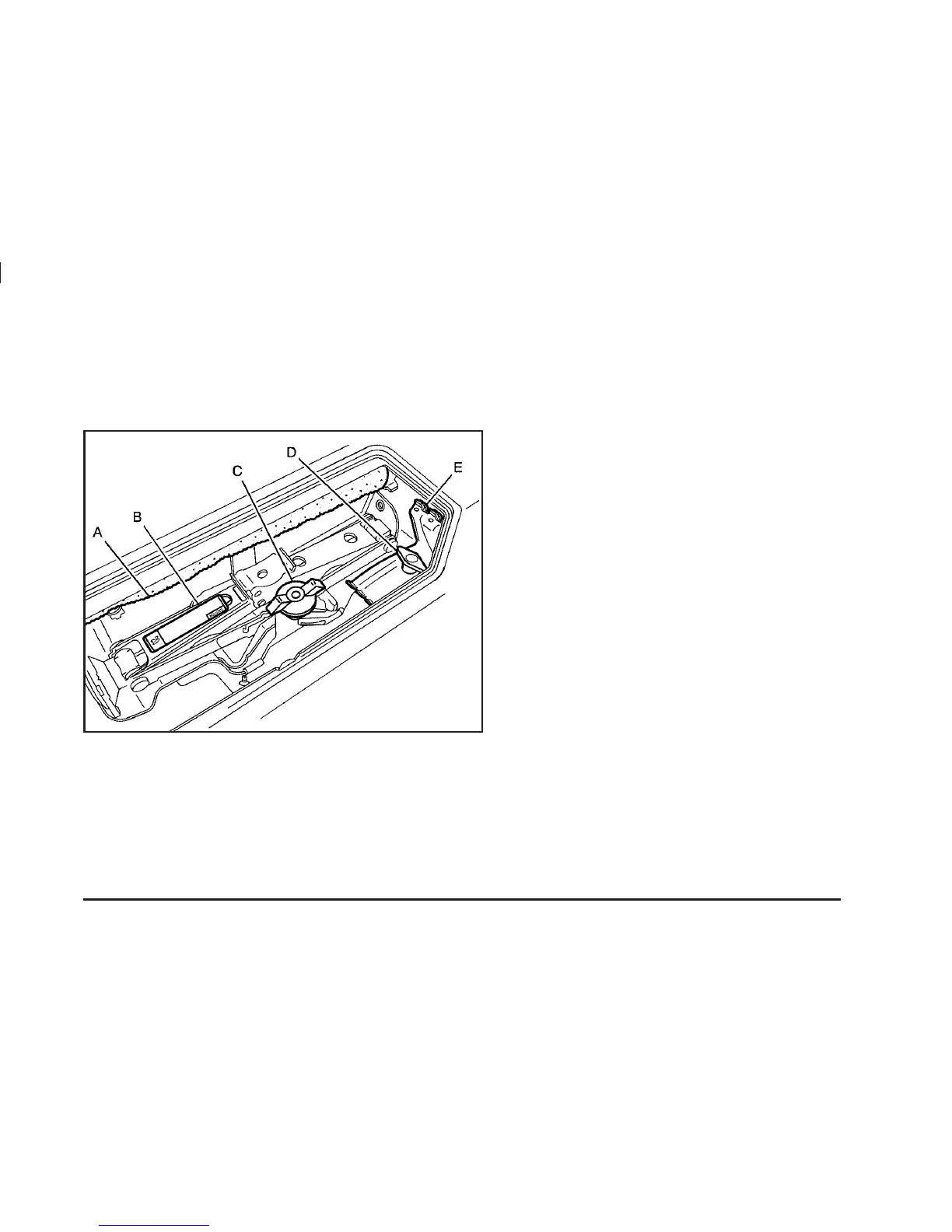

Follow these instructions to store the jack and tools:
1. Lower the jack completely.
2. Place the jack (B) in the mounting bracket in the
rear cargo compartment.
3. Tighten the wingnut (C) until the jack is
securely fastened.
In order to reduce the potential of the jack
squeaking or rattling, you will need to preload the
jack so it fits tightly in the mounting bracket.
To do this, turn the u-hook/clevis at the top of the
jack clockwise until the jack is held tight in the
mounting bracket.
4. Place the wheel blocks (E) onto the mounting stud
and tighten the wingnut (D) to secure them.
5. Place the tools in the tool bag (A), roll the bag
together tightly and neatly and then close it with
the hook and loop fasteners.
If you do not roll the tool bag tightly and neatly, you
will have trouble getting it back into the storage
retention clips in the next step.
5-89
