6. SET UP THE LIGHTNING SYSTEM
6.2 SET UP THE RUDDER SIGNAL
The following instructions ensure that the LCU sensor interprets the streering of
the boat correctly. To set up the steering do the following:
• Calibrate the Port side Rudder Signal
• Calibrate the Starboard side Rudder Signal
• Calibrate the center position of the rudder

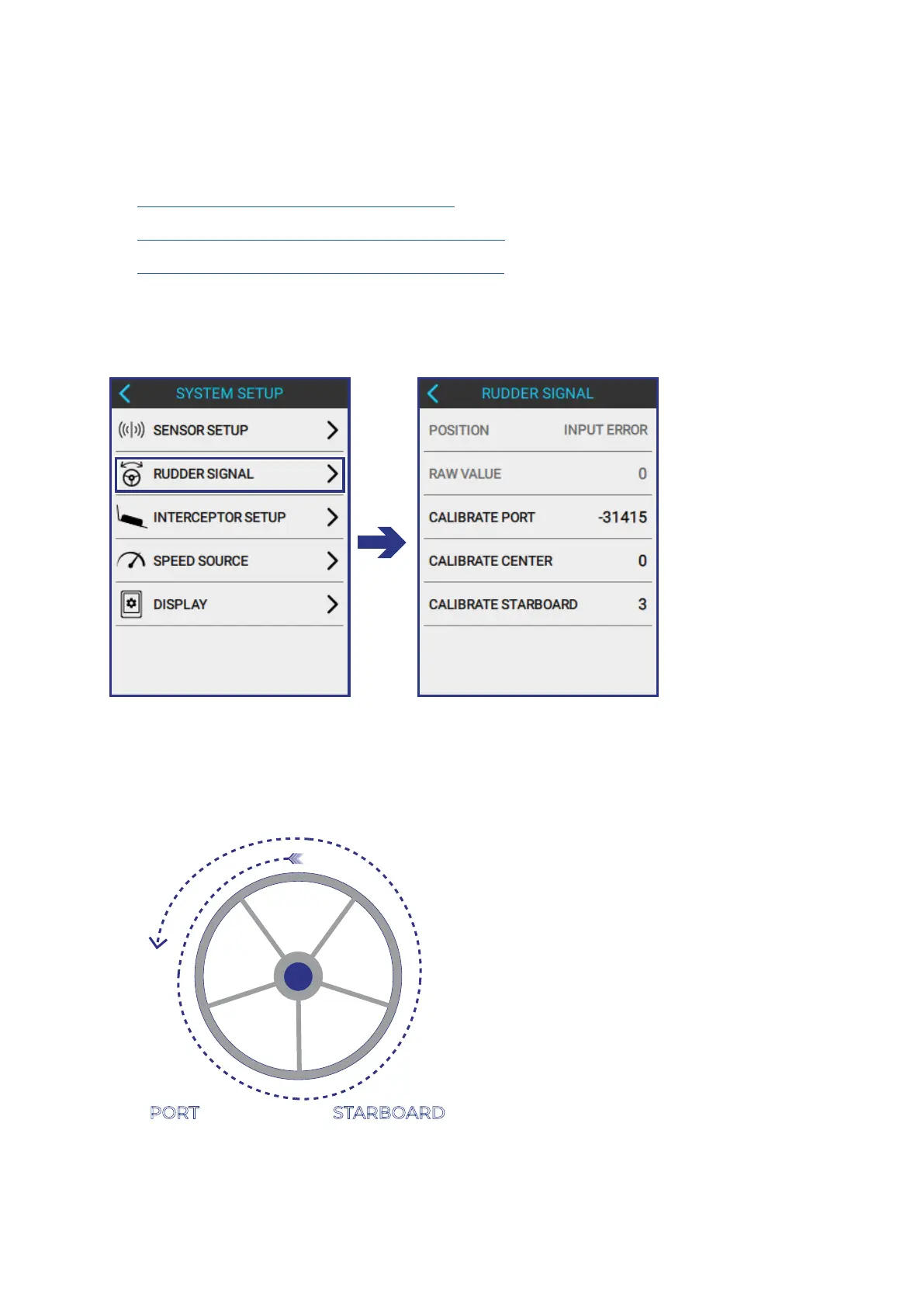

To open the RUDDER SIGNAL screen, do the following:
SYSTEM SETUP > RUDDER SIGNAL
6.2.1 CALIBRATE PORT SIDE RUDDER
1
TURN THE RUDDER FULL PORT, by turning the steering wheel of the boat
toward port until the wheel stops and hold the position.
PORT
STARBOARD
