4. INTERCEPTOR MOUNTING GUIDELINES
a = 0°
a = 10°
p = 4.5 mm
a
p

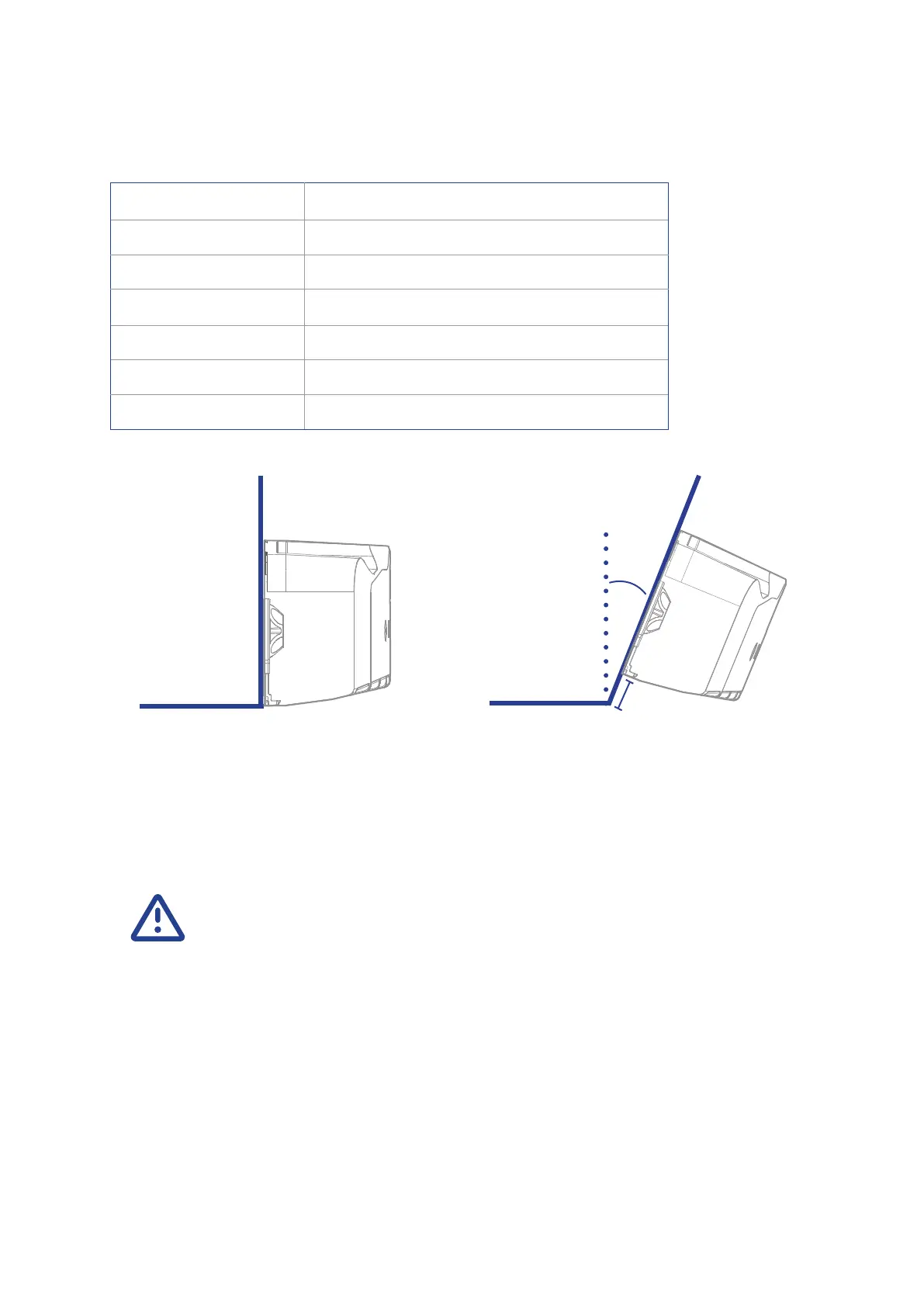

4.4.3 INTERCEPTOR PLACEMENT WHEN THE TRANSOM ANGLE IS KNOWN
If the transom angle is known, place the interceptor according to the following
table:
Transom Angle (a)
Placement above the hull bottom (p)
0° 0 mm
5° 1.5 mm
8° 2.5 mm
13° 7.5 mm
10° 4.5 mm
15° 9.5 mm
13° 7.5 mm
IMPORTANT!
When the interceptors are mounted above the hull transom an
interceptor blade oset calibration is mandatory. Failure to calibrate
the interceptor blade oset might induce unwanted boat roll when
using automatic control functions!
Please see section INTERCEPTOR OFFSET CALIBRATION in the Setup
Manual!
