Humphree Lightning - Interceptor Placement; Vertical Transom; Angled Transom

15
4. INTERCEPTOR MOUNTING GUIDELINES
For angled transoms, do not place the interceptor level with the hull bottom.
Incorrect interceptor placements does the following:
• Aects vessel movement even when the blade is retracted.
• Causes unnecessary wear on the interceptor.
IMPORTANT!
90°
WATER FLOW

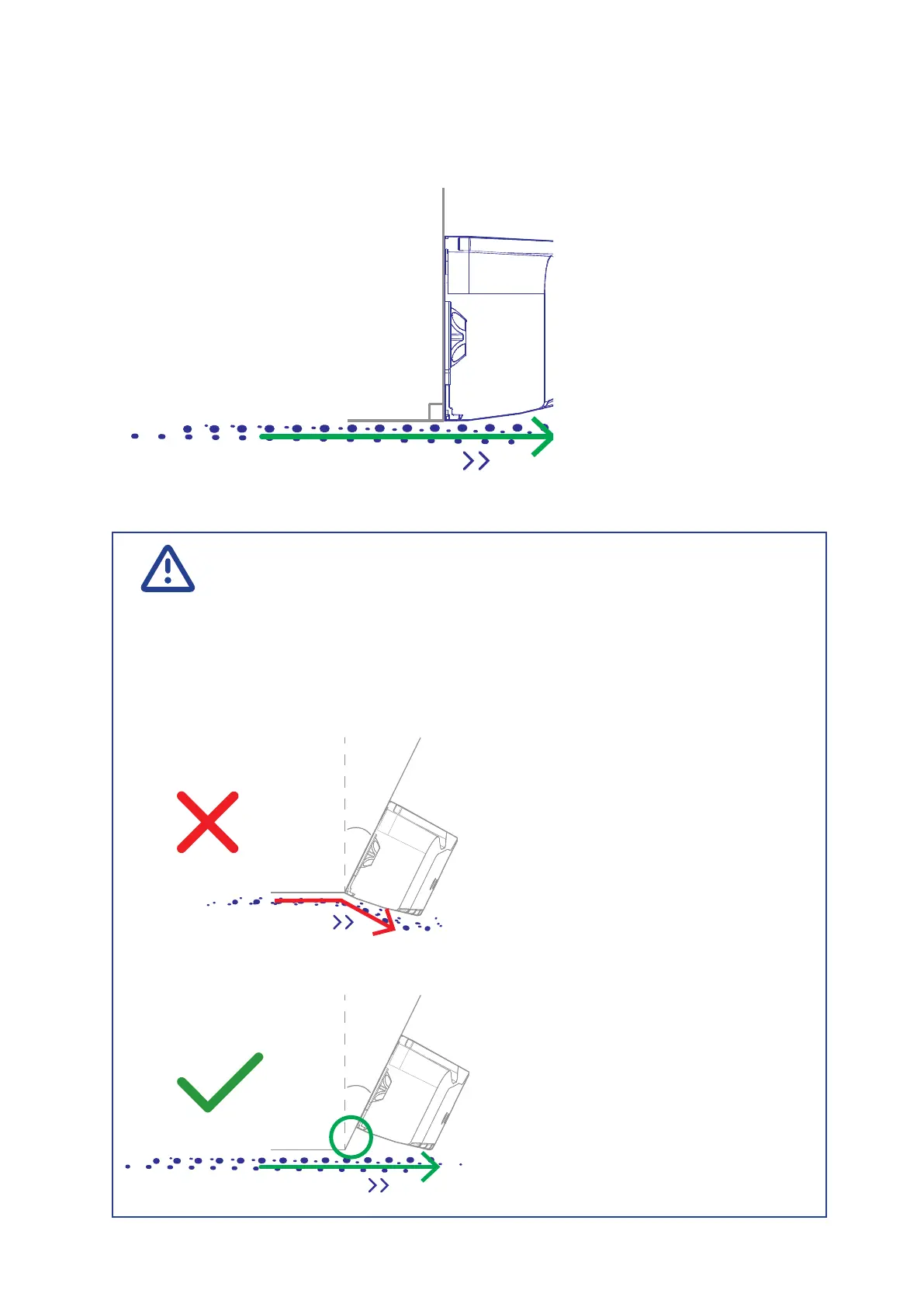

4.4 INTERCEPTOR PLACEMENT
4.4.1 VERTICAL TRANSOM
For vertical transoms, place the interceptor level with the hull bottom.
4.4.2 ANGLED TRANSOM
WATER FLOW
WATER FLOW
