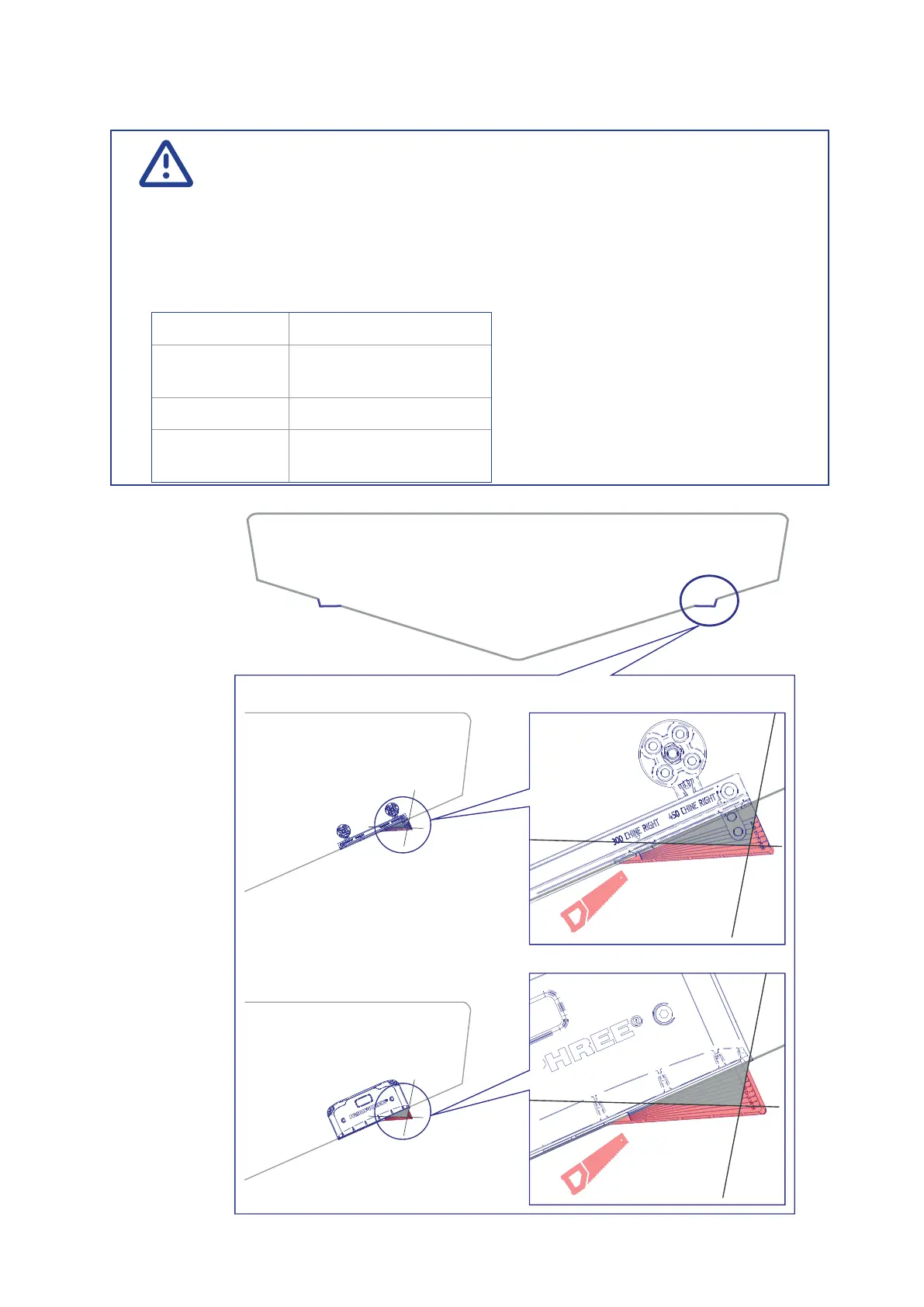

4. INTERCEPTOR MOUNTING GUIDELINES
4.5 INTERCEPTOR BLADE ADJUSTMENT (CHINE ONLY)
Chine models require a chine add-on to the interceptor bracket.
• Attach the chine add-on to the interceptor bracket before mounting the
bracket on the transom.
• Mount the interceptor bracket add-on according to the following guidelines:
Chine Angle Drill Hole
under 8°
no chine add-on
needed
8 - 16°
use the top drill hole
over 16°
use the botom drill
hole
CHINE TYPE 1
IMPORTANT!
1
2
