12
42672-01 • 03/02/11 • Hunter Fan Company

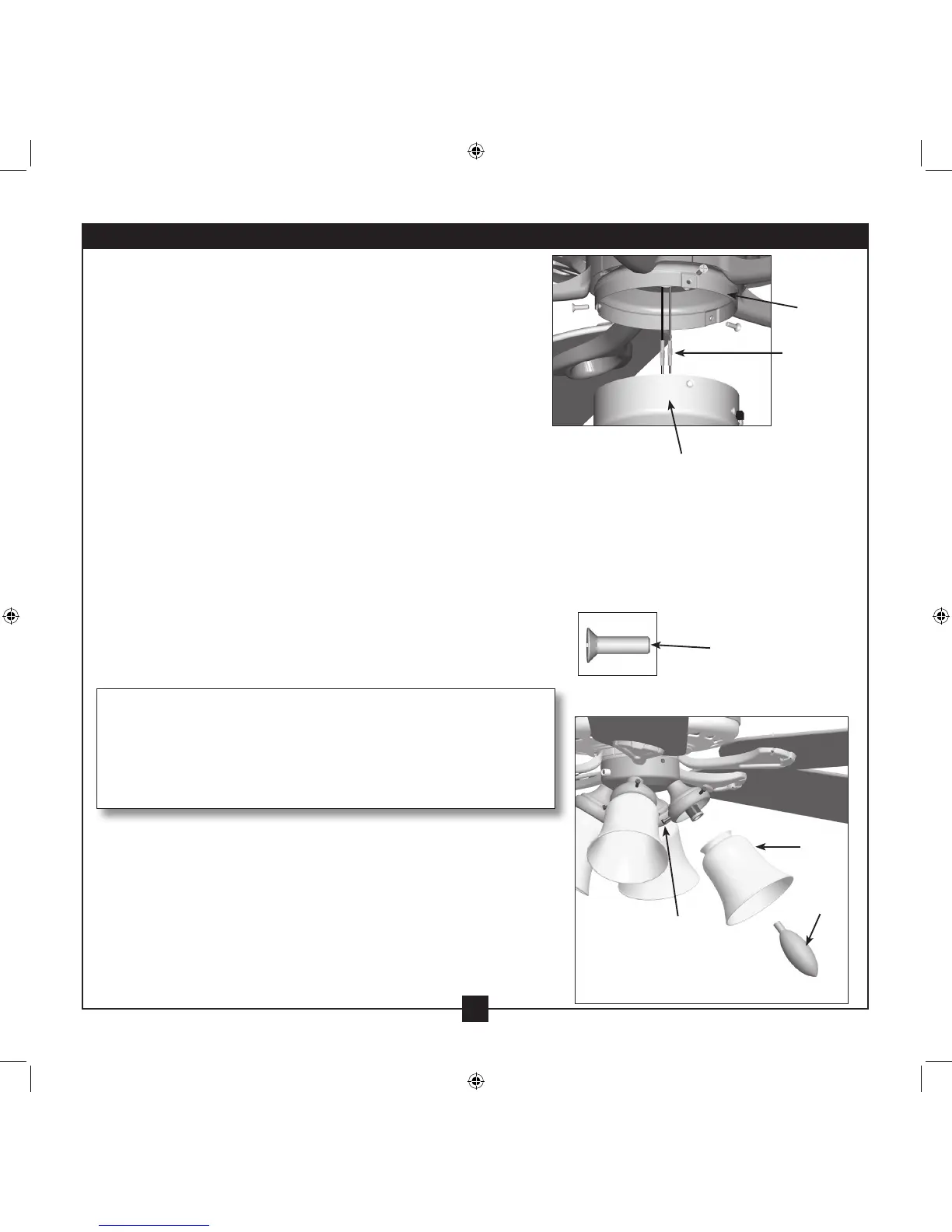

7-1. Connect the white wire from the lower switch housing to the
white wire from the fan. Connect the black/white wire from the
lower switch housing to the black wire from the fan.
Note: Both plug connectors are polarized and will only t together
one way. Make sure the connectors are properly aligned before
connecting them. Incorrect connection could cause improper
operation and damage to the product.
7-2. Place the lower switch housing assembly over the upper switch
housing. Align the side screw holes in the upper and lower
switch housings. Attach the lower switch housing to the upper
switch housing with three housing assembly screws.
7-3. To install each shade, rst loosen the three thumbscrews.
7-4. Raise the shade to the light xture. Tighten the thumbscrews
securely.
7-5. Install B10 candelabra-based light bulbs (60 Watt maximum
each).
Note: Glass shade style and number of lights may vary.
Steps 7-4 – 7-5
umbscrews
Shade
Bulb
7 • Completing Your Installation With a Multi-Staked Light Fixture
Lower
Switch
Housing
Upper
Switch
Housing
Connectors
Housing
Assembly Screw
Steps 7-1 – 7-2
Note: In compliance with US federal energy regulations, this
ceiling fan contains a device that restricts its light output.
Exceeding the wattage limit marked on the MAX wattage
sticker axed to the light socket(s) may result in re hazard
or improper operation.
12
