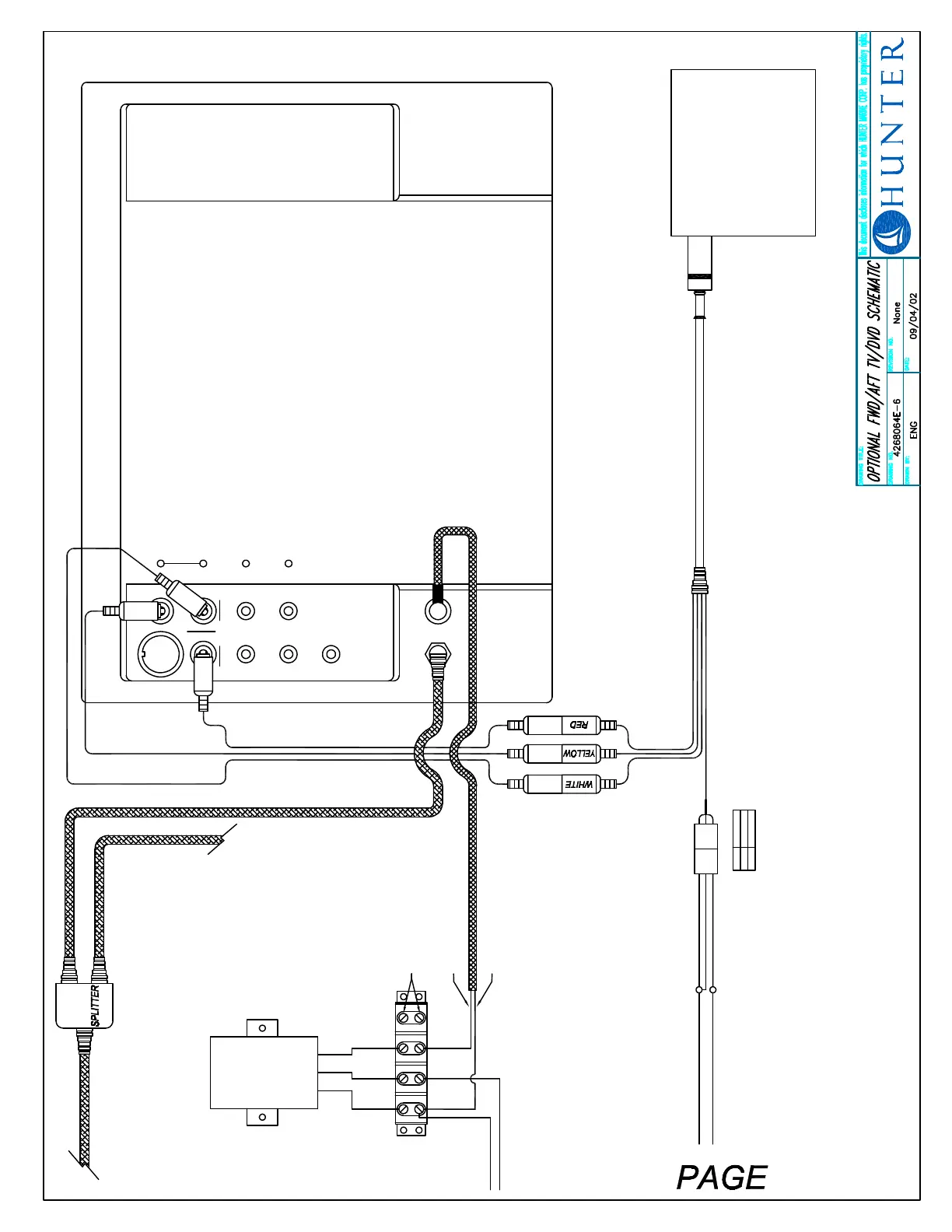

Hunter 44DS - Page 138

64E-6
POWER
INPUT
DC12V
¨¨¨
ANT.
AV-IN1 AV-IN2 AV-OUT
HEADPHONE
AUDIO AUDIO
AUDIO
LR
3-PIN POWER
PIN 1 BATTERY PIN 2 IGNITION PIN 3 GROUND
DVD PLAYER
10" FLAT SCREEN MONITOR
NOISE
FILTER
FROM CABLE SOURCE
2-WAY
RED
BLUE
BLACK
TO MAIN TV
BLACK
GREEN/WHITE ORANGE/WHITE
14 ga YELLOW
14 ga RED/GREEN
14 ga YELLOW
CENTER CONDUCTOR OUTER SHIELD NOT USED
14 ga RED/YELLOW
