THE MACERATOR MOMENTARY SWITCH IS PROVIDED TO PROHIBIT THE "DRY RUNNING" OF THE MACERATOR. TO OPERATE THE
MACERATOR, TURN THE MACERATOR BREAKER TO THE "ON" POSITION. WHILE EITHER WATCHING THE WASTE TANK LEVEL
INDICATOR, OR LISTENING TO THE PITCH OF THE PUMP, PUSH THE MOMENTARY SWITCH IN. THIS WILL ACTIVATE THE MACERATOR.
ONCE THE TANK LEVEL INDICATOR REACHES "EMPTY", OR THE PITCH CHANGES NOTICABLY, RELEASE THE MOMENTARY SWITCH AND
TURN THE BREAKER TO THE "OFF" POSITION. NOTE: OCCASIONALLY THE TANK SENDING UNIT BECOMES NON FUNCTIONAL,
THEREFORE IT IS MORE EFFECTIVE AND SAFER FOR THE PUMP IF THE OPERATOR USES THE "LISTENING" METHOD TO DETERMINE IF
THE TANK HAS BEEN EMPTIED.

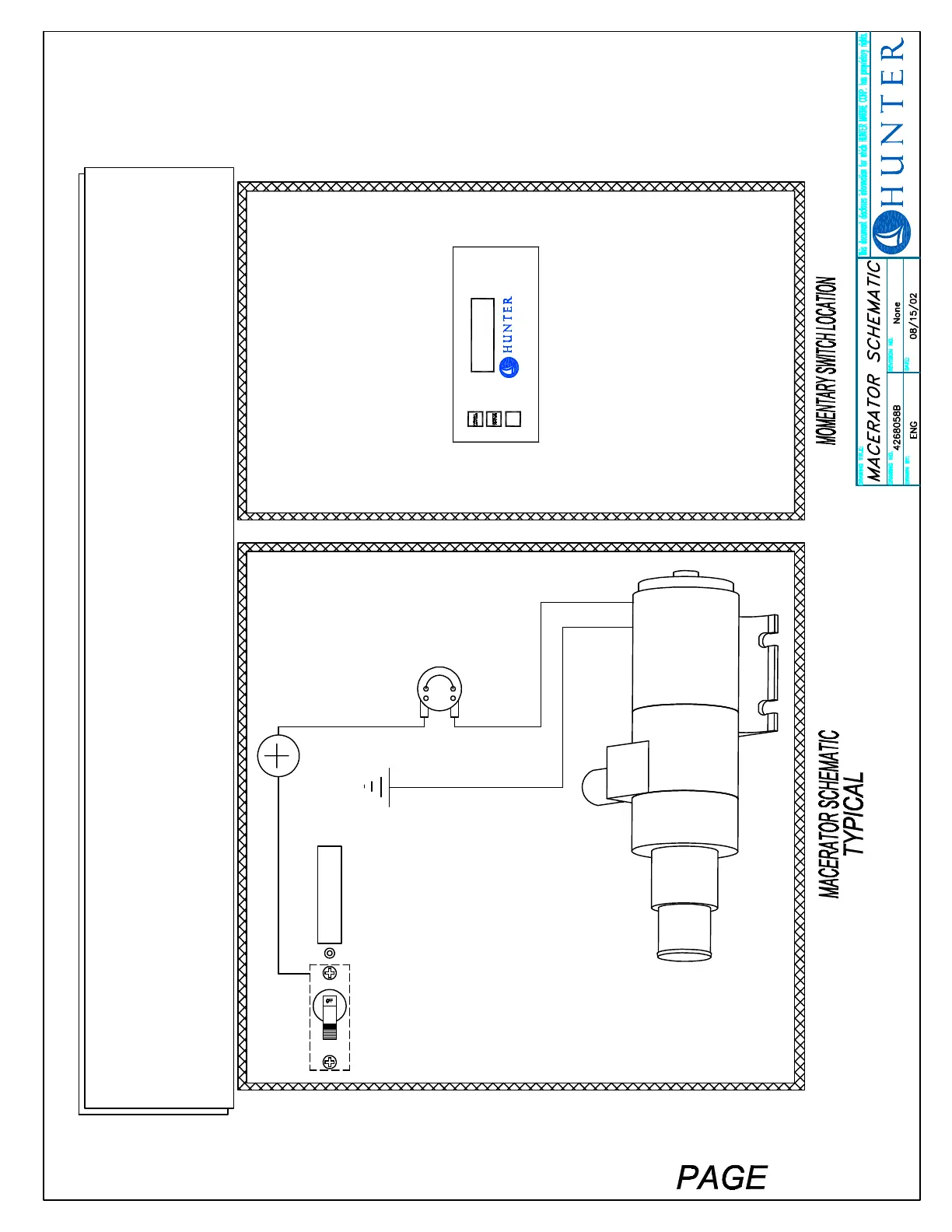

BROWN/WHITE 10 ga. WIRENEGATIVE LEAD TO NEGATIVE BUS BAR
BEHIND MAIN DISTRIBUTION PANEL
12 V.D.C. POS. TO MACERATOR
MACERATOR
MOMENTARY SWITCH
LOCATED NEAR
MAIN ELECTRIC PANEL
(BREAKS POS. LEAD)
(NORMALLY OPEN)
MOMENTARY SWITCH
