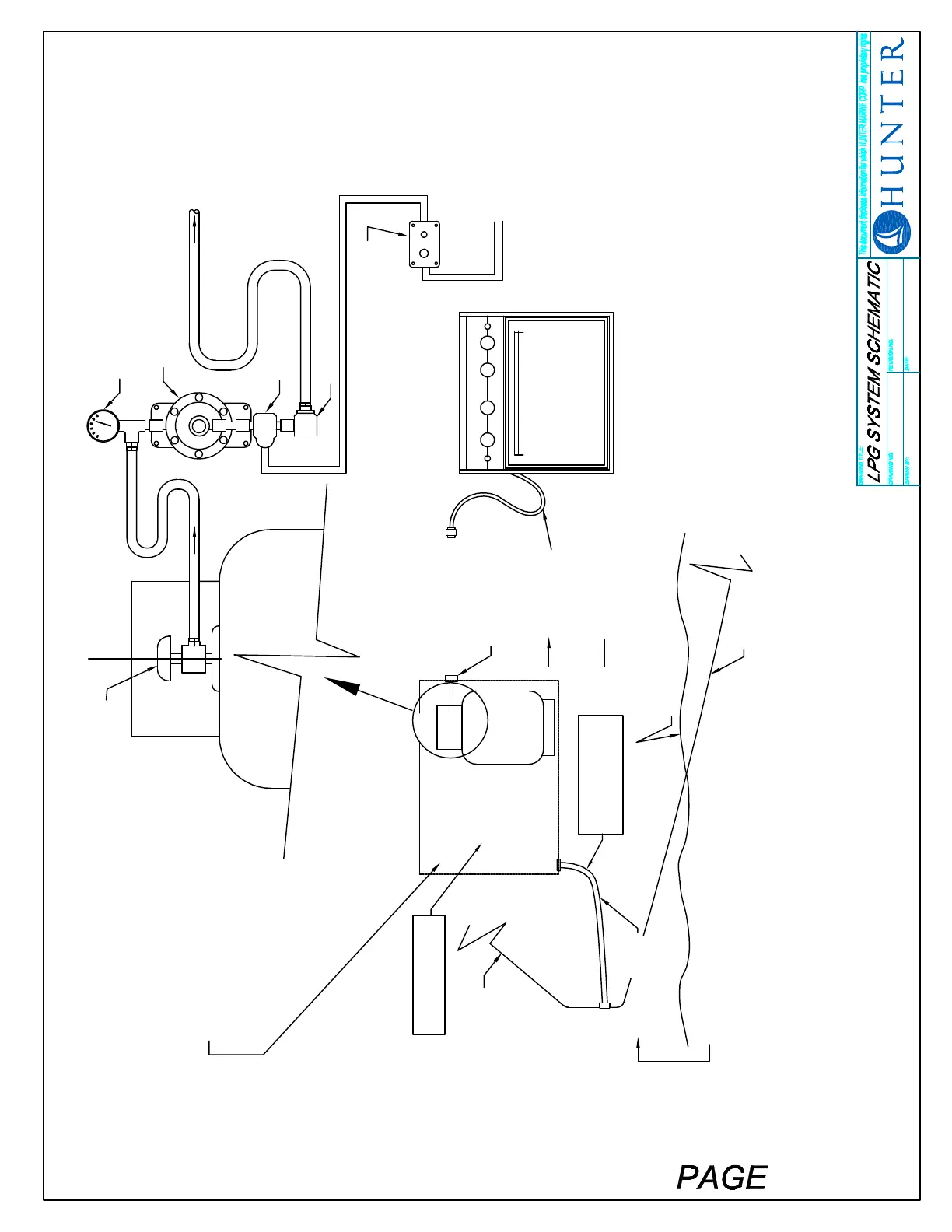

SOLENOID
REGULATOR
MAIN VALVE
BOTTLE
TO STOVE
GIMBALLED
STOVE
ENCL.(LKR)
BOTTLE
VAPOR DRAIN
SEALING
GROMMET
CONTINUOUS LPG
APPROVED HOSE
WATERLINE
TRANSOM
REMOTE CONTROL SHUT-OFF
SOLENOID @ OR NEAR STOVE
HULL
FLEX-HOSE
@ STOVE
FLEX-HOSE @ STOVE MUST
ALWAYS RUN FAIR AND BE
FREE OF KINKS AND CHAFING.
LPG BOTTLE MUST ALWAYS
BE FIRMLY SECURED WITHIN
THEIR ENCLOSURE/LOCKER.
WARNING:
WARNING:
WARNING:
VAPOR DRAIN MUST ALWAYS BE CLEAR
AND CLEAN OF OBSTRUCTIONS CONTIN-
UOUSLY WITHIN AND @ EACH END.
NOTE:
BASIC LAYOUT STILL APPLIES
LOCATIONS VARY IN SOME MODELS
AFT SWIM LOCKER MODEL SHOWN
GAUGE
LPG
GAS FEED OUTLET
FROM TANK
AND VENT
NOTE: THIS DRAIN LINE MUST
NOT HAVE ANY LOW SPOTS OR
DIPS. IT SHOULD BE A
CONTINUOS DOWNHILL RUN.
NOTE: THIS AREA IS PROVIDED
FOR AN ADDITIONAL SECOND
OPTIONAL LPG TANK
62B
4268062B
NONE
TO MAIN ELECTRIC PANEL
