Hunter 50472 - Installing Fan Components; Installing the Blades and Blade Arms

7
8
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Glass/Bulbs
Canopy Screw
Installing the Bulbs and Glass
Installing the Canopy
x2

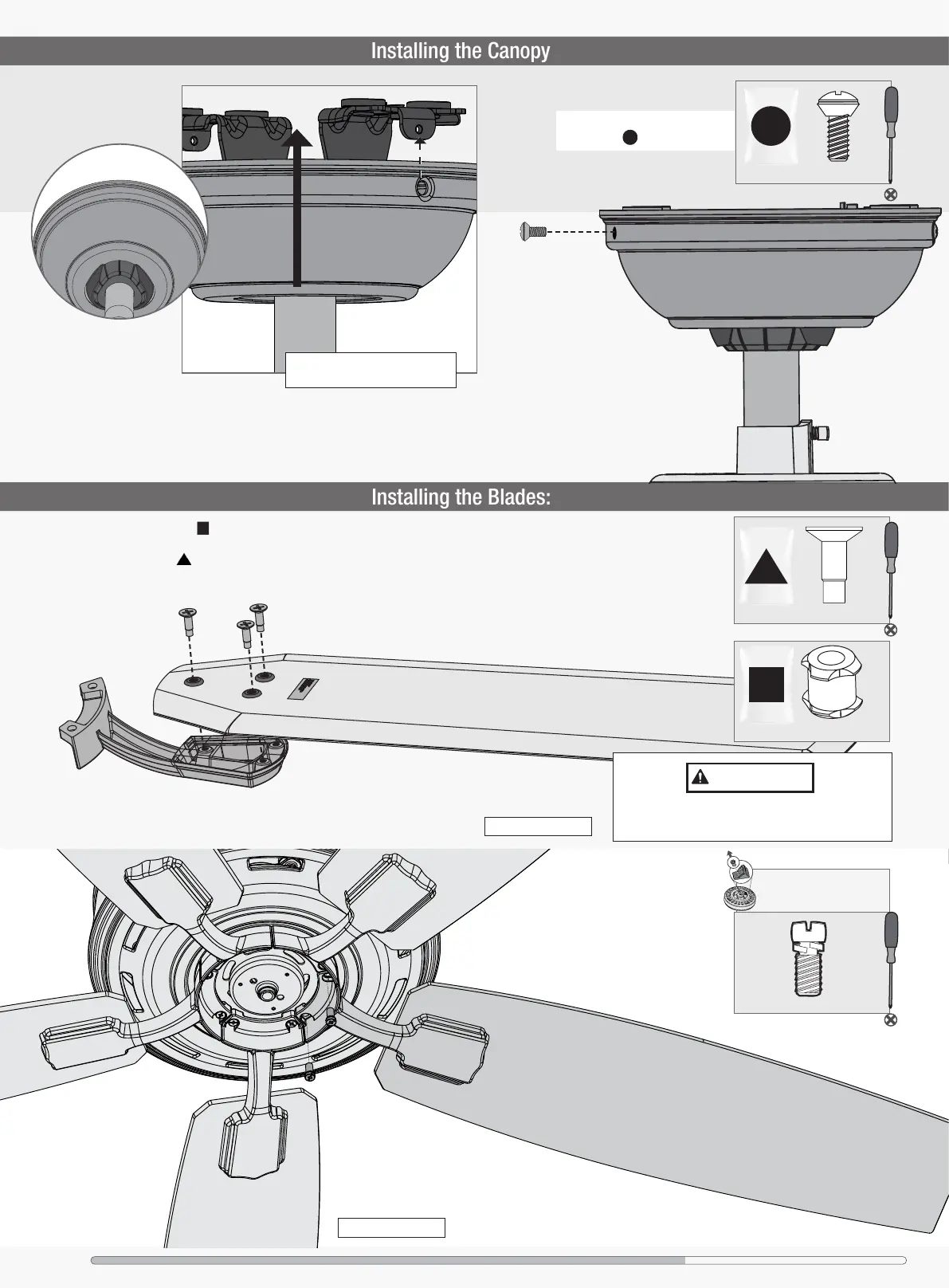

Lift the canopy into place so that
the screw holes are aligned.
Insert the two canopy screws
found in the hardware bag.
F
i
t
t
h
e
c
a
n
o
p
y
i
n
p
l
a
c
e
a
s
s
h
o
w
n
.
bag
x10
Lightly attach the blade arms to the motor with
the blade arm screws, then securely tighten
after both screws are attached.
Repeat x5
Canopy Screw
Blade Arm Screw
Remember the screws that you
kept after removing the shipping
blocks? You need them here.
D
I
S
C
A
R
D
K
E
E
P
!
Fan style may vary.
Note:
Assembling the Light
Installing the Blades:
x15
x15
Insert grommets found in the hardware bag into the
holes in the blades, then secure each blade to a blade arm
with screws found in the hardware bag.
Repeat x5
bag
bag
Blade Screw
Grommet
IMPORTANT
NOTE: Follow the instructions on the blade. Installing it
incorrectly could result in your fan not functioning.
Fan style may vary.
Note:
