Hunter 53310 - Canopy and Blade Installation; Securing the Canopy; Alignment Notice; Attaching Blades to Blade Arms

7
8
1886
1886
Ceiling Bracket Downrod Hanging Fan Wiring Canopy Blades Light Glass/Bulbs
Canopy Screw
Installing the Bulbs and Glass

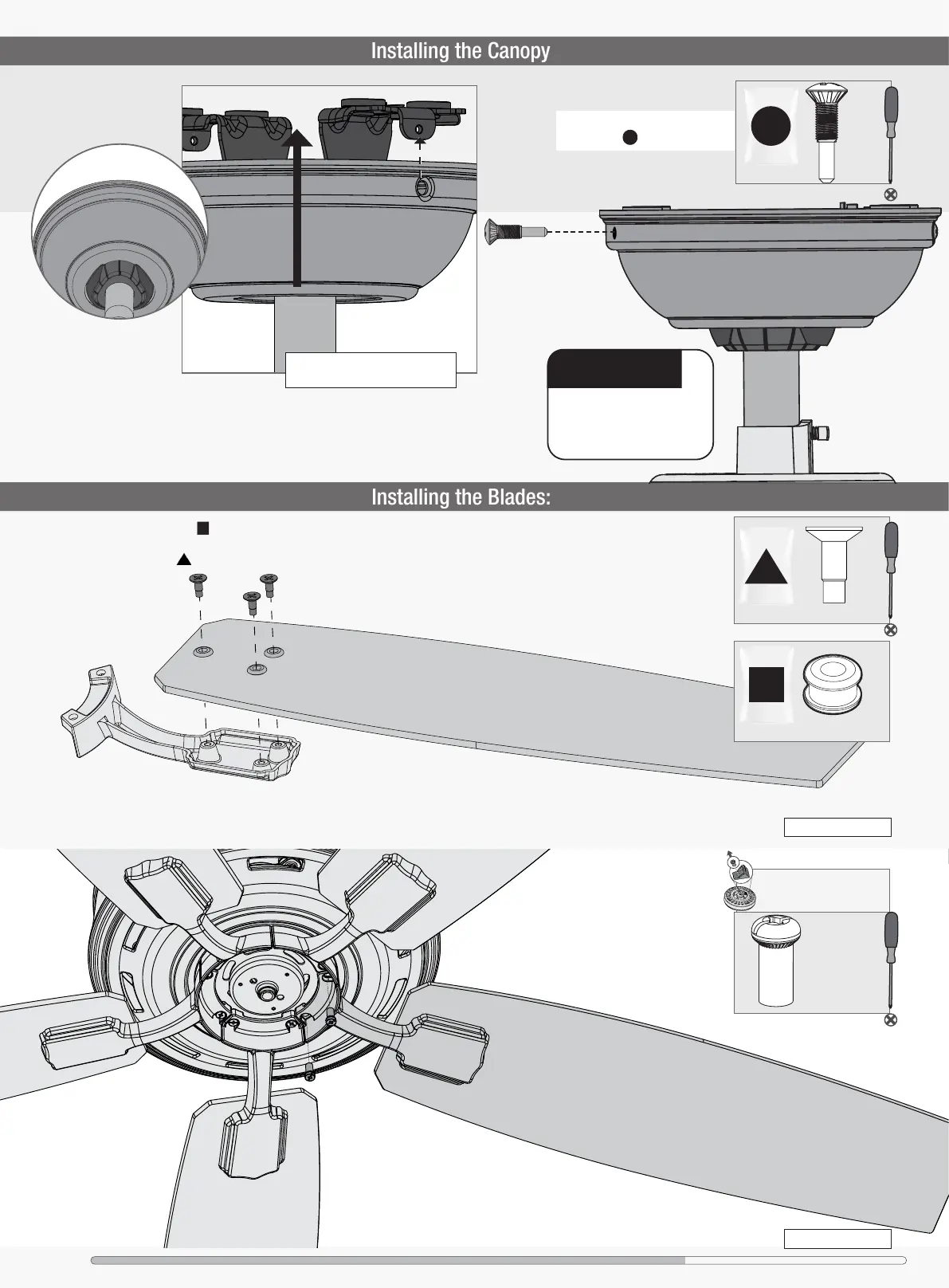

Installing the Canopy
Installing the Blades:
x15
x15
Insert grommets found in the hardware bag into the
holes in the blades, then secure each blade to a blade arm
with screws found in the hardware bag.
Repeat x5
x2
Lift the canopy into place so that
the screw holes are aligned.
Insert the two canopy screws
found in the hardware bag.
F
i
t
t
h
e
c
a
n
o
p
y
i
n
p
l
a
c
e
a
s
s
h
o
w
n
.
bag
bag
bag
x10
Lightly attach the blade arms to the motor with
the blade arm screws, then securely tighten
after both screws are attached.
Repeat x5
Canopy
Screw
Blade Screw
Grommet
Blade Arm Screw
Remember the screws that you
kept after removing the shipping
blocks? You need them here.
D
I
S
C
A
R
D
K
E
E
P
!
Fan style may vary.
Note:
Assembling the Light
Fan style may vary.
Note:
NOTICE
If screw holes do not align
properly then rotate the canopy
180 degrees. Hanger ball shape
must match canopy opening for
correct canopy installation.
