11
45051-01 • 05/12/11 • Hunter Fan Company
11
Our exclusive Easy Lock™ blade assembly enables you to lock the blades
in place without tools and to remove the blades easily for cleaning.

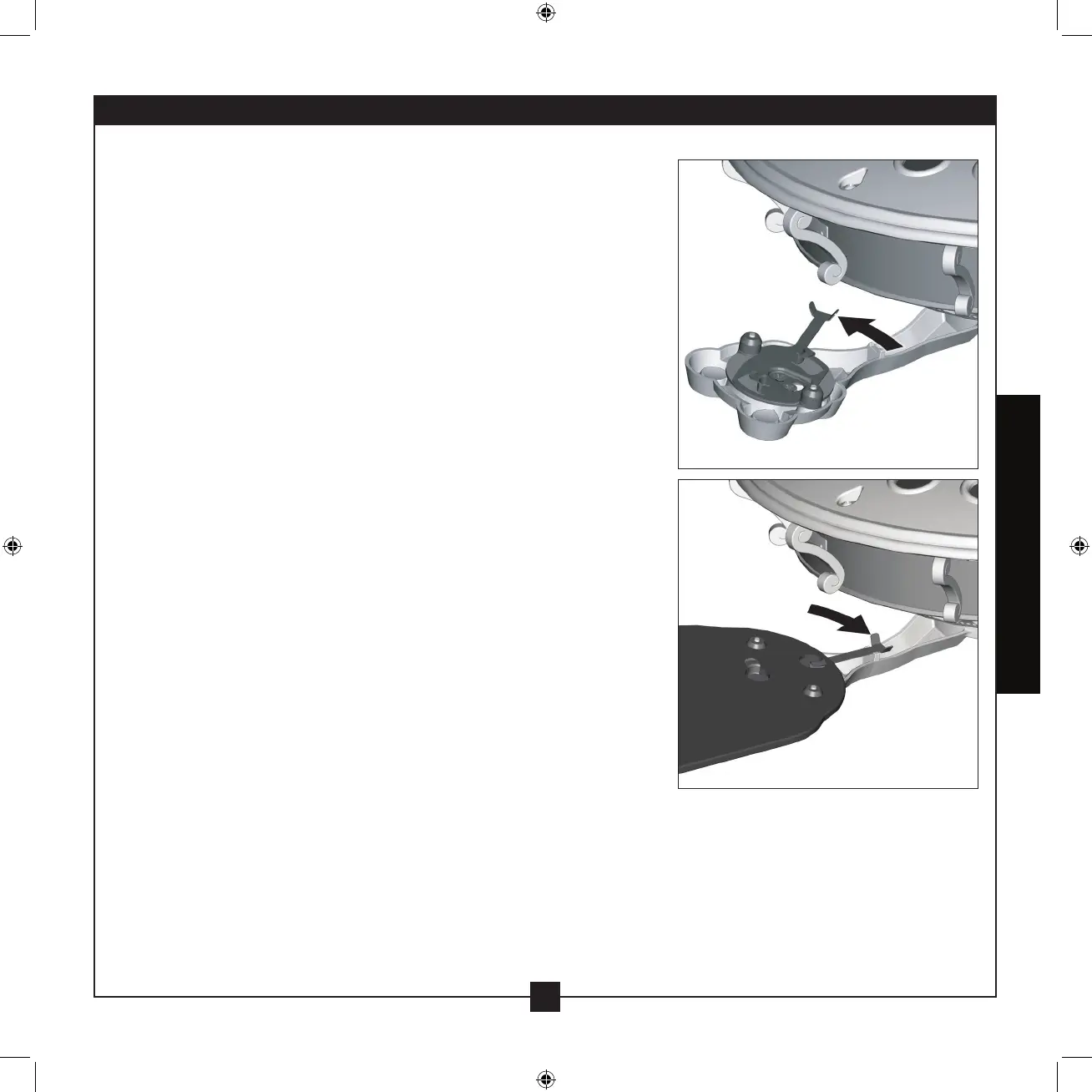

6-1. Open the locking mechanism.
6-2. Align the holes in the blade with the blade iron.
6-3. Close the locking mechanism securely. You will feel it lock into
place.
6-4. Repeat steps 6-1 through 6-3 until all blades are installed.
Note: You can customize your Hunter fan with a number of accessory
light kits.
Step 6-1
Step 6-3
Open
Close
6 • Assembling the Blades
Attach EasyLock
TM
Blades
To Next Page
