PB
2
Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.
For installing the blades
Hunter Pro Tip:
Find a part that is missing or damaged?
Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.
Spare Parts
For your convenience,
you may receive extra fasteners. Pullchains
bag
Fan style may vary.
Note:
M0215-01 r052120
We recommend that you pull everything out of the box and lay it out. We have
grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.

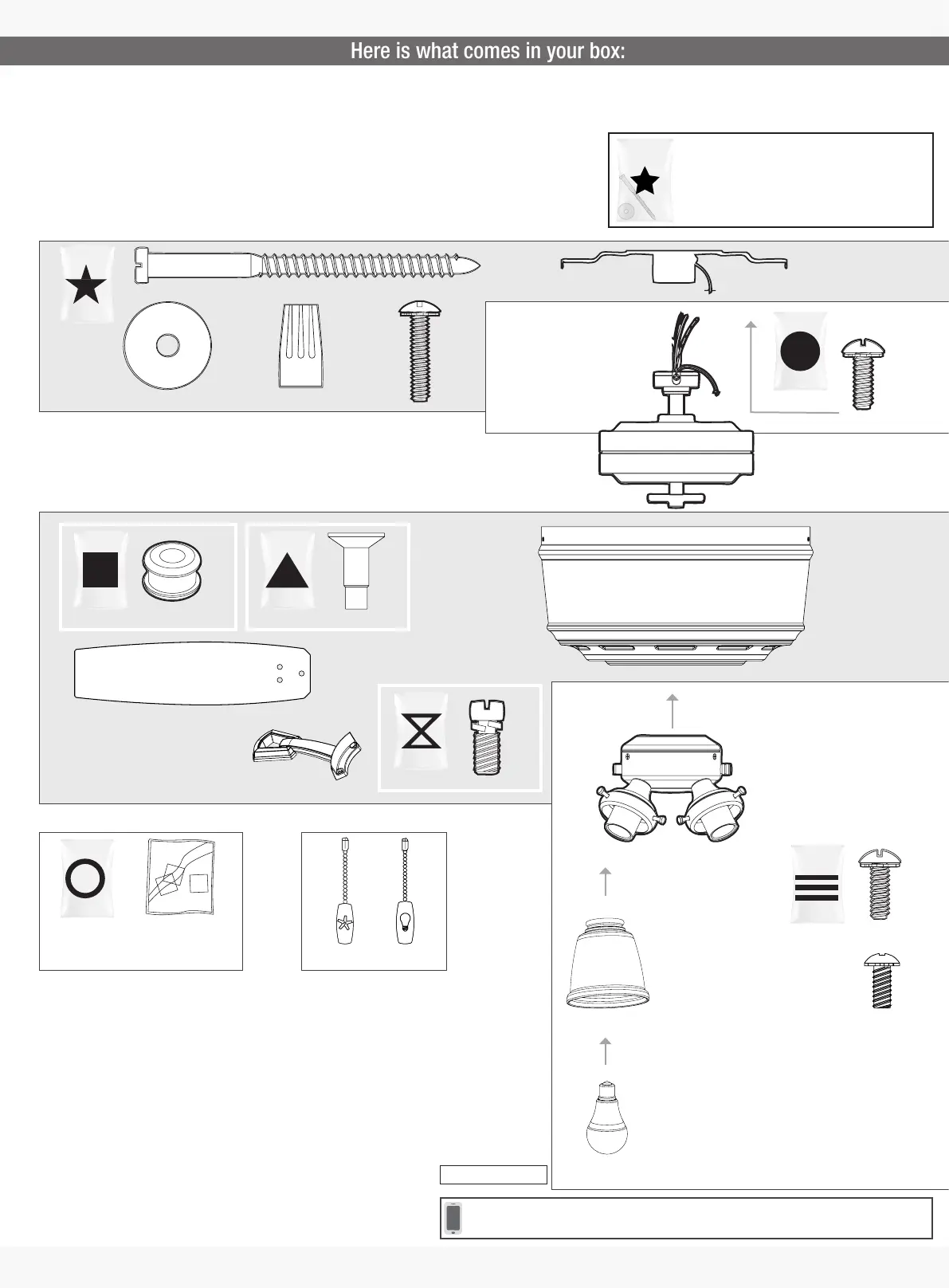

Here is what comes in your box:
x4
x2
x2
x2
x4
For installing the hanger bracket and wiring the fan
For installing the housing
bag
bag
Motor
Locking
Screw
Wire Nut
Washer
Wood Screw
Motor Housing
Screw
x3
x3
For installing the light xture
Bulb
Glass
Lower Switch Housing
Upper Switch Housing
x3
x3
bag
Light Kit Screw
Switch Housing
Screw
Ceiling Bracket
Motor Housing
x15 x15
bag bag
Blade Arm
Blade
Blade Screw
Grommet
Blade Arm Screw
x10
x5
x5
bag
To Next Page
