Choosing the Right Installation Location
You probably bought this fan with a location in mind. Let’s check below to make sure it is a good t.
Check the room dimensions: Check the outlet box:
You must be able to
secure the fan to building
structure or fan-rated
outlet box.
M
a
k
e
s
u
r
e
a
l
l
f
o
u
r
b
u
m
p
e
r
s
a
r
e
s
t
i
ll
a
t
t
a
c
h
e
d
.
30 inches
from blade tip to
nearest wall or
obstruction
7 feet
from bottom edge
of blade to the
oor

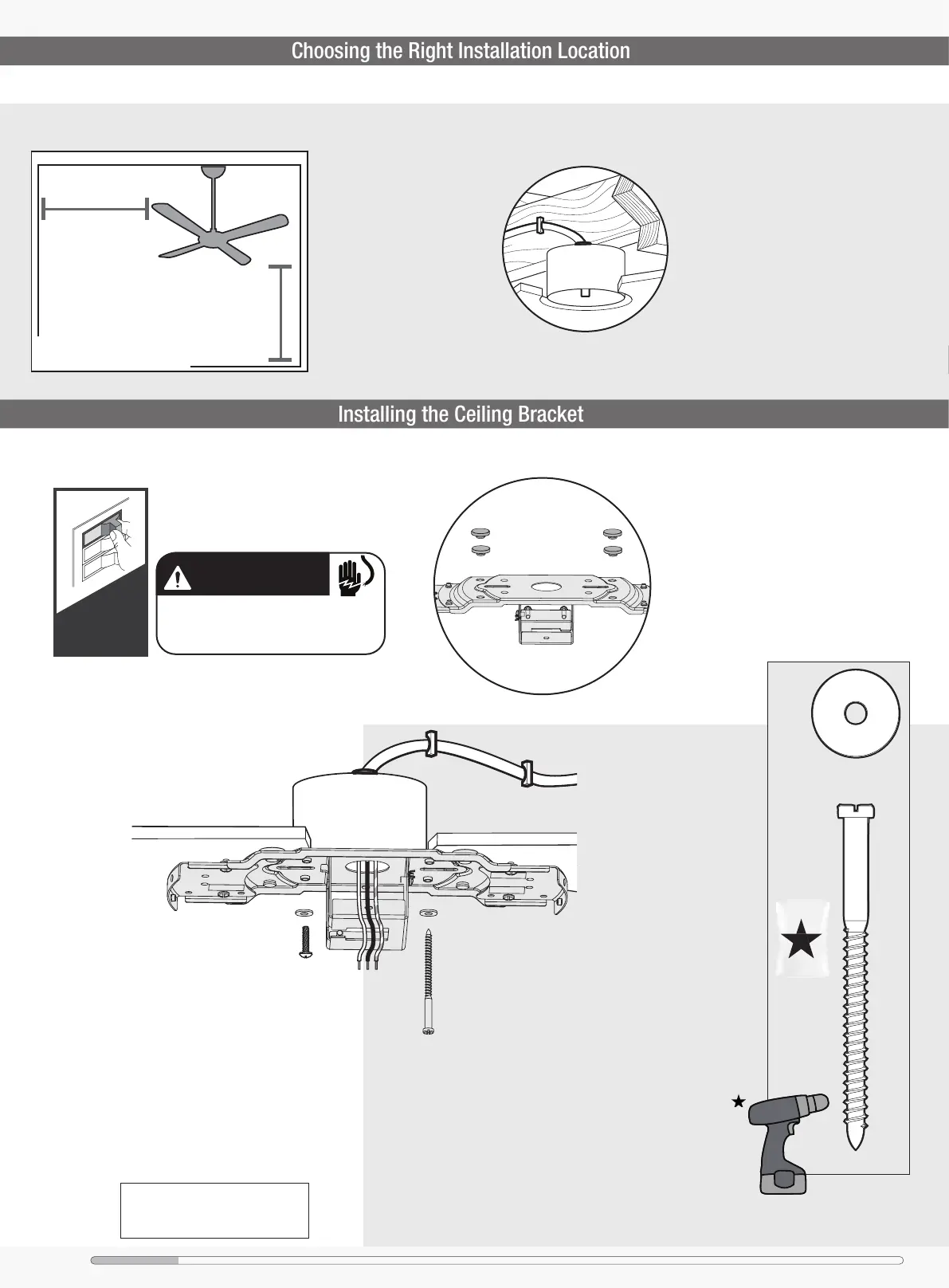

Installing the Ceiling Bracket
You have two options for installation. Pick which one works best for your location.
Use wood screws (included)
when securing to support
structure with approved
electrical outlet box. Drill 9/64”
pilot holes in support structure
to aid in securing ceiling bracket
with hardware found in the
hardware bag.
Use machine screws (pro-
vided with outlet box) when
securing to existing ceiling
fan-rated outlet box. Make
sure it is securely installed
and is acceptable for fan
support of 31.8 kg (70 lbs)
or less.
Option 2:
Wood Screws
Option 1:
Machine Screws
OFF
Turn Power
Do this rst!
The machine screws are the ones
that came with your outlet box.
Hunter Pro Tip:
bag
Wood Screw
Washer
Ceiling Bracket Hanging Fan Wiring Motor Housing Blades Light
x2
x2
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
To Next Page
