PB
2
Do not discard the hardware bags or mix parts from
different bags. Make note of the symbol printed on
each hardware bag. The symbols can be used to
identify the appropriate hardware for each step.
We recommend that you pull everything out of the box and lay it out. We have
grouped the drawn components below with the hardware you’ll need for those
parts. The screws below are drawn to scale to make it easier to identify what
piece of hardware is needed to install each component.
x4
x2
x2
x2
For installing the hanger bracket and wiring the fan
For installing the blades
For installing the canopy
For installing the light xture
bag
Hunter Pro Tip:
Find a part that is missing or damaged?
Don’t take it back to the store. Let us make it right. Visit us at HunterFan.com or call us at 1.888.830.1326.

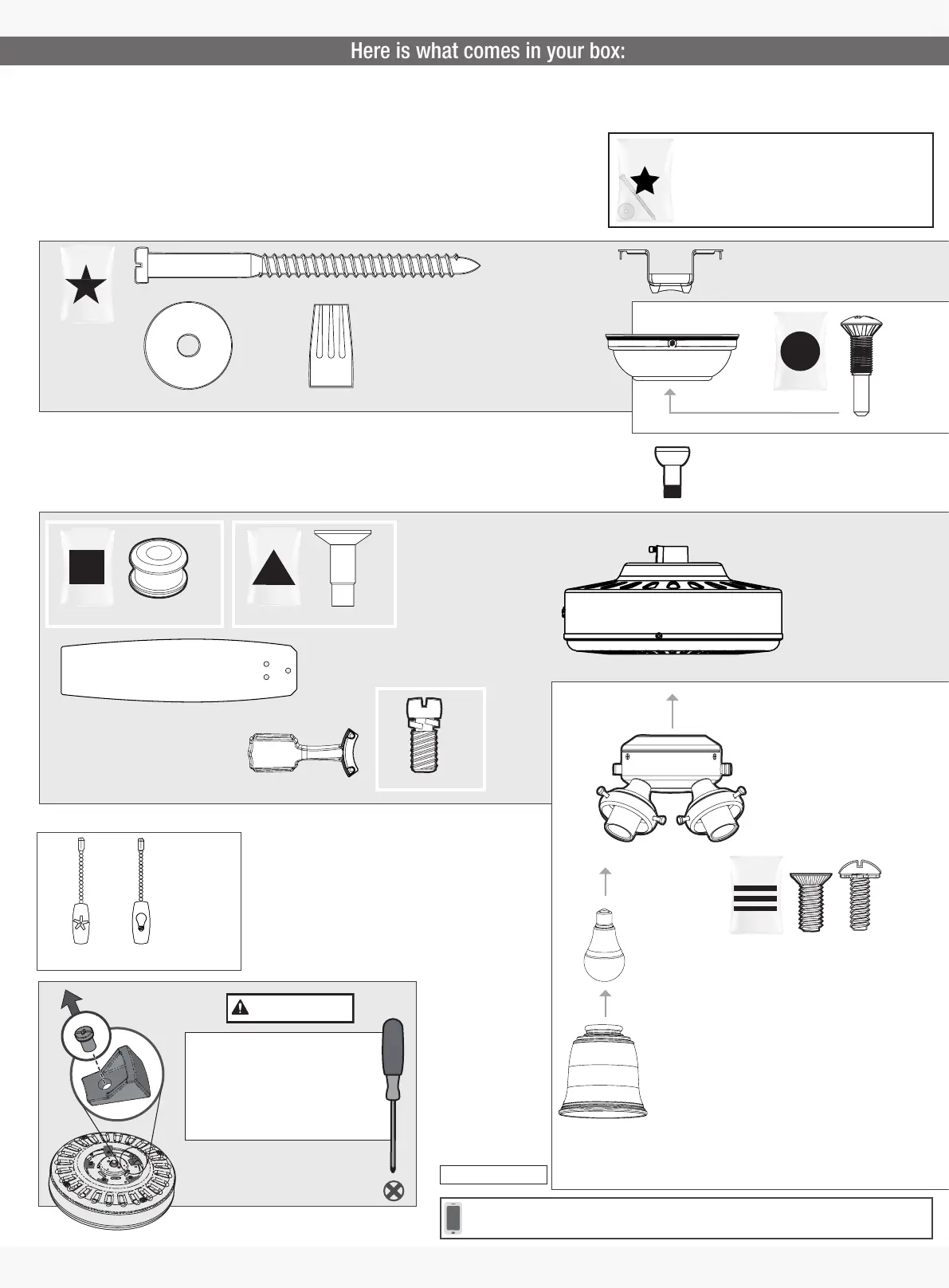

Here is what comes in your box:
bag
Pullchains
D
I
S
C
A
R
D
K
E
E
P
!
Remove the shipping blocks from the
motor. Save the screws. They will be
needed for blade iron installation.
Note: Some fans will have a shipping
ring instead of shipping blocks. Please
remove the ring and save the screws.
IMPORTANT
x3
Bulb
Lower Switch Housing
Upper Switch Housing
Blade Arm
Blade
Motor
Downrod
Canopy
Canopy
Screw
Ceiling Bracket
Wood Screw
WIre Nut
Washer
Blade Arm Screw
x10
x3
Glass
x3
bag
Light Kit
Screw
M0282-01 r101822
Fan style may vary.
Note:
x3
x5
x5
Upper
Switch
Housing
Screw
x15 x15
bag bag
Blade Screw
Grommet
