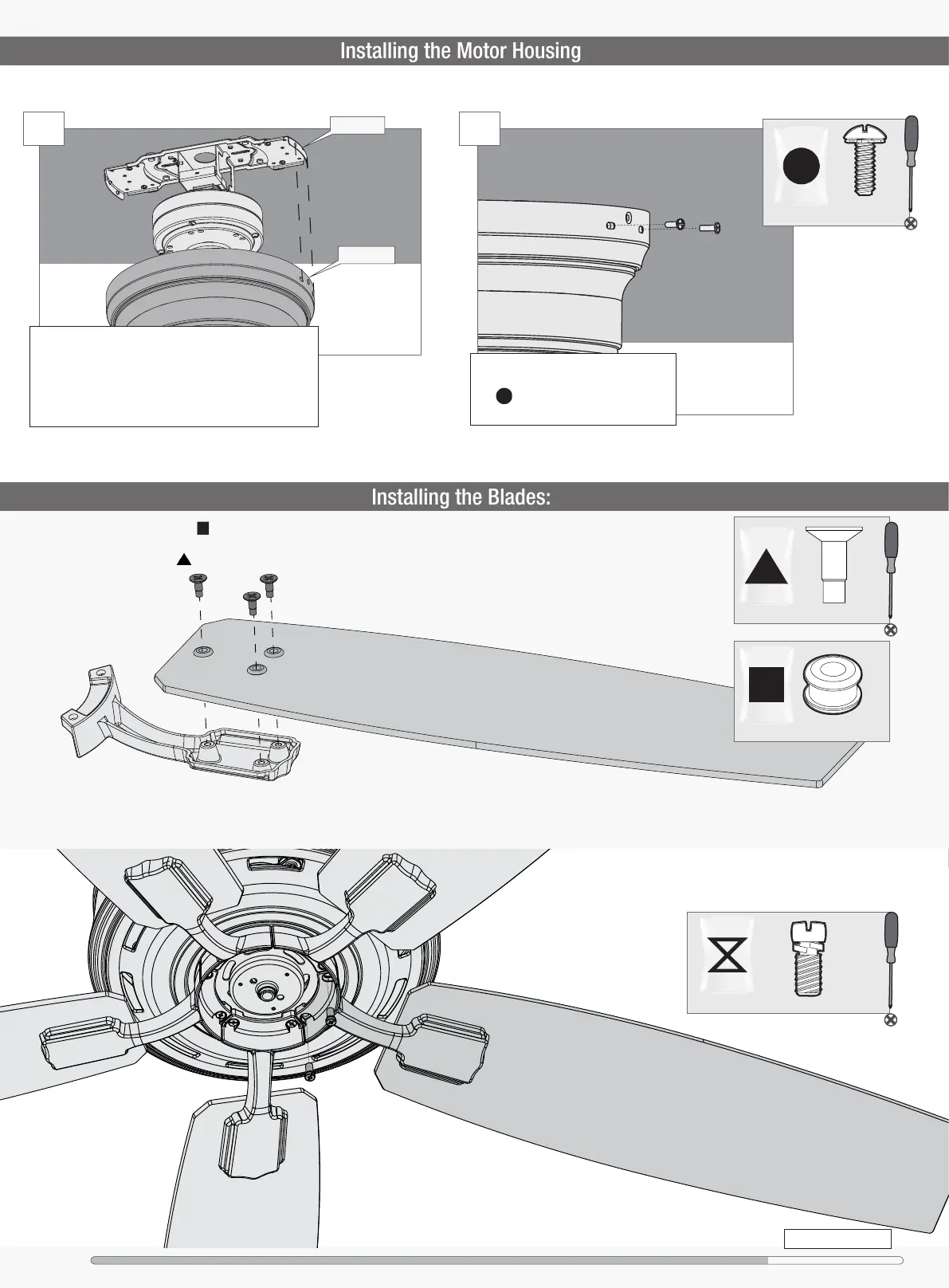

Installing the Motor Housing
1
STEP
2
STEP
Raise the motor housing up over the motor and ceiling
bracket. Turn the motor housing so the screw holes align
and the indentation in the housing locks into place with
the notch in the ceiling bracket. The motor housing is
not secured until the next step is complete. Do not
leave unattended.
With a Phillips head screwdriver, install
the four motor housing screws found in
the hardware bag. Tighten all four
screws securely.
x4
bag
Notch
Indentation
Motor Housing
Screw
Installing the Bulbs and Glass
x15
x15
Insert grommets found in the hardware bag into the
holes in the blades, then secure each blade to a blade arm
with screws found in the hardware bag.
Repeat x5
bag
bag
x10
Lightly attach the blade arms to the
motor with the blade arm screws,
then securely tighten after both
screws are attached.
Repeat x5
Blade Screw
Grommet
Blade Arm Screw
Fan style may vary.
Note:
bag
To Next Page
