Installation - Long Downrod
10
9
10
7
8
6
2
4
5
3
2
1
1 3 4 5 2

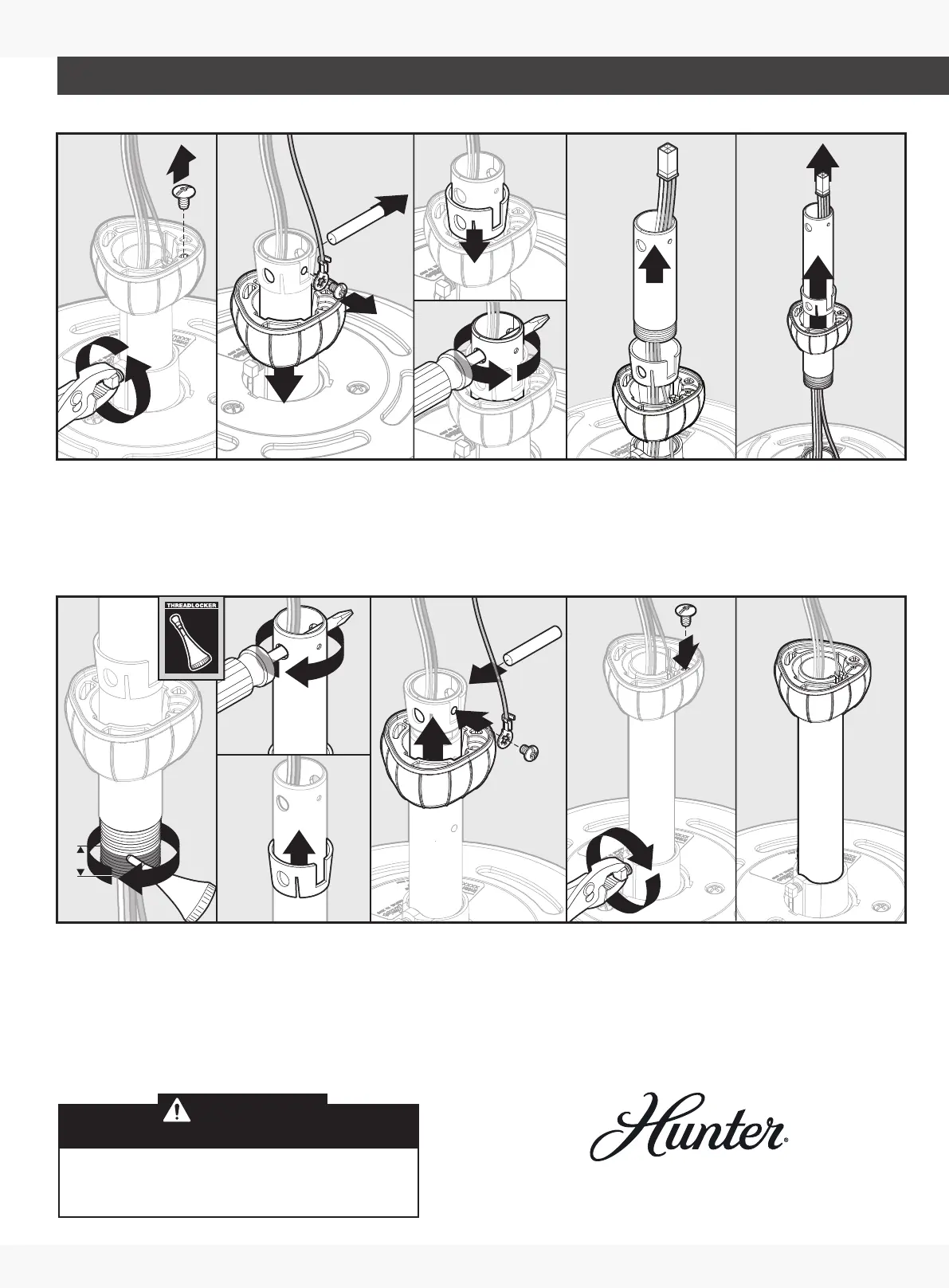

1. Loosen set screw (1) and remove ball screw (2).
2. Slide ball down (3), remove small metal pin (4) and ground screw (5).
3. Slide down inner sleeve (6). Place screwdriver through hole in downrod (7)
making sure not to hit or twist wiring. Twist screwdriver counter-clockwise
to break downrod free.
4. Remove ball, inner sleeve and downrod from fan body (8) and wiring
harness.
5. Route ground wire and wiring harness through accessory downrod–12”
max. (9). Slide inner sleeve and ball over downrod (10).
6. After cleaning pipe thread area, apply 1 ml threadlocker to lower half of
downrod (1).
Risk phrases: R43 May cause sensitisation by skin contact. R52/53
Harmful to aquatic organisms, may cause long-term adverse effects in the
aquatic environment.
Safety phrases: S61 Avoid release to the environment. Refer to special
instructions/Safety data sheets. S24 Avoid contact with skin. S37 Wear
suitable gloves.
This product can expose you to chemicals including Cumene,
which is known to the State of California to cause cancer.
(For more information, go to www.P65Warnings.ca.gov.)
7. Place screwdriver through hole in downrod (2) making sure not to hit
or twist wiring. Twist screwdriver clockwise to tighten. Slide up inner
sleeve (3).
8. Reinstall small metal pin (4) and ground screw (5). Slide ball up (6).
9. Reinstall ball screw (7) and tighten set screw (8).
10. Assembled downrod.
