to the front edge of the foot step is equidistant at top and bottom of foot step. If desired results are not
achieved, shims may be needed.

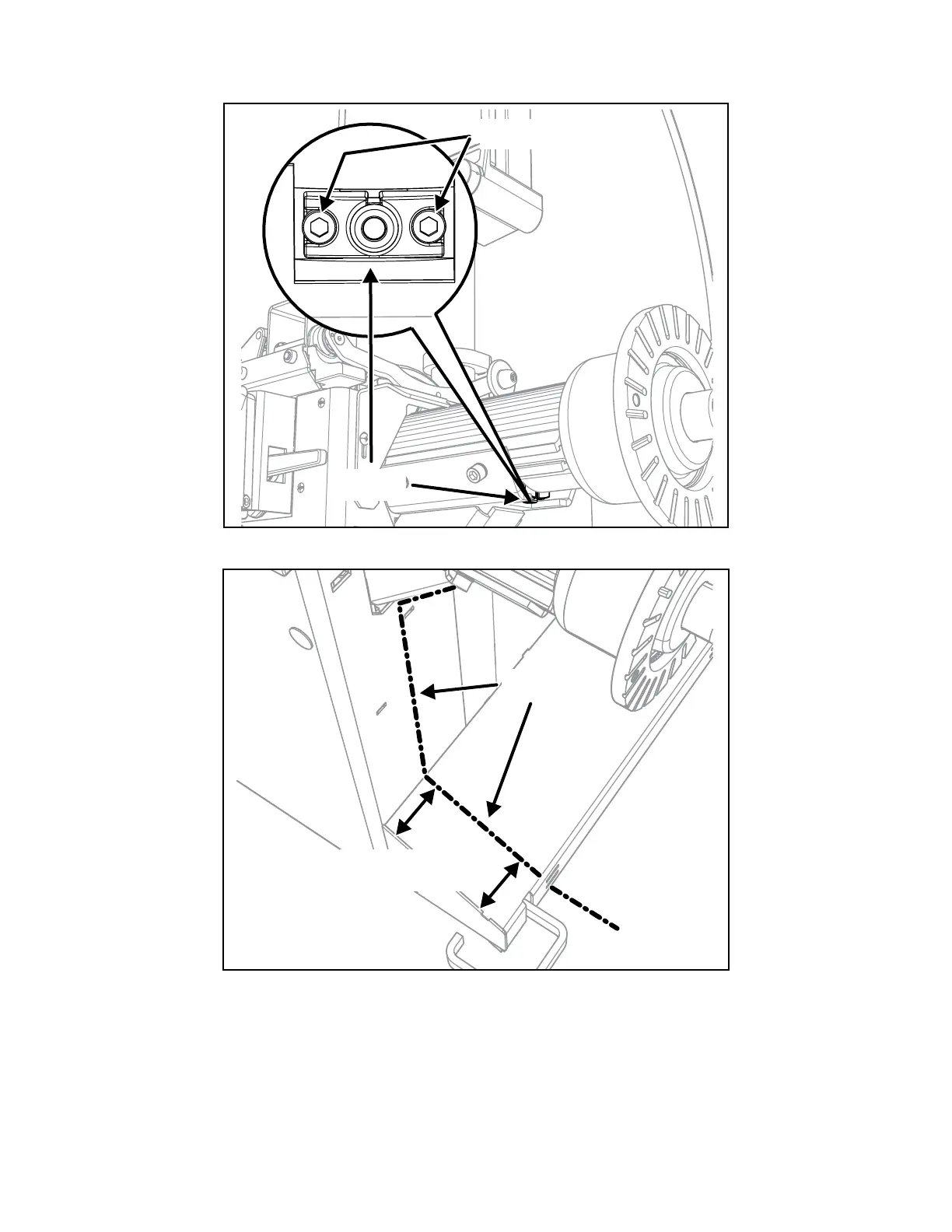

LASER
ASSEMBLY
ADJUSTMENT
SCREWS
Figure 78
LASER
LIGHT
OBTAIN EVEN
DISTANCE ± 8 INCHES
(± 203 mm)
Figure 79
ENTER SHOP NAME
The shop name that is shown at the top of the monitor can be entered by the service rep. It can also be entered
later by the customer and is covered in the operations manual form 6422-T.
1. While the balancer is in service mode, press “Utility” and then “Set Up”.
