6-
2

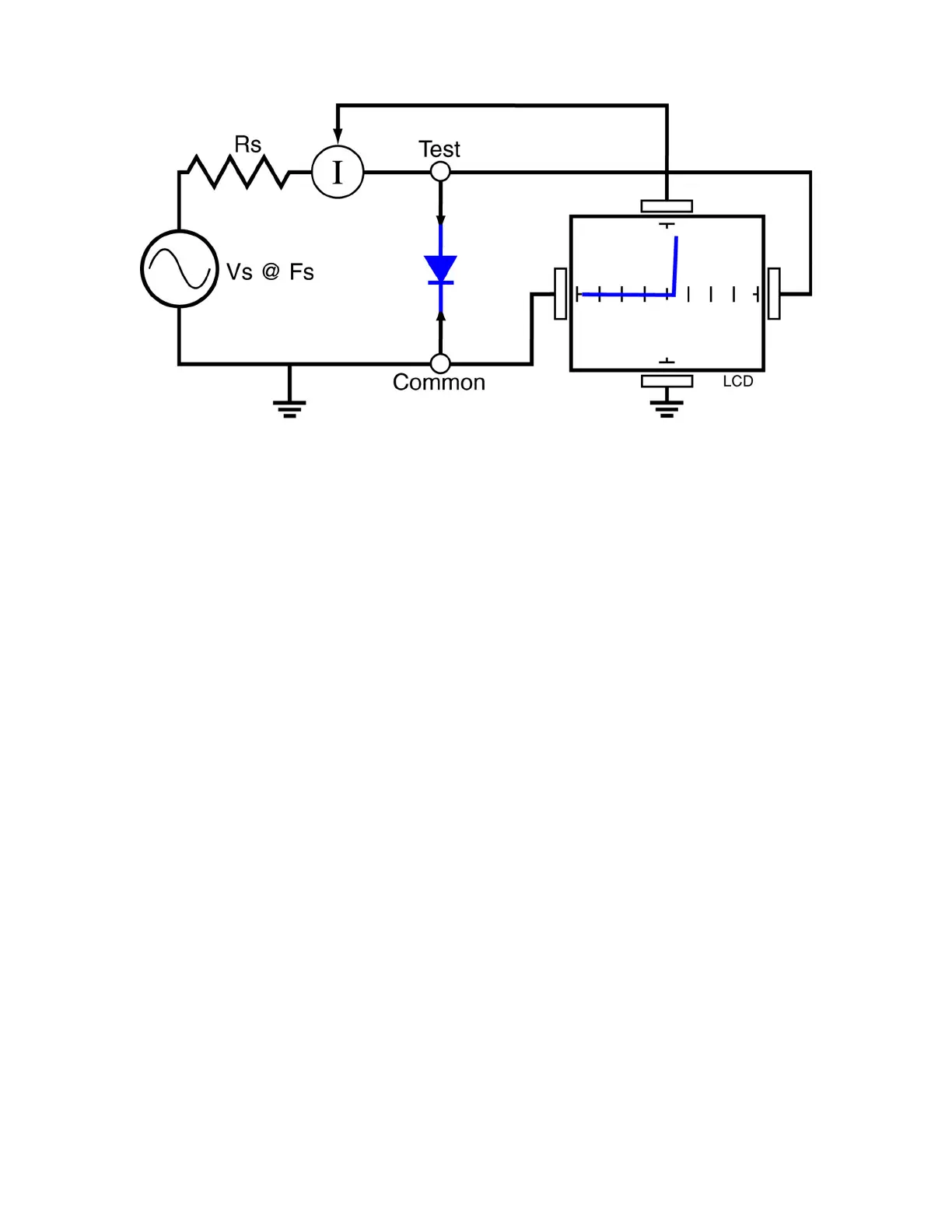

Figure 6-2. Tracker Core Circuit Block Diagram with a Diode
You can see this "knee" signature on some diodes in the next section.
1. Turn power on to your Tracker 2700.
2. Select the 10V, 100Ω
ΩΩ
Ω range. Select 60HZ.
3. Place or clip the red test lead from the Tracker 2700's A test terminal to anode lead of the
diode.
4. Place or clip the black test lead from the Tracker 2700's Common terminal to cathode lead of
the diode.
