IMPORTANT SAFEGUARDS
WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS
SHOULD ALWAYS BE FOLLOWED INCLUDING THE FOLLOWING:
WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS
SHOULD ALWAYS BE FOLLOWED. READ ALL INSTRUCTIONS.
TO PROTECT AGAINST RISK OF ELECTRICAL SHOCK, DO NOT PUT THE
MAIN BODY (MOTOR) IN WATER OR ANY OTHER LIQUID.
CLOSE SUPERVISION IS NECESSARY WHEN ANY APPLIANCE IS USED
NEAR CHILDREN.
UNPLUG FROM OUTLET WHEN NOT IN USE, BEFORE ASSEMBLING OR
TAKING OFF PARTS AND BEFORE CLEANING.
AVOID CONTACT WITH MOVING PARTS.
DO NOT OPERATE ANY APPLIANCE WITH A DAMAGED CORD OR PLUG, OR
AFTER THE APPLIANCE MALFUNCTIONS, OR IS DROPPED OR DAMAGED
IN ANY MANNER. RETURN APPLIANCE TO THE NEAREST AUTHORIZED
SERVICE FACILITY FOR EXAMINATION, REPAIR OR ELECTRICAL OR
MECHANICAL ADJUSTMENT.
THE USE OF ATTACHMENTS NOT RECOMMENDED OR SOLD BY THE
MANUFACTURER MAY CAUSE FIRE, ELECTRIC SHOCK OR INJURY.
1.
2.
3.
4.
5.
6.
7.
02 09
English
Juice Cap Packing
Hopper Packing
Screw Packing
01
02
01
01
02
02
After cleaning, insert the packing so that the round
part of the packing faces outward and the lattice grid
faces upward.
01
02
03
Pull one side of it to detach it downward.
After cleaning, check the top and bottom
directions of the packing and insert it
upward as if you hook it at the bottom
part of the multi-screw.
After checking the direction, thoroughly
press the remaining part of the packing
down to assemble it without any folded
sections.
6. Assembly and Disassembly of Silicone
※
Silicone packings are consumables that are
recommended to be replaced once every 6 to 12
months. They are available for purchase through the
Customer Service Center.
(The juicer may leak if the product is not assembled properly.)
Extraction Packing
Seal Packing
Juice outlet cover packing
01
02
03
01
02
03
Hold and take out the packing as if you
are pulling it back.
After cleaning, insert one side of the
packing first as if you are hooking it.
Insert the remaining part and press
down the perimeter.
Hold and take out the packing as if you
are pulling it back.
After cleaning, insert one side of the
packing first as if you are hooking it.
Insert the remaining part and press
down the perimeter.

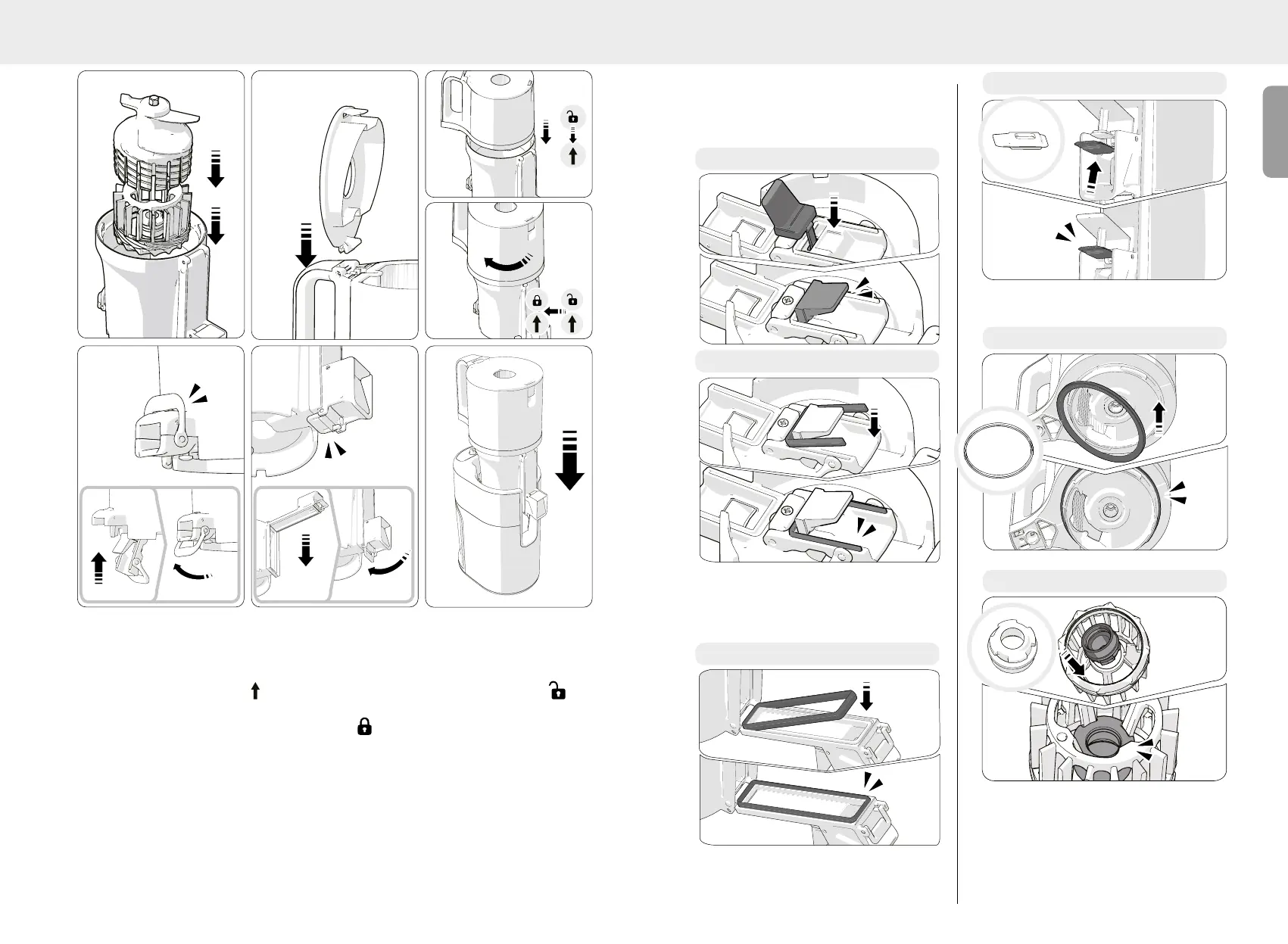

Assemble the packing as shown in the figure.
08
01
02
03
07
05
③
⑤
④
①-1
②-1
⑤-2
②-3
⑤-9
⑤-4
⑥
04
06
01 Place the bottom part of the multi-screw (④) into the chamber (⑤), insert the top part of
the multi-screw (
③) as shown in the image, and then firmly press the assembled multi-
screw set.
02 Assemble the hopper cover (
①-1) on the hopper (②-1) vertically.
03 Assemble in a way that the [
] assembly guide mark of the chamber (②-3) and [ ]
assembly guide mark of the hopper (
⑤-2) are perfectly aligned.
04 Turn the installed hopper clockwise up to the [
] assembly guide mark.
If the internal parts are not assembled correctly, the hopper will not close.
05 Check if the pulp outlet cover and the latch (
⑤-9) are closed correctly.
1. Lift the pulp outlet cover upward to close it and hook the latch.
2. If the packing is incorrectly assembled or the latch is not properly closed, the pulp outlet
cover may open or juice may leak during extraction.
06 Check if the juice pulp outlet cover and latch are correctly closed.
1. Lower the juice pulp outlet cover downward to close it and hook the latch.
2. If the packing is incorrectly assembled or the latch is not properly closed, the pulp outlet
cover may open or juice may leak during extraction.
07 Place the correctly assembled chamber set onto the product body (
⑥).
Assemble the chamber set first and then install it on the product body.
5. How to Assemble
To Next Page
