13
WHEELS & TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
5,8
4,10
3,9
11
7
MAX
+
_
90N
MAX
+
_
150N
14
3
14
11
13
6
17
21
2
12
1
10
3

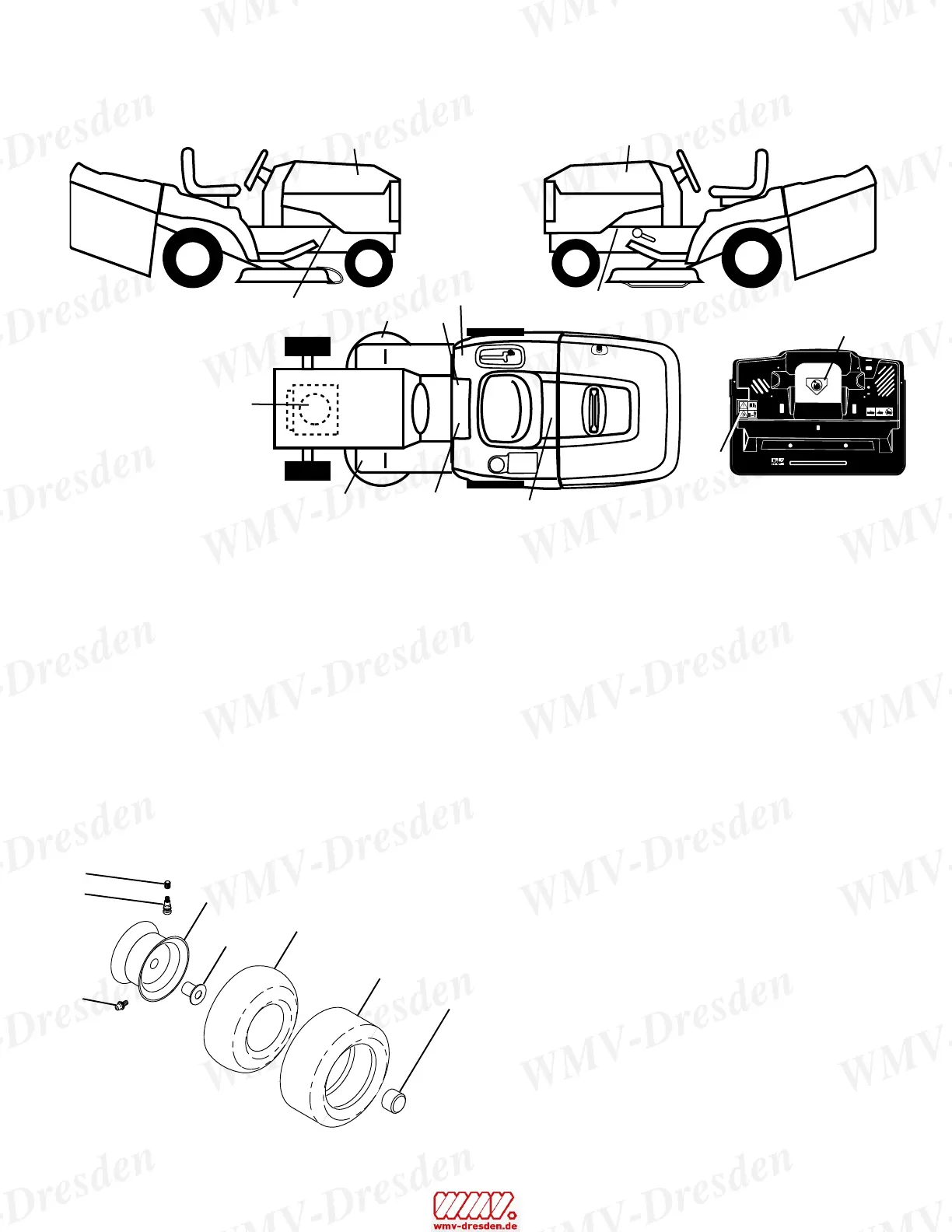

REPAIR PARTS
TRACTOR - - MODEL NO. 12592RB (BA12592RBC), PRODUCT NO. 964 77 93-00
DECALS
1 532 14 54-98 Decal Read Owner’s Manual Sym
2 532 18 48-55 Decal Hp Engine
3 532 18 16-64 Decal Hood
6 532 18 04-32 Decal 100 DBA/CE
10 532 14 50-05 Decal Bat Dan/Poi P/L Sym Wpn
11 532 18 21-66 Decal Mower Cut Finger Symbol
12 532 15 97-37 Decal Brake/Clutch Symbol Lt
13 532 18 04-35 Decal Warn Back Plate CRD
14 532 15 97-36 Decal Chassis Hot Muffl er
17 532 14 08-37 Decal Saddle Brake Parking
21 532 16 62-86 Decal Hex Belt Sch 92 CRD
— 532 13 83-11 Decal Lift Handle
— 532 18 52-30 Manual Operator's (Euro)
— 532 18 52-32 Manual Operator's (Scan)
— 532 18 52-35 Manual Operator's E-Bloc
— 532 18 52-84 Manual Parts
1 532 05 91-92 Cap Value Tire
2 532 06 51-39 Stem Value
3 532 10 62-22 Tire F Ts 15 X 6 0 - 6 Service
4 532 05 99-04 Tube Inner Front #35060
5 532 18 33-37 Rim Asm 6"front Service
6 532 12 49-57 Fitting Grease
7 532 12 49-59 Bearing Flange
8 532 18 33-38 Rim Asm 8"rear Service
9 532 12 46-35 Tire R Ts 20 x 8-8 Service
10 532 12 49-26 Tube Rear 9 5 X 8 Service
11 532 17 50-39 Cap Axle Blk 1 50 X 1 00
- - 532 14 43-34 Sealant, Tire (10 oz. tube)
