ASSEMBLY INSTRUCTIONS

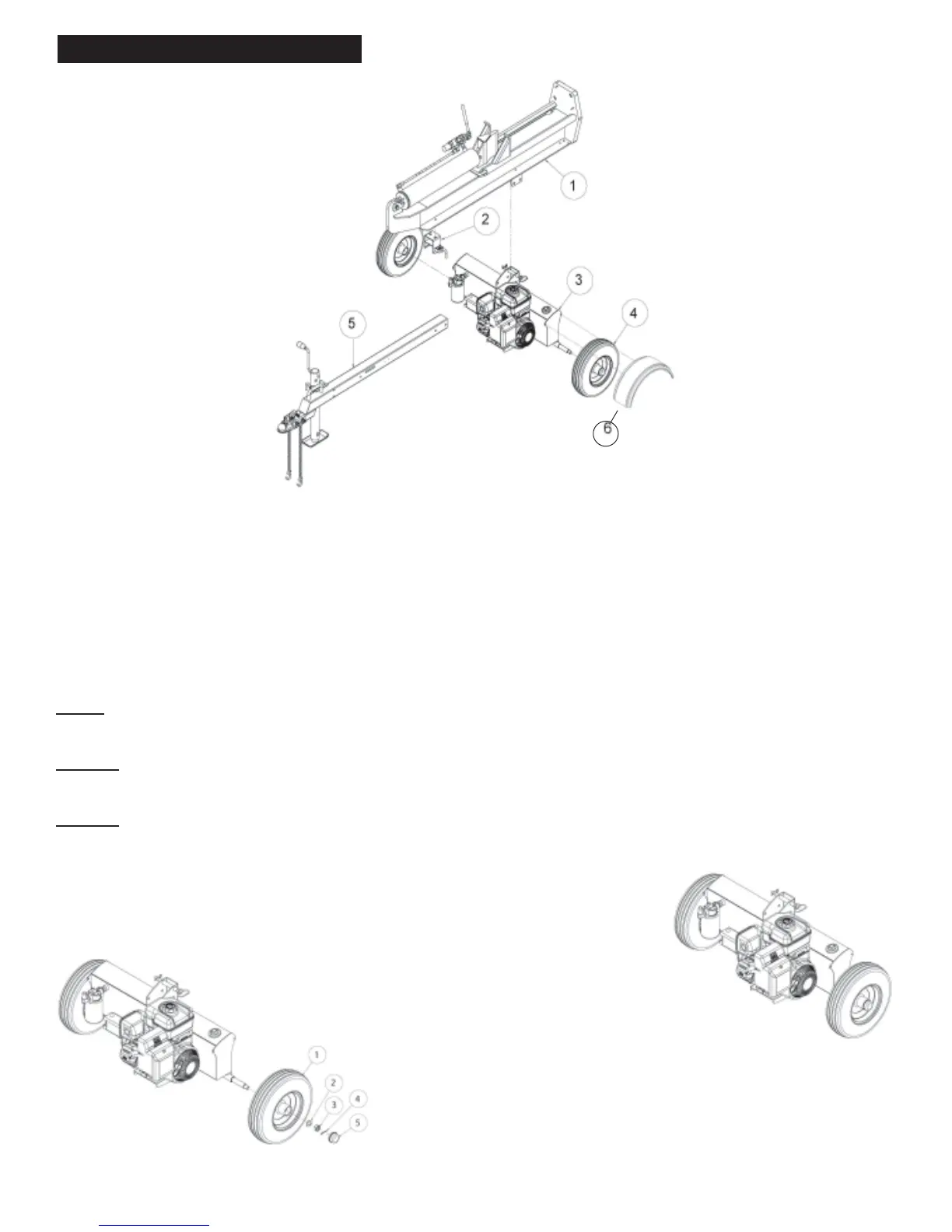

NOTE: This log splitter was partially assembled at the factory. Refer to the drawing and parts list should it become
necessary to disassemble the unit for repair or replacement of parts.
STEP 1: Remove all the components from the shipping container.Inspect each piece for shipping damage. If any part is
damaged, contact your dealer or delivering carrier.
STEP 2: Attach the two wheels (1) to the tank assembly wheel spindles using the 3/4” light flat washers(2) ,3/4” NF
slotted nuts (3), 1/8” x 1-1/2” cotter pins (4) and the hub caps (5). These items are in the hardware package.
Tighten the slotted nuts and make sure the wheels rotate freely.
Page 7
ITEM NO. PART NO. DECSRIPTION QTY.
1 401610S0 Beam Assembly 1
2 40127500 Beam Lock Assembly 1
3 40164000 Tank Assembly 1
401640CA Tank Assembly (CA) 1
4 40035300 Tire and Wheel Assembly 2
5 40127200 Tongue Assembly 1
6 40140700 Fender 2
40116800 Hardware Kit 1
ITEM NO. PART NO. DESCRIPTION QTY.
1 400312B0 Tire and Wheel 2
2 O/L 3/4” Light Flat Washer 2
3 17012000 3/4” Slotted Nut 2
4 O/L 1/8” x 1-1/2” Cotter Pin 2
5 40033200 Hub Cap 2
O/L- Obtain locally. Common fasteners available through
hardware and farm stores.
