"HUSKY ROLLER" ASSEMBLY
GREASE
GREASE
GREASE
LATCH PIN #2
LATCH
PIN #1
Figure 3
Figure 4
Hole #1
Hole #2
Hole #3
Hole #4
REAR OF
TRUCK

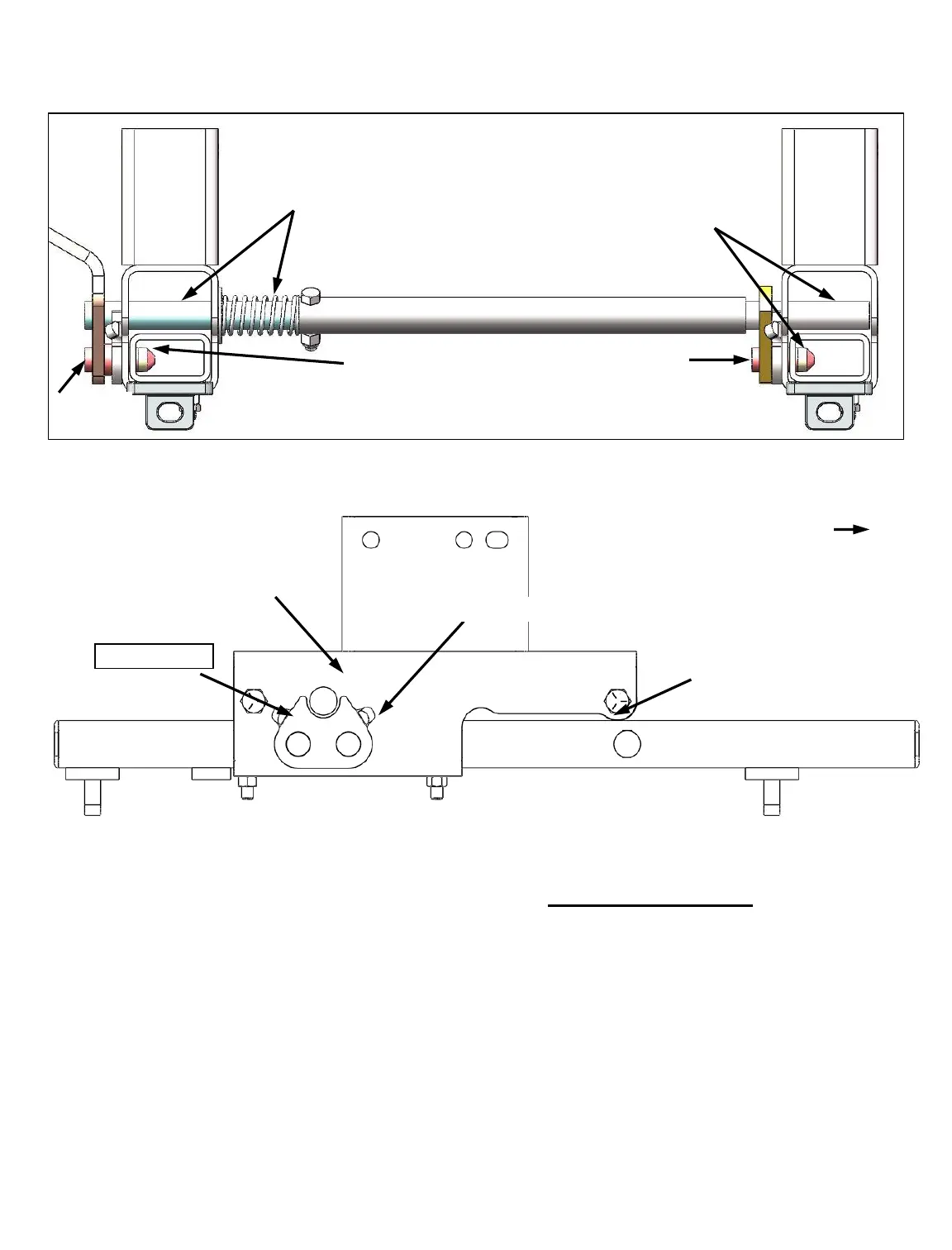

1. Apply grease to ALL areas indicated by arrows. See Figure #3 for all areas requiring grease.
2. Install the EZ Roller Housings into the base rails at the 20-5/8” slot locations. Be sure they are
oriented as shown in Figure 4 above.
3. Slide long tube assembly into Hole #1 of the passenger side roller assembly so that the latch
pin #2 inserts into hole #2. See Figure #4.
