Husky 41214 - Assembly: Inflation Needle or Tapered Nozzle; Quick-Connect Fittings

c
e
g
f
Fig. E
ASSEMBLY
Fig. D
14

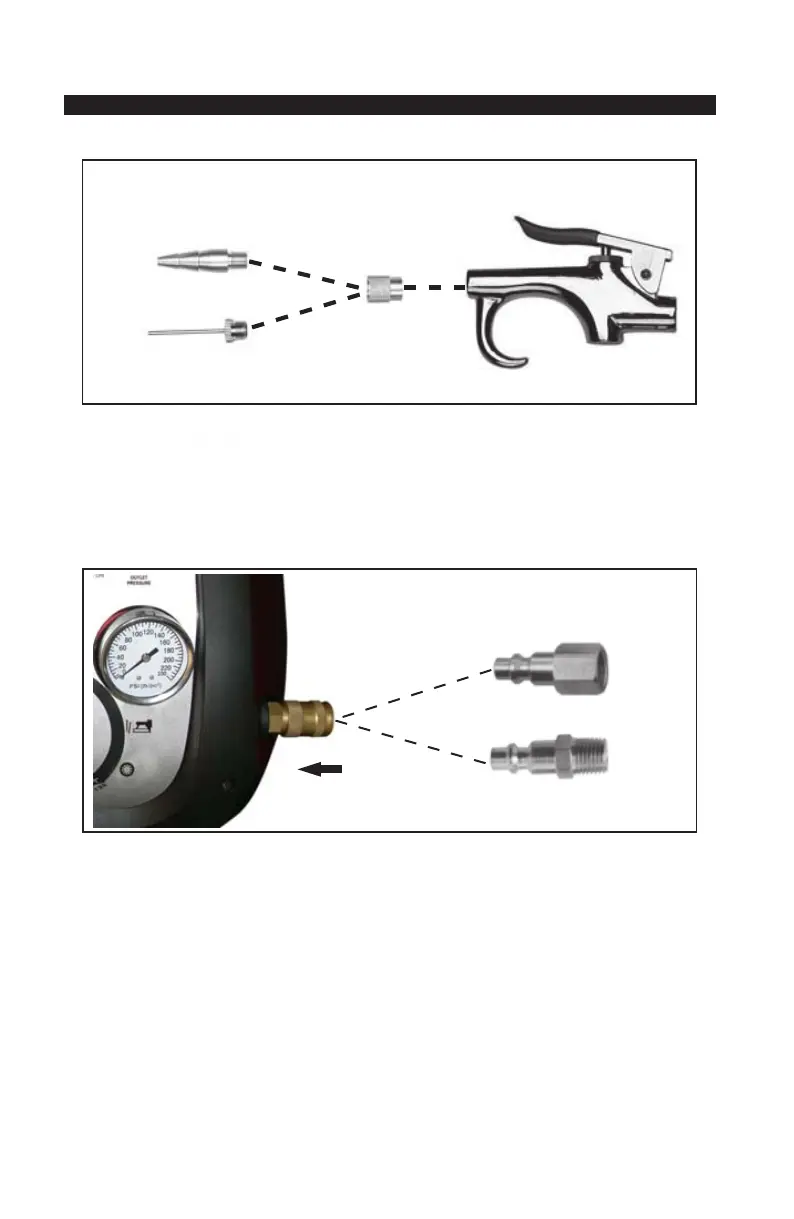

Assembling Inflation needle or tapered nozzle
The blow gun (c) and blow gun adapter (e) from the accessory kit is needed to
use the inflator/deflator kit. (See Fig. C/Fig. D)
1. Attach the blow gun to hose.
2. Attach blow gun adapter to blow gun.
3. Attach the inflation needle (f), tapered nozzle (g).
Quick-Connect (Fig. E)
1. Assemble the 1/4” female quick-connect plug (k) or 1/4” male quick-connect
plug to the 1/4” Female quick-connect body.
2. Attach the quick-connect plug to the hose.
NOTE: Always use PTFE tape on all threaded components, to prevent leaks.
NOTE: FEMALE QUICK CONNECT SOLD SEPARATELY
j
k
i
PULL
