Before Each Start-Up:
1. Place Off/Auto-On switch to "Off" and close air regulator.
2. Turn the regulator knob counterclockwise until it stops. Attach hose and
accessories.
Risk of Bursting. Too much air pressure causes a hazardous
risk of bursting. Check the manufacturer's maximum pressure rating for air
tools and accessories. The regulator outlet pressure must never exceed the

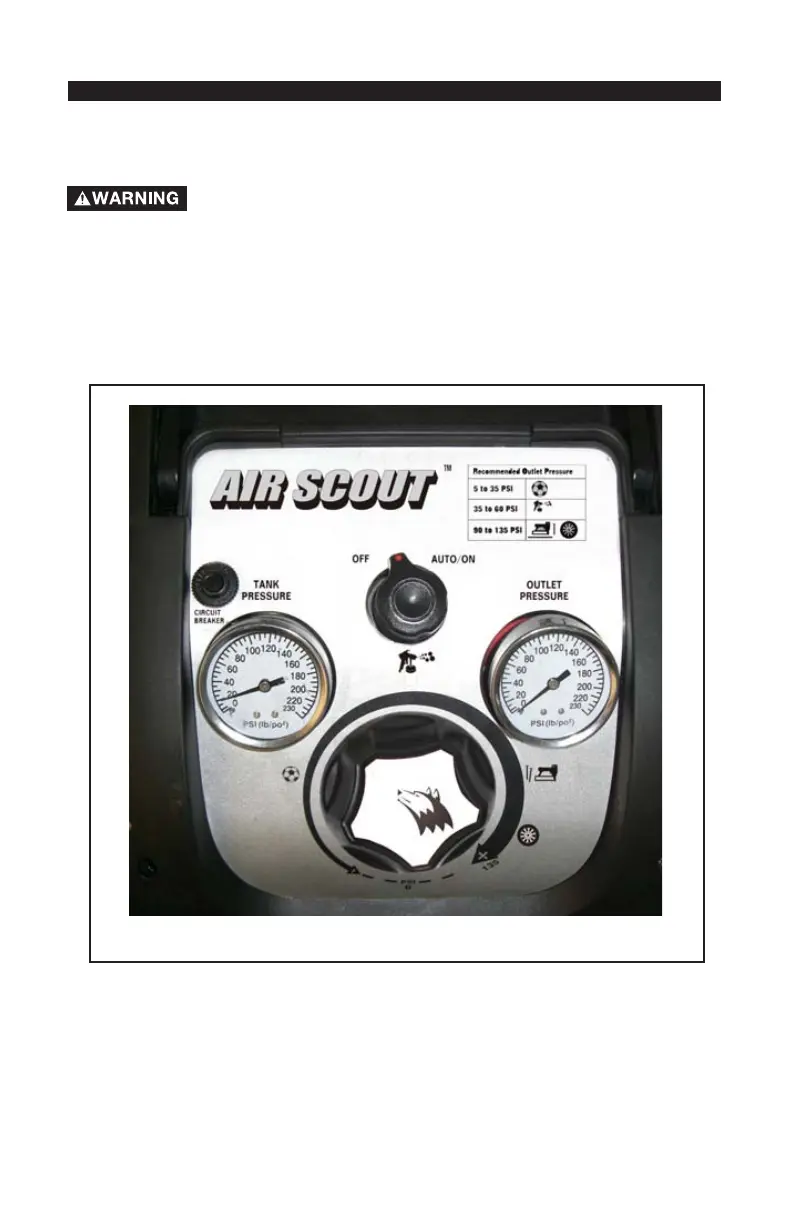

maximum pressure rating. How to Start: (Fig. H)
1. Turn the Off/Auto-On switch to "Auto-On" and allow tank pressure to build.
Motor will stop when tank pressure reaches "cut-out" pressure.
2. Turn the regulator knob clockwise until desired pressure is reached.
NOTE: To use the suggested pressure readings on the label, turn the regulator knob
clockwise until the needle on the pressure gauge aligns with the desired suggested
pressure reading icons.
3. The compressor is ready for use.
19
OPERATION
Fig. H
