9
HUSKYTOOLS.COM
Please contact 1-888-43-HUSKY for further assistance.
pts-205109-051012, pts-2053019-053012, pts-206067-060612
Package Contents (continued)

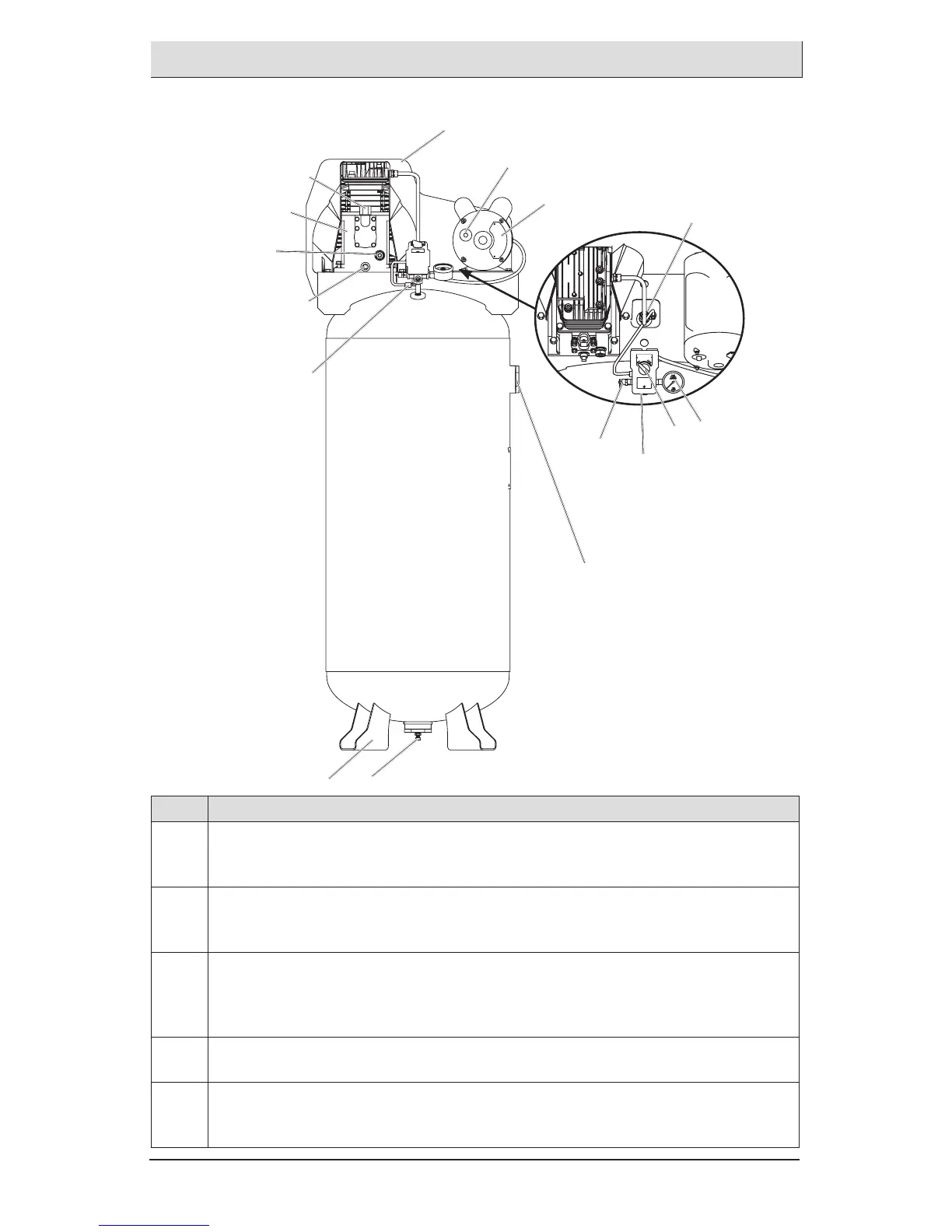

Become familiar with these controls before operating the unit (Figure 2)
FIGURE 2
FIGURE 7
K
I
O
L
N
M
H
J
F
C
A
D
G
B
E
P
Part Description
A
Auto(I)/Off(0) Switch: Turn this switch in the “Auto (I)” position to provide
automatic power to the pressure switch and “Off (O)” to remove power at the end
of each use.
B
Pressure Switch: The pressure switch automatically starts the motor when the air
tank pressure drops below the factory set “cut-in” pressure. It stops the motor when
the air tank pressure reaches the factory set “cut-out” pressure.
C
Safety Valve: If the pressure switch does not shut off the air compressor at its
“cut-out” pressure setting, the safety valve will protect against high pressure by
“popping out” at its factory set pressure (slightly higher than the pressure switch
“cut-out” setting).
D
Tank Pressure Gauge: The tank pressure gauge indicates the reserve air pressure
in the tank.
E
Air Compressor Pump: Compresses air into the air tank. Working air is not
available until the compressor has raised the air tank pressure above that required
at the air outlet.
