• DONOTinstalllubricatorsbetweenthe
tank and any spray equipment, air tool or
accessory requiring oil-free ltered air.
• Drainalltraps,ltersanddirtlegsdaily.
AIR FLOW
AIR FLOW
FEEDER LINES SLOPE
WITH AIR FLOW
DRAIN
LEGS
MAIN DISTRIBUTION AIR LINES
Slope pipe in dir
w.
W
bottom of pipe to drain legs,
preventing it from entering feeder
lines.
AIR USAGE
LINES
FILTER /
MOISTURE
TRAP
DRAIN
VALVES
5 MICRON
FILTER
.01 MICRON
FILTER
SPR AY
GUN
AIR
TOOL
FILTER /
MOISTURE
TRAP
DIRT
LEGS
DRAIN
VALVES
DRAIN
VALVE
LUBRICATOR
REGULATOR
AIR DISCHARGE VALVE
REGUL ATOR
BALL
FILTER
FLEXIBLE
COUPLING

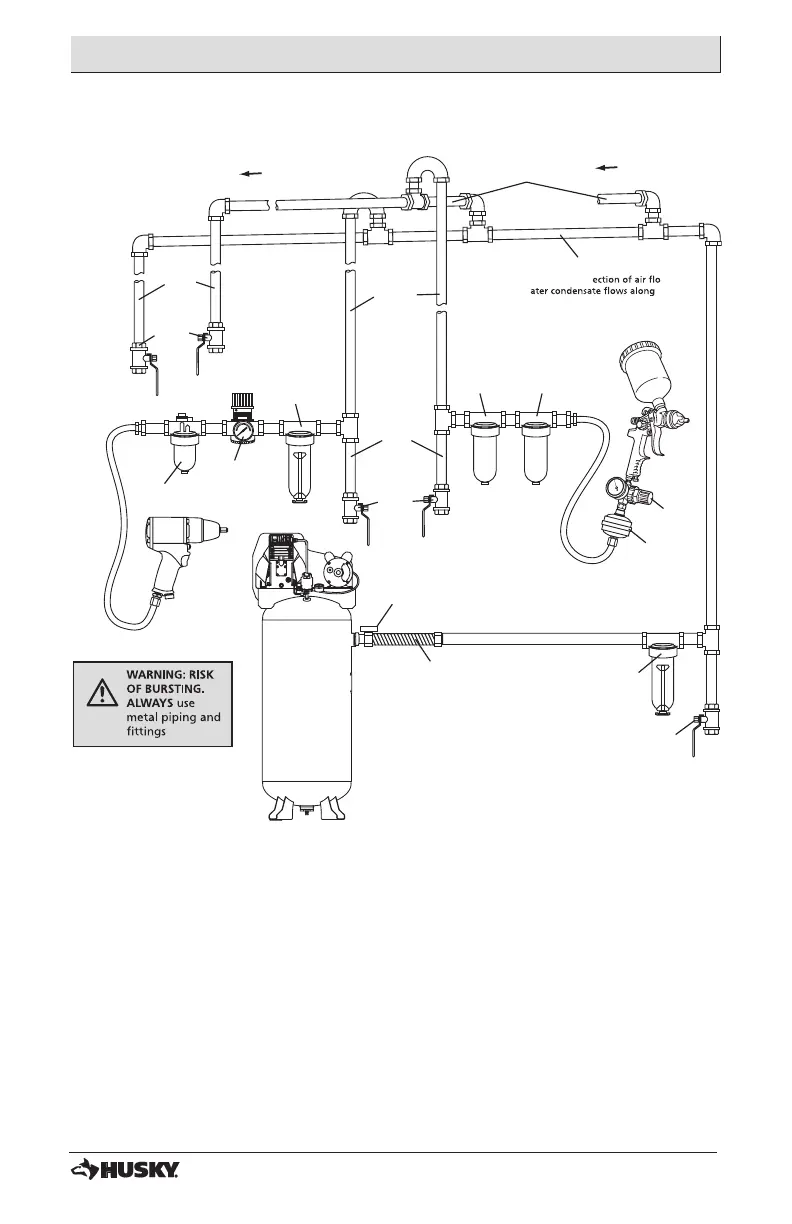

TYPICAL
COMPRESSED AIR
DISTRIBUTION
SYSTEM
FOR BEST PERFORMANCE
the distance between the
compressor and the
moisture trap should be as
long as possible
FIGURE 1
Air Distribution System (continued)
