ASSEMBLY
10 – English

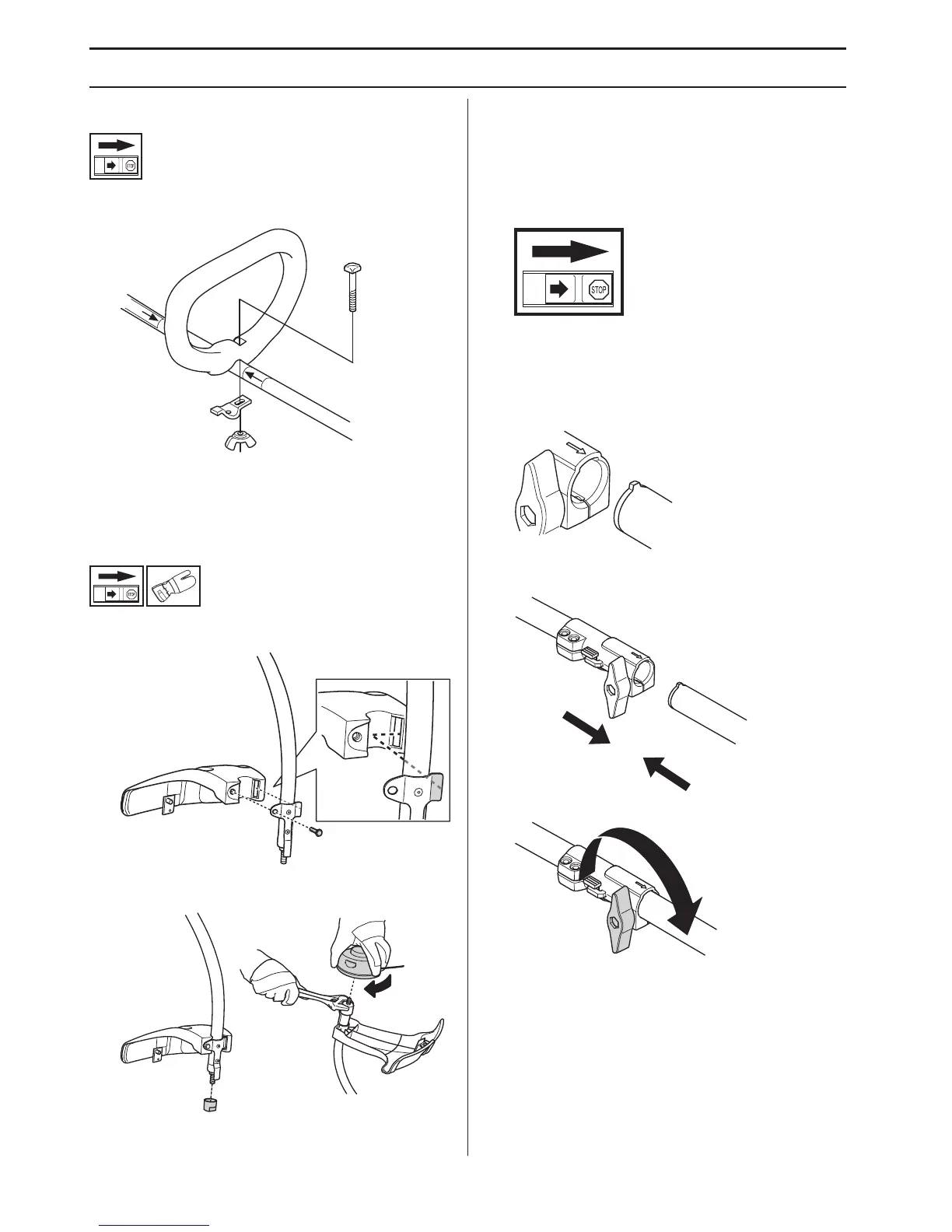

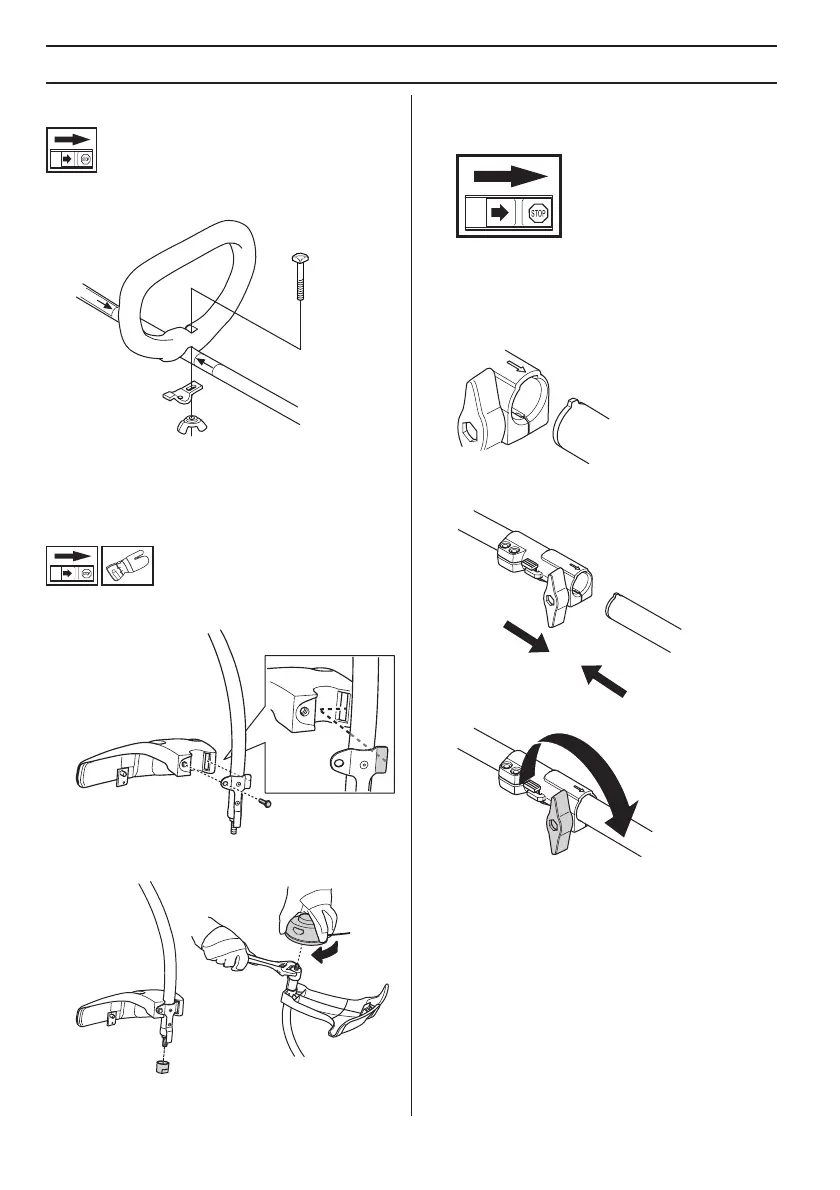

Fitting the loop handle
• Clip the loop handle onto the shaft. Note that the loop
handle must be fitted between the arrows on the shaft.
• Fit the bolt, securing plate and wing nut as shown in
the diagram. Tighten the wing nut.
Fitting the trimmer guard and
trimmer head
• Fit the guard as shown in the diagram. Tighten
securely.
• Fit the dust cup on the shaft. The nut must be
completely covered by the dust cup.
• Hold the dust cup with a spanner to prevent the shaft
from rotating.
• Screw the trimmer head onto the shaft.
Assembling and dismantling the
two-piece shaft (122LDx-series)
Assembly:
• Loosen the coupling by turning the knob.
• Align the tab of the attachment (A) with the arrow on
the coupling (B).
• Push the attachment into the coupling until the
attachment snaps into place.
Before using the unit, tighten the knob securely.
A
B
