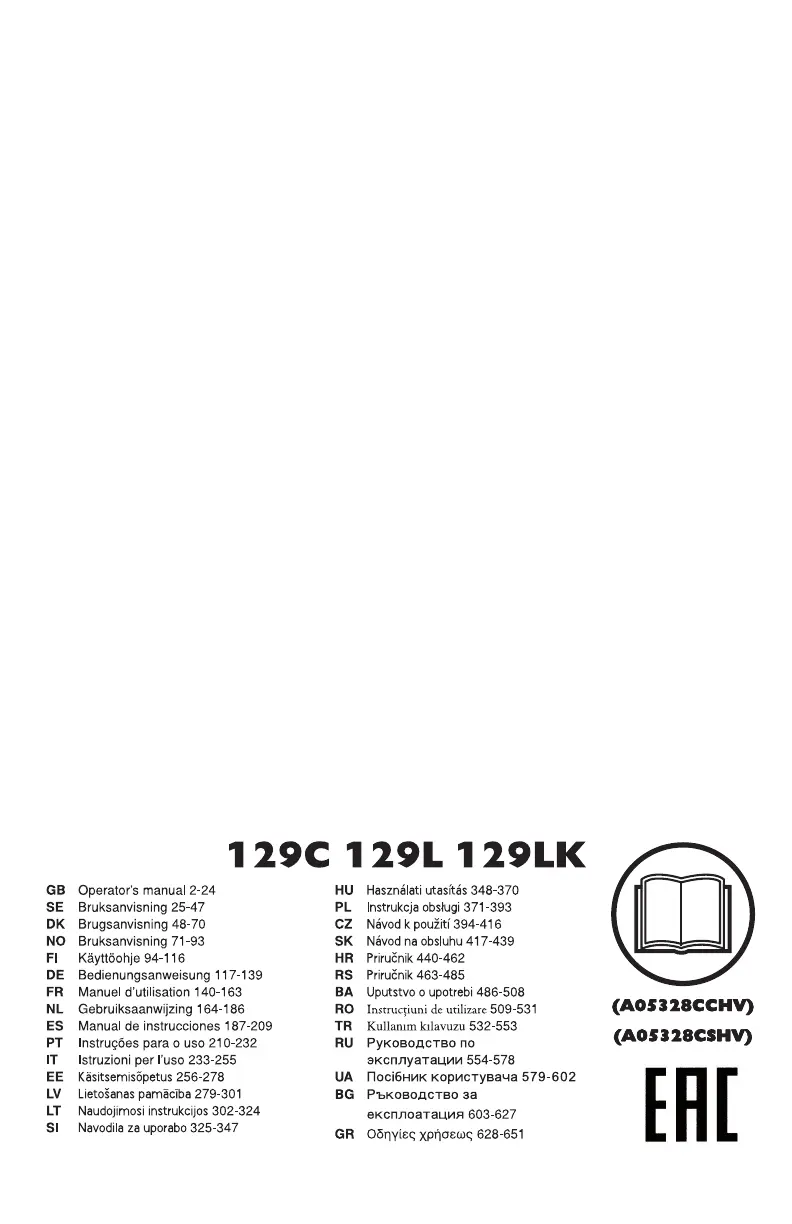

Husqvarna 129lk - User Manual

Other manuals for Husqvarna 129lk

Workshop Manual62 pages

Questions and Answers

B
brossAug 16, 2025
Why is my Husqvarna Brush Cutter difficult to start?
- J
  Jason ParkerAug 16, 2025
  If your Husqvarna Brush Cutter is difficult to start, several factors could be the cause. It might be due to a blocked fuel filter, which requires checking and replacement. Another cause could be a blocked fuel hose, inspect and clear it to resolve the issue. Air in the fuel ducts can also cause starting problems, so remove any air present. Ensure you are using the correct fuel type. Other potential issues include a faulty needle valve (replace it), a damaged needle valve lever arm (replace it), or a lever arm that isn't working correctly (adjust it). A damaged control diaphragm or its faulty seal should be replaced. Also, check for a jammed or worn needle valve, or any foreign objects in the needle valve guide; clear or replace as necessary.
P
Patrick HerreraAug 19, 2025
What to do if Husqvarna Brush Cutter has flooding, fuel leakage?
- C
  Charles HodgesAug 19, 2025
  If your Husqvarna Brush Cutter is experiencing flooding or fuel leakage, begin by tightening any loose screws on the pump cover. A damaged, too high, or improperly working needle valve lever arm should be addressed by replacement or adjustment. Replace a deformed needle valve spring. Also, a damaged control diaphragm or a faulty seal should be replaced. Finally, replace a worn needle valve, and remove any foreign objects from the needle valve guide.
S
Stephen WalkerAug 22, 2025
Why Husqvarna Brush Cutter idling does not stabilize?
- Q
  qbrooksAug 22, 2025
  If the idling on your Husqvarna Brush Cutter is unstable, several factors could be the cause. Begin by adjusting the stop screw for the throttle to ensure it's working correctly. Check and replace the fuel filter if it's blocked. Inspect the fuel hose for any blockages and clear them. Remove any air in the fuel ducts. Ensure you are using the correct fuel type. Replace the needle valve if it's faulty. Verify that the carburetor is correctly fitted. Adjust the needle valve's lever arm for proper operation and ensure the needle valve's spring is correctly fitted. Replace the control diaphragm if it's damaged. Finally, replace the needle valve if it's worn, and remove any foreign objects from the needle valve guide.
B
Billy AndersonAug 26, 2025
What to do if Husqvarna Brush Cutter stops when idling?
- P
  Paul CooperAug 26, 2025
  If your Husqvarna Brush Cutter stops when idling, begin by adjusting the stop screw for the throttle to ensure proper function. Check and replace the fuel filter if it is blocked. Inspect the fuel hose and clear any blockages. Remove any air from the fuel ducts. Replace the needle valve if it's faulty, and replace the heat insulation seal if it's faulty. Adjust the needle valve's lever arm height if it's too high or adjust the lever arm for proper operation if it does not work correctly. Replace the needle valve's spring if it's deformed or ensure the spring is fitted correctly. Replace the needle valve if it is worn, and remove any foreign object in the needle valve guide.
M
megan87Aug 28, 2025
Why is my Husqvarna Brush Cutter difficult to prime when starting?
- S
  Sarah BellAug 28, 2025
  If your Husqvarna Brush Cutter is difficult to prime when starting, it could be due to a blocked fuel filter, so check and replace it if needed. Another cause might be a blocked fuel hose, inspect and clear it. Air in the fuel ducts can also cause this issue, remove any air present. If the flow bellows are damaged, replace them. Other potential issues include a faulty needle valve (replace it), a lever arm that isn't working correctly (adjust it). A damaged control diaphragm or its faulty seal should be replaced. Also, check for a jammed needle valve and clear it.
M
Mark ThompsonAug 31, 2025
Why Husqvarna Brush Cutter engine does not idle?
- M
  michaeltuckerAug 31, 2025
  If the engine of your Husqvarna Brush Cutter does not idle, it might be caused by a blocked fuel filter, so check and replace it. Inspect and clear the fuel hose if it's blocked. Also, remove any air in the fuel ducts. Ensure the carburetor is correctly fitted. If the needle valve’s lever arm does not work correctly, adjust it for proper operation.
D
Desiree PopeSep 3, 2025
Why Husqvarna Brush Cutter idles too slowly?
- S
  Scott MillerSep 3, 2025
  If your Husqvarna Brush Cutter idles too slowly, the issue might be a faulty heat insulation seal, which should be replaced. A damaged or improperly adjusted needle valve lever arm could also be the cause; replace the damaged lever arm or adjust the lever arm height, or adjust the lever arm for proper operation. If the needle valve is worn, it should be replaced, and any foreign object in the needle valve guide should be removed.
V
Valerie GuzmanSep 6, 2025
Why Husqvarna Brush Cutter engine does not accelerate?
- D
  Dr. Luke KaneSep 6, 2025
  If your Husqvarna Brush Cutter engine isn't accelerating, several issues could be responsible. Start by checking for a blocked fuel filter and replace it if necessary. Inspect the fuel hose for blockages and clear them. Also, ensure there's no air in the fuel ducts. Check for vacuum pulse leaks or blockages in the vacuum pulse duct. Tighten any loose screws on the pump cover. A faulty pump diaphragm or needle valve should be replaced. Make sure the carburetor is correctly fitted. Address any issues with the needle valve's lever arm, such as damage (replace), incorrect height (adjust), or improper function (adjust). Also, ensure the needle valve spring is correctly fitted and clear any jams in the needle valve. Finally, replace a damaged control diaphragm.
K
Kristen GuerreroSep 12, 2025
Why Husqvarna Brush Cutter engine stops when decelerating?
- A
  Anne MooreSep 12, 2025
  If the engine of your Husqvarna Brush Cutter stops when decelerating, it could be due to a faulty pump diaphragm, which should be replaced. Additionally, the needle valve's lever arm might be too high and needs adjustment, or it may not be working correctly, requiring adjustment for proper operation. A worn needle valve should be replaced, and any foreign object in the needle valve guide should be removed.

Summary

KEY TO SYMBOLS

Symbols on the machine and;or in the manual

Explains symbols found on the machine and in the manual.

Use only non-metallic, flexible cutting attachments

GENERAL SAFETY PRECAUTIONS

Note before starting

Important points to consider before operating the machine.

Important safety guidelines

General important safety guidelines for operating the machine.

Stop switch operation

Cutting equipment guidelines

Warning: Noise exposure and hearing impairment

Warning about hearing damage from prolonged noise exposure.

Personal protective equipment (PPE)

Details on essential personal protective equipment (PPE).

Cutting attachment guard

Trimmer head usage

Warning: Machine modification risks

Warning against modifying the machine without manufacturer permission.

Warning: Muffler chemicals

Warning: Dangers of improper machine use

Warning about the inherent dangers of using the machine improperly.

Machines safety equipment

Muffler information

Warning: Hot exhaust fumes

Warning: Hot mufflers

Throttle trigger lockout function

Safety: Stop engine before cutting attachment work

Crucial safety step to stop the engine before working on cutting attachments.

Warning: Electromagnetic fields and medical implants

Warning about electromagnetic fields and medical implants.

Warning: Use only with correct safety equipment

Warning against using the machine with defective safety equipment.

Warning: Faulty cutting attachment risks

Warning: Exhaust fumes hazards

Warning: Child safety

WHAT IS WHAT?

Identifying grass trimmer parts

Identifies key parts of the grass trimmer with numbered labels.

ASSEMBLY

Fitting the loop handle

Assembling cutting equipment

Two-piece shaft assembly and dismantling

Fitting trimmer guard and head (129 L, 129 LK)

Fitting trimmer guard and head (129 C)

Warning: Use approved guard only

Warning regarding the use of cutting attachments without proper guards.

FUEL HANDLING

Fuel safety precautions

Safety precautions to follow when handling fuel.

Fuel mixing instructions

Detailed instructions on how to properly mix fuel and oil.

Transport and storage guidelines

Refueling procedures

Steps and precautions for safely refueling the machine.

Fuel type information

Information about the type of fuel and oil mixture required.

Warning: Hot catalytic converter muffler

Petrol specifications

Fire prevention precautions

Safety measures to reduce the risk of fire during refueling.

Two-stroke oil details

Warning: Fuel handling safety

Warning about the risks associated with handling fuel.

Warning: Fuel flammability and inhalation hazards

Safety warning regarding the flammability and inhalation hazards of fuel.

STARTING AND STOPPING

Pre-start checks

Essential checks to perform before starting the engine.

Stopping the engine

Instructions on how to stop the engine safely.

Starting and stopping overview

Starting a cold engine

Step-by-step instructions for starting a cold engine.

Starting a warm engine

Step-by-step instructions for starting a warm engine.

Warning: Clutch cover and shaft fitting

Warning about fitting the clutch cover and shaft before starting.

Warning: Choke position and attachment rotation

WORKING TECHNIQUES

General working instructions

Basic working techniques

Basic safety rules

Fundamental safety rules to observe during operation.

Grass trimming with trimmer head

Warning: Do not remove cut material while running

Warning about removing cut material while the engine is running.

Trimming technique

Warning: Watch for thrown objects

Clearing technique

Cutting technique

Warning: Debris caught in guard

MAINTENANCE

Carburettor adjustment

Cooling system cleaning

Air filter cleaning

Idle speed adjustment

Spark plug maintenance

Cleaning the air filter

Warning: Idle speed adjustment failure

Warning about not using the machine if idle speed cannot be adjusted correctly.

Warning: Use correct spark plug type

Caution about using the correct spark plug type to avoid damage.

Oiling the air filter instructions

Muffler maintenance

Two-piece shaft lubrication

Bevel gear check

Caution: Do not use with defective muffler

Warning: Hot mufflers with catalytic converters

MAINTENANCE

Maintenance schedule

A schedule of recommended maintenance tasks.

TECHNICAL DATA

Technical data specifications

Specifications for the machine models 129C, 129L, 129LK.

Husqvarna 129lk Specifications

General

Engine Type	2-stroke
Cylinder Displacement	27.6 cm³
Power Output	0.85 kW
Maximum Power Speed	8000 rpm
Weight (excl. cutting equipment)	4.67 kg
Shaft Type	Straight
Cutting Width	430 mm
Starter System	Recoil
