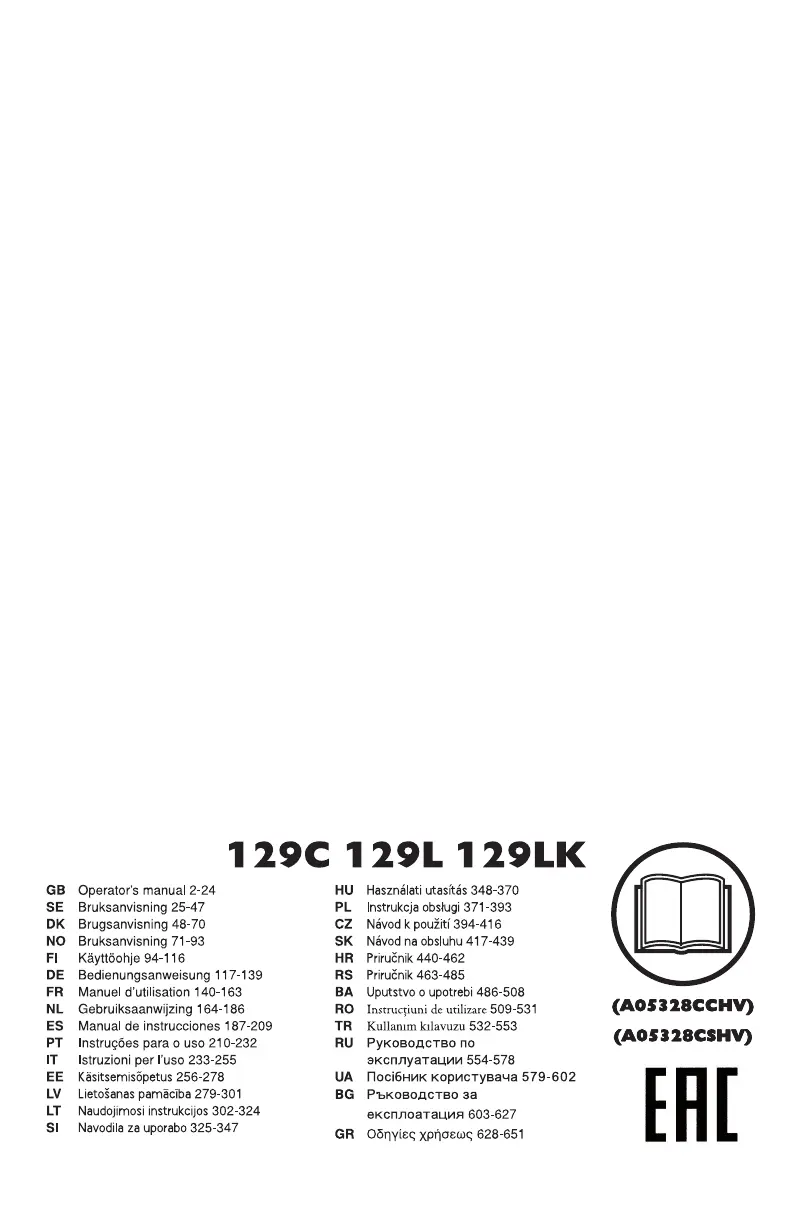

Husqvarna 129l - User Manual

Other manuals for Husqvarna 129l

Workshop Manual62 pages

Questions and Answers

L
Leah WheelerAug 16, 2025
Why is my Husqvarna Brush Cutter difficult to start?
- F
  Fernando MeyersAug 16, 2025
  If your Husqvarna Brush Cutter is difficult to start, several factors could be the cause. It might be due to a blocked fuel filter, which requires checking and replacement. Another cause could be a blocked fuel hose, inspect and clear it to resolve the issue. Air in the fuel ducts can also cause starting problems, so remove any air present. Ensure you are using the correct fuel type. Other potential issues include a faulty needle valve (replace it), a damaged needle valve lever arm (replace it), or a lever arm that isn't working correctly (adjust it). A damaged control diaphragm or its faulty seal should be replaced. Also, check for a jammed or worn needle valve, or any foreign objects in the needle valve guide; clear or replace as necessary.
W
William PowellAug 19, 2025
What to do if Husqvarna Brush Cutter has flooding, fuel leakage?
- A
  Alice GarciaAug 19, 2025
  If your Husqvarna Brush Cutter is experiencing flooding or fuel leakage, begin by tightening any loose screws on the pump cover. A damaged, too high, or improperly working needle valve lever arm should be addressed by replacement or adjustment. Replace a deformed needle valve spring. Also, a damaged control diaphragm or a faulty seal should be replaced. Finally, replace a worn needle valve, and remove any foreign objects from the needle valve guide.
H
Heather RodriguezAug 22, 2025
Why Husqvarna Brush Cutter idling does not stabilize?
- J
  Jennifer WolfeAug 22, 2025
  If the idling on your Husqvarna Brush Cutter is unstable, several factors could be the cause. Begin by adjusting the stop screw for the throttle to ensure it's working correctly. Check and replace the fuel filter if it's blocked. Inspect the fuel hose for any blockages and clear them. Remove any air in the fuel ducts. Ensure you are using the correct fuel type. Replace the needle valve if it's faulty. Verify that the carburetor is correctly fitted. Adjust the needle valve's lever arm for proper operation and ensure the needle valve's spring is correctly fitted. Replace the control diaphragm if it's damaged. Finally, replace the needle valve if it's worn, and remove any foreign objects from the needle valve guide.
J
jasonshieldsAug 25, 2025
What to do if Husqvarna Brush Cutter stops when idling?
- E
  Evelyn PierceAug 26, 2025
  If your Husqvarna Brush Cutter stops when idling, begin by adjusting the stop screw for the throttle to ensure proper function. Check and replace the fuel filter if it is blocked. Inspect the fuel hose and clear any blockages. Remove any air from the fuel ducts. Replace the needle valve if it's faulty, and replace the heat insulation seal if it's faulty. Adjust the needle valve's lever arm height if it's too high or adjust the lever arm for proper operation if it does not work correctly. Replace the needle valve's spring if it's deformed or ensure the spring is fitted correctly. Replace the needle valve if it is worn, and remove any foreign object in the needle valve guide.
C
Cheryl GonzalezAug 28, 2025
Why is my Husqvarna Brush Cutter difficult to prime when starting?
- D
  donaldjohnsonAug 28, 2025
  If your Husqvarna Brush Cutter is difficult to prime when starting, it could be due to a blocked fuel filter, so check and replace it if needed. Another cause might be a blocked fuel hose, inspect and clear it. Air in the fuel ducts can also cause this issue, remove any air present. If the flow bellows are damaged, replace them. Other potential issues include a faulty needle valve (replace it), a lever arm that isn't working correctly (adjust it). A damaged control diaphragm or its faulty seal should be replaced. Also, check for a jammed needle valve and clear it.
D
Dylan ZunigaAug 31, 2025
Why Husqvarna Brush Cutter engine does not idle?
- M
  Michelle ParkerAug 31, 2025
  If the engine of your Husqvarna Brush Cutter does not idle, it might be caused by a blocked fuel filter, so check and replace it. Inspect and clear the fuel hose if it's blocked. Also, remove any air in the fuel ducts. Ensure the carburetor is correctly fitted. If the needle valve’s lever arm does not work correctly, adjust it for proper operation.
J
James AdamsSep 3, 2025
Why Husqvarna Brush Cutter idles too slowly?
- C
  Chelsea LoganSep 3, 2025
  If your Husqvarna Brush Cutter idles too slowly, the issue might be a faulty heat insulation seal, which should be replaced. A damaged or improperly adjusted needle valve lever arm could also be the cause; replace the damaged lever arm or adjust the lever arm height, or adjust the lever arm for proper operation. If the needle valve is worn, it should be replaced, and any foreign object in the needle valve guide should be removed.
D
davidmartinSep 6, 2025
Why Husqvarna Brush Cutter engine does not accelerate?
- J
  jennaharveySep 6, 2025
  If your Husqvarna Brush Cutter engine isn't accelerating, several issues could be responsible. Start by checking for a blocked fuel filter and replace it if necessary. Inspect the fuel hose for blockages and clear them. Also, ensure there's no air in the fuel ducts. Check for vacuum pulse leaks or blockages in the vacuum pulse duct. Tighten any loose screws on the pump cover. A faulty pump diaphragm or needle valve should be replaced. Make sure the carburetor is correctly fitted. Address any issues with the needle valve's lever arm, such as damage (replace), incorrect height (adjust), or improper function (adjust). Also, ensure the needle valve spring is correctly fitted and clear any jams in the needle valve. Finally, replace a damaged control diaphragm.
R
rmillerSep 12, 2025
Why Husqvarna Brush Cutter engine stops when decelerating?
- D
  Debra RhodesSep 12, 2025
  If the engine of your Husqvarna Brush Cutter stops when decelerating, it could be due to a faulty pump diaphragm, which should be replaced. Additionally, the needle valve's lever arm might be too high and needs adjustment, or it may not be working correctly, requiring adjustment for proper operation. A worn needle valve should be replaced, and any foreign object in the needle valve guide should be removed.

Summary

KEY TO SYMBOLS

Understanding Safety Symbols

Explains the meaning of various safety and operational symbols.

IMPORTANT SAFETY WARNINGS

Noise Exposure Hazard

Warns about potential permanent hearing impairment from prolonged noise exposure.

Unauthorized Machine Modifications

Prohibits modifying the machine without manufacturer permission due to safety risks.

Dangers of Improper Trimmer Use

Highlights risks of serious or fatal injury from careless or incorrect use.

INTRODUCTION

Husqvarna Company Background

Provides historical context and overview of Husqvarna's product range.

WHAT IS WHAT?

Grass Trimmer Component Identification

Identifies and labels all major parts of the grass trimmer.

GENERAL SAFETY PRECAUTIONS

Important Safety Guidelines

Covers essential operational safety points, including PPE and machine integrity.

Personal Protective Equipment (PPE) Overview

Details the necessary protective gear for safe operation.

Specific PPE Requirements

Specifies requirements for helmets, hearing, eye protection, gloves, boots, and clothing.

Throttle Trigger Lockout Operation

Explains the function and proper operation of the throttle trigger lockout.

Stop Switch and Guard Safety

Covers the stop switch function and safety checks for the cutting attachment guard.

Muffler Safety and Maintenance

Discusses muffler function, spark arrestor mesh, and safety warnings.

Cutting Equipment Safety

Guidelines for safe use and maintenance of cutting attachments.

Trimmer Head and Cord Usage

Proper installation and usage tips for trimmer heads and cords.

ASSEMBLY

Fitting the Loop Handle

Instructions for attaching the loop handle to the shaft.

Two-Piece Shaft Assembly;Disassembly

Step-by-step guide for connecting and disconnecting the two-piece shaft.

Installing Cutting Attachment Guard;Head

Procedures for fitting the trimmer guard and trimmer head.

FUEL HANDLING

Fuel Safety and Handling

Crucial safety measures for handling and preventing fuel-related hazards.

Transporting and Storing Fuel;Machine

Proper procedures for safe transport and storage of fuel and the machine.

Fuel and Oil Specifications

Details on recommended petrol octane and two-stroke oil types.

Fuel Mixing Procedure

Step-by-step instructions for correctly mixing fuel and oil.

Safe Fueling Practices

Essential safety steps to follow during the refueling process.

STARTING AND STOPPING

Pre-Start Checks and Procedures

Verifies machine readiness and safety before engine start.

Starting a Cold Engine

Detailed process for successfully starting a cold engine.

Starting a Warm Engine

Procedure for starting an engine that is already warm.

Engine Stopping Procedure

Instructions on how to turn off the engine correctly.

WORKING TECHNIQUES

General Operating Instructions

Provides overall guidance and basic safety rules for working with the trimmer.

Essential Safety Rules for Operation

Key safety principles to ensure safe operation.

Grass Trimming Techniques

Methods for effective grass trimming and clearing.

Cutting and Sweeping Methods

Techniques for cutting grass and sweeping debris.

MAINTENANCE

Carburettor Idle Speed Adjustment

Steps for adjusting the engine's idle speed for optimal performance.

Muffler Safety and Maintenance

Covers muffler checks, spark arrestor mesh cleaning, and safety warnings.

Cooling System Maintenance

Instructions for cleaning the engine's cooling system to prevent overheating.

Spark Plug Inspection and Service

Guidance on checking, cleaning, and replacing the spark plug.

Two-Piece Shaft Lubrication

Details on lubricating the splined coupling of the two-piece shaft.

Air Filter Cleaning and Oiling

Procedures for cleaning and properly oiling the air filter.

Bevel Gear Greasing Procedure

Instructions for checking and greasing the bevel gear with special grease.

Recommended Maintenance Schedule

A comprehensive schedule of regular maintenance tasks.

TECHNICAL DATA

Key Technical Specifications

Provides detailed technical data on the engine, dimensions, weight, noise, and vibration.

Recommended Optional Accessories List

Lists compatible optional accessories for the specified trimmer models.

EC Declaration of Conformity

Manufacturer's statement confirming compliance with relevant EU directives.

Husqvarna 129l Specifications

General

Power Output	0.85 kW
Tube Diameter	25.4 mm
Engine Type	2-stroke
Shaft Type	Straight
Starter System	Smart Start
Fuel Tank Volume	0.34 l
Engine Displacement	27.6 cm³
