Husqvarna 129l - ASSEMBLY; Fitting the Loop Handle; Two-Piece Shaft Assembly;Disassembly

ASSEMBLY

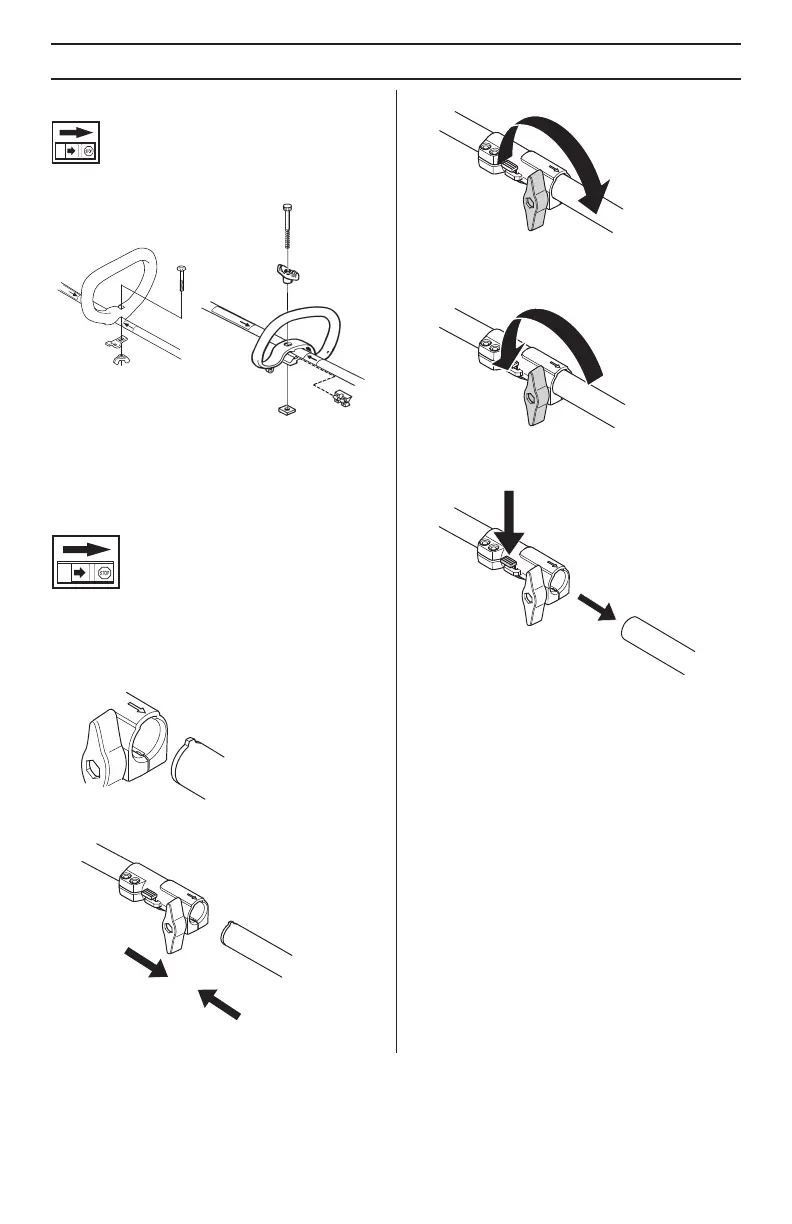

Fitting the loop handle
• Clip the loop handle onto the shaft. Note that the loop
handle
m
ust
be
fitted
between the arrows on the shaft.
• Fit the hardware as shown in the diagram and tighten.
Assembling and dismantling the
two-piece shaft
(129LK)
Assembly:
• Loosen the coupling by turning the knob.
• Align the tab of the attachment (A) with the arrow on
the coupling (B).
• Push the attachment into the coupling until the
attachment snaps into place.
• Before using the unit, tighten the knob securely.
Dismantling:
• Loosen the coupling by turning the knob (at least 3
times).
• Push and hold the button (C). While securely holding
the engine end, pull the attachment straight out of the
coupling.
A
B
C
10
129C/L
129LK
