Husqvarna 545RX User Manual

English – 7
WHA T IS WHA T?

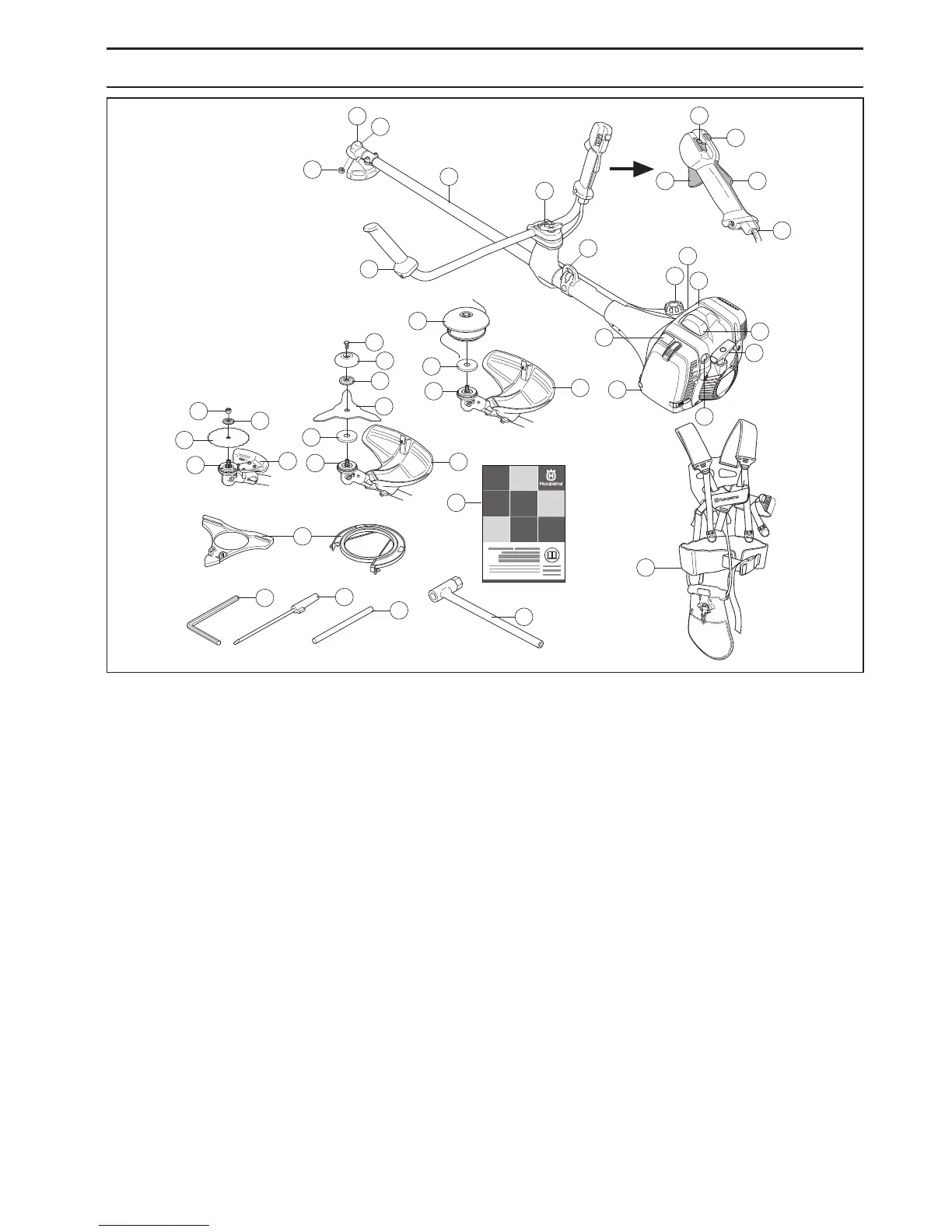

What is what on the brush cutter? (345 FR)
26
27
28
30
32
31
34
9
33
8
7
29
24
21
23
20
4
1
22
4
25
20
22
1
4
20
19
21
6
3
2
5
10
17
19
11
14
16
15
12
18
13
35
1 Blade
2 Grease filler cap, bevel gear
3 Bevel gear
4 Cutting attachment guard
5 Shaft
6 Handlebar
7 Throttle trigger
8 Stop switch
9 Throttle lockout
10 Support eyes for harness
11 Cylinder cover
12 Starter handle
13 Fuel tank
14 Choke control
15 Air purge
16 Air filter cover
17 Handle adjustment
18 Spark plug cap and spark plug
19 Locking nut
20 Drive disc
21 Support flange
22 Metal cup
23 Support cup
24 Locking screw
25 Trimmer head
26 Transport guard
27 Allen key
28 Carburettor screwdriver
29 Locking pin
30 Harness
31 Socket spanner
32 Operator’s manual
33 Start throttle button
34 Adjusting the throttle wire
35 Decompression valve

Husqvarna 545RX Specifications

General

Engine Power	2.1 kW
Cylinder Displacement	45.7 cm³
Weight (excl. cutting equipment)	8.9 kg
Fuel Tank Volume	0.9 L
Sound Power Level, Guaranteed (LWA)	117 dB(A)
Engine Type	2-stroke
Shaft Type	Straight
