English – 13

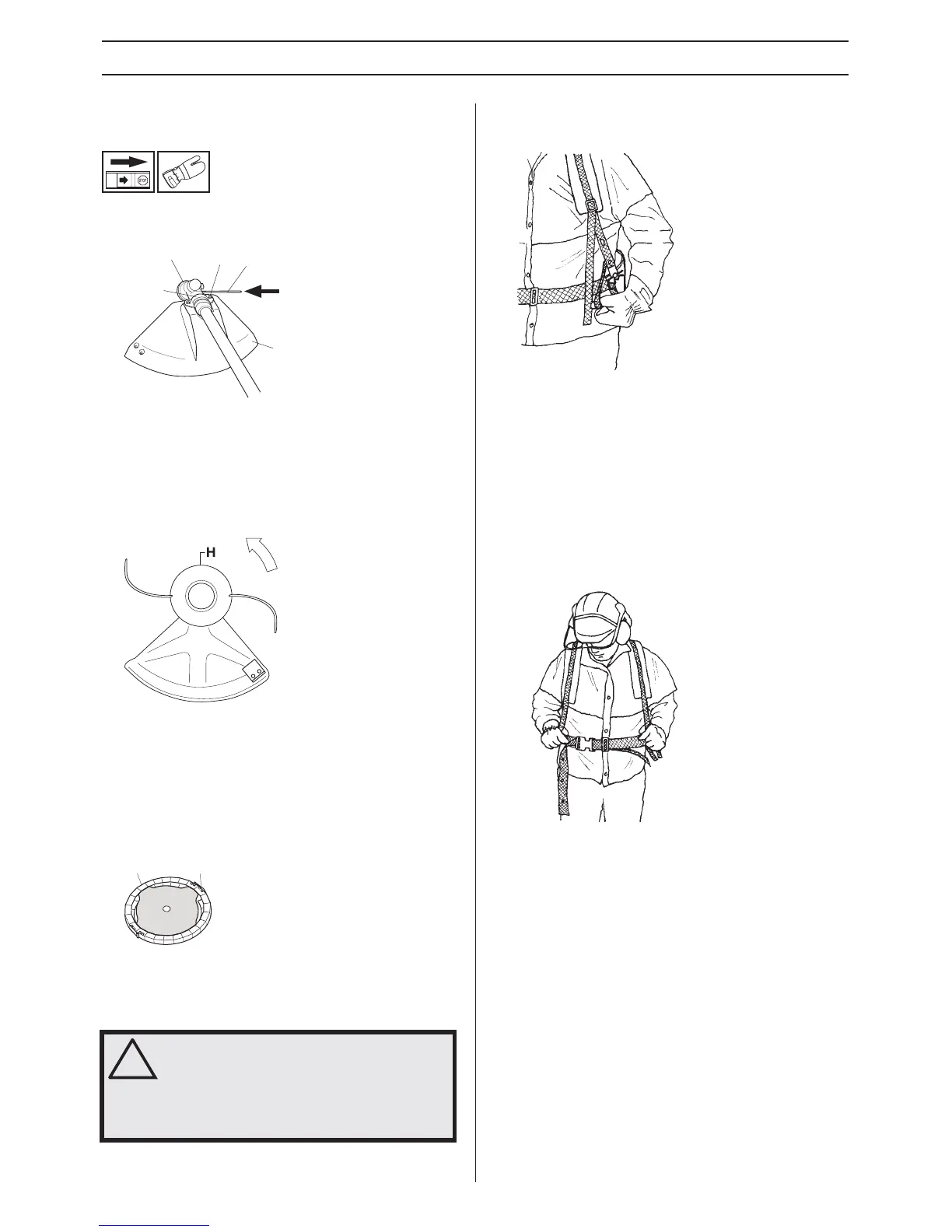

ASSEMBLY
Fitting other guards and cutting
attachments
• Fit the guard (A) to the gear housing using the support
plate (M) and two screws (L).
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive disc
aligns with the corresponding hole in the gear housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Screw on the trimmer head (H) in the opposite direction to
the direction of rotation.
• To dismantle, follow the instructions in the reverse order.
Fitting the transport guard
1 Insert the tips of the blade into the grooves in the transport
guard (A).
2 Wind the transport guard around the teeth of the blade,
then clip the ends together (B).
Adjusting the harness and brush
cutter
Quick release
On the front is an easily accessible, quick release:
• Pull out the red strap.
• The hip strap and one shoulder strap will then be
automatically released at the same time and the harness
and engine unit will slide to the ground.
Spreading the load on your shoulders
A well-adjusted harness and machine makes work much
easier. Adjust the harness for the best working position.
Tension the side straps so that the weight is evenly distributed
across both shoulders.
!
WARNING! When using a brush cutter it
must always be hooked securely to the
harness. Otherwise you will be unable to
control the clearing saw safely and this can
result in injury to yourself or others. Never
use a harness with a defective quick release.
M
L
A
C
B
A B
