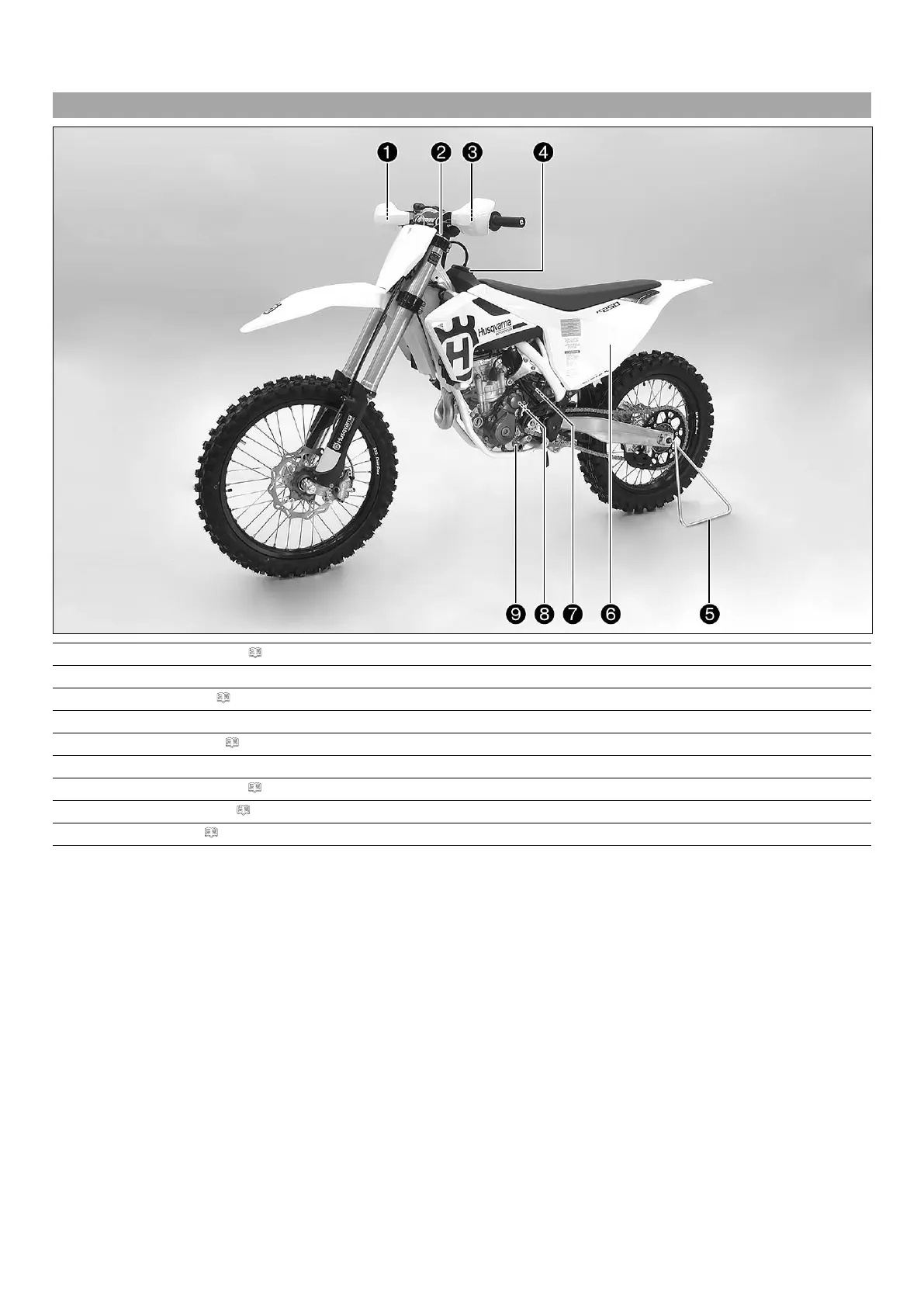

4 VIEW OF VEHICLE 8

4.1 View of vehicle, front left (example)

E00258-10

1 Hand brake lever ( p. 11)

2 Fork air pressure setting

3 Clutch lever ( p. 11)

4 Filler cap

5 Plug-in stand ( p. 15)

6 Air filter box cover

7 Cold start button ( p. 13)

8 Engine number ( p. 10)

9 Shift lever ( p. 14)

Default Chapter4
- Table of Contents4
1 Means of Representation6
- Symbols Used6
- Formats Used6
2 Safety Advice7
- Use Definition - Intended Use7
- Degrees of Risk and Symbols7
- Tampering Warning7
- Safe Operation7
- Protective Clothing8
- Work Rules8
- Environment8
- Owner's Manual8
3 Important Notes9
- Manufacturer and Implied Warranty9
- Operating and Auxiliary Substances9
- Spare Parts, Accessories9
- Service9
- Figures9
- Customer Service9
4 View of Vehicle10
- View of Vehicle, Front Left (Example)10
- View of Vehicle, Rear Right (Example)11
5 Serial Numbers12
- Chassis Number12
- Type Label12
- Engine Number12
- Fork Part Number12
- Shock Absorber Article Number12
6 Controls13
- Clutch Lever13
- Hand Brake Lever13
- Throttle Grip13
- Kill Switch13
- Electric Starter Button13
- Combination Switch14
- Overview of Indicator Lamps14
- Opening the Filler Cap14
- Closing the Filler Cap15
- Cold Start Button15
- Idle Speed Adjusting Screw16
- Shift Lever16
- Foot Brake Lever16
- Plug-In Stand17
- Service Hour Counter17
7 Preparing for Use18
- Advice on First Use18
- Running in the Engine19
- Starting Power of Lithium-Ion Batteries at Low Temperatures19
- Preparing the Vehicle for Difficult Riding Conditions19
- Preparing for Rides on Dry Sand20
- Preparing for Rides on Wet Sand20
- Preparing for Rides on Wet and Muddy Surfaces21
- Preparing for Rides at High Temperatures and Low Speeds21
- Preparing for Rides at Low Temperature and in Snow21
8 Riding Instructions22
- Checks and Maintenance before Putting into Operation22
- Starting22
- Activating Launch Control23
- Activating Traction Control23
- Starting off24
- Shifting, Riding24
- Applying the Brakes24
- Stopping, Parking25
- Transport25
- Refueling26
9 Service Schedule27
- Service Schedule27
- Additional Information27
- Required Work27
- Recommended Work28
10 Tuning the Chassis29
- Checking the Basic Chassis Setting with the Rider's Weight29
- Air Suspension AER 4829
- Compression Damping of the Shock Absorber29
- Adjusting the Low-Speed Compression Damping of the Shock Absorber30
- Adjusting the High-Speed Compression Damping of the Shock Absorber30
- Adjusting the Rebound Damping of the Shock Absorber31
- Measuring the Rear Wheel Sag Unloaded31
- Checking the Static Sag of the Shock Absorber32
- Checking the Riding Sag of the Shock Absorber32
- Adjusting the Spring Preload of the Shock Absorber32
- Adjusting the Riding Sag33
- Checking the Basic Setting of the Fork34
- Adjusting the Fork Air Pressure34
- Adjusting the Compression Damping of the Fork35
- Adjusting the Rebound Damping of the Fork35
- Handlebar Position36
- Adjusting the Handlebar Position36
11 Service Work on the Chassis37
- Raising the Motorcycle with a Lift Stand37
- Removing the Motorcycle from the Lift Stand37
- Bleeding the Fork Legs37
- Cleaning the Dust Boots of the Fork Legs38
- Removing the Fork Protector38
- Installing the Fork Protector38
- Removing the Fork Legs39
- Installing the Fork Legs39
- Removing the Lower Triple Clamp40
- Installing the Lower Triple Clamp40
- Checking the Steering Head Bearing Play42
- Adjusting the Play of the Steering Head Bearing43
- Greasing the Steering Head Bearing43
- Removing the Start Number Plate43
- Installing the Start Number Plate43
- Removing the Front Fender44
- Installing the Front Fender44
- Removing the Shock Absorber44
- Installing the Shock Absorber46
- Removing the Seat47
- Mounting the Seat48
- Removing the Air Filter Box Cover48
- Installing the Air Filter Box Cover48
- Removing the Air Filter49
- Installing the Air Filter49
- Cleaning the Air Filter and Air Filter Box49
- Removing the Main Silencer50
- Installing the Main Silencer50
- Changing the Glass Fiber Yarn Filling of the Main Silencer51
- Removing the Right Side Cover51
- Installing the Right Side Cover52
- Removing the Fuel Tank52
- Installing the Fuel Tank53
- Checking for Chain Dirt Accumulation54
- Cleaning the Chain55
- Checking the Chain Tension55
- Adjusting the Chain Tension56
- Checking the Chain, Rear Sprocket, Engine Sprocket, and Chain Guide56
- Checking the Frame58
- Checking the Swingarm58
- Checking the Throttle Cable Routing58
- Checking the Rubber Grips59
- Adjusting the Basic Position of the Clutch Lever59
- Checking/Correcting the Fluid Level of the Hydraulic Clutch60
- Changing the Hydraulic Clutch Fluid60
12 Brake System62
- Checking the Free Travel of the Hand Brake Lever62
- Adjusting the Basic Position of the Hand Brake Lever62
- Checking the Brake Discs62
- Checking the Front Brake Fluid Level63
- Adding Front Brake Fluid63
- Checking the Front Brake Linings64
- Changing the Front Brake Linings64
- Checking the Free Travel of Foot Brake Lever66
- Adjusting the Basic Position of the Foot Brake Lever66
- Checking the Rear Brake Fluid Level67
- Adding Rear Brake Fluid68
- Checking the Rear Brake Linings69
- Changing the Rear Brake Linings69
13 Wheels, Tires71
- Removing the Front Wheel71
- Installing the Front Wheel71
- Removing the Rear Wheel72
- Installing the Rear Wheel73
- Checking the Tire Condition74
- Checking the Tire Air Pressure74
- Checking Spoke Tension74
14 Electrical System76
- Removing the Battery76
- Installing the Battery76
- Recharging the Battery77
- Changing the Main Fuse78
15 Cooling System80
- Checking the Antifreeze and Coolant Level80
- Checking the Coolant Level81
- Draining the Coolant81
- Refilling with Coolant82
16 Tuning the Engine83
- Checking the Play in the Throttle Cable83
- Adjusting the Play in the Throttle Cable83
- Setting the Characteristic Map of the Throttle Response84
- Changing the Mapping85
- Adjusting the Idle Speed85
- Teaching the Throttle Valve Position86
- Checking the Basic Position of the Shift Lever86
- Adjusting the Basic Position of the Shift Lever87
17 Service Work on the Engine88
- Changing the Fuel Screen88
- Checking the Engine Oil Level88
- Changing the Engine Oil and Oil Filter, Cleaning the Oil Screen89
- Adding Engine Oil91
18 Cleaning, Care92
- Cleaning the Motorcycle92
19 Storage93
- Putting into Operation after Storage93
20 Troubleshooting94
21 Blink Code96
22 Technical Data98
- Engine98
- Engine Tightening Torques98
- Capacities100
- Engine Oil100
- Coolant100
- Fuel100
- Chassis100
- Electrical System101
- Tires101
- Fork101
- Shock Absorber101
- Chassis Tightening Torques102
23 Substances104
24 Auxiliary Substances106
25 Standards107
26 Index of Special Terms108
27 List of Abbreviations109
28 List of Symbols110
- Yellow and Orange Symbols110
- Index111
