13 WHEELS, TIRES
100
A01274-10
Main work
– Manually press the brake caliper toward the brake disc to
push back the brake piston.
Info
Make sure that you do not press the brake caliper
against the spokes when pushing back the brake pis-
ton.
–

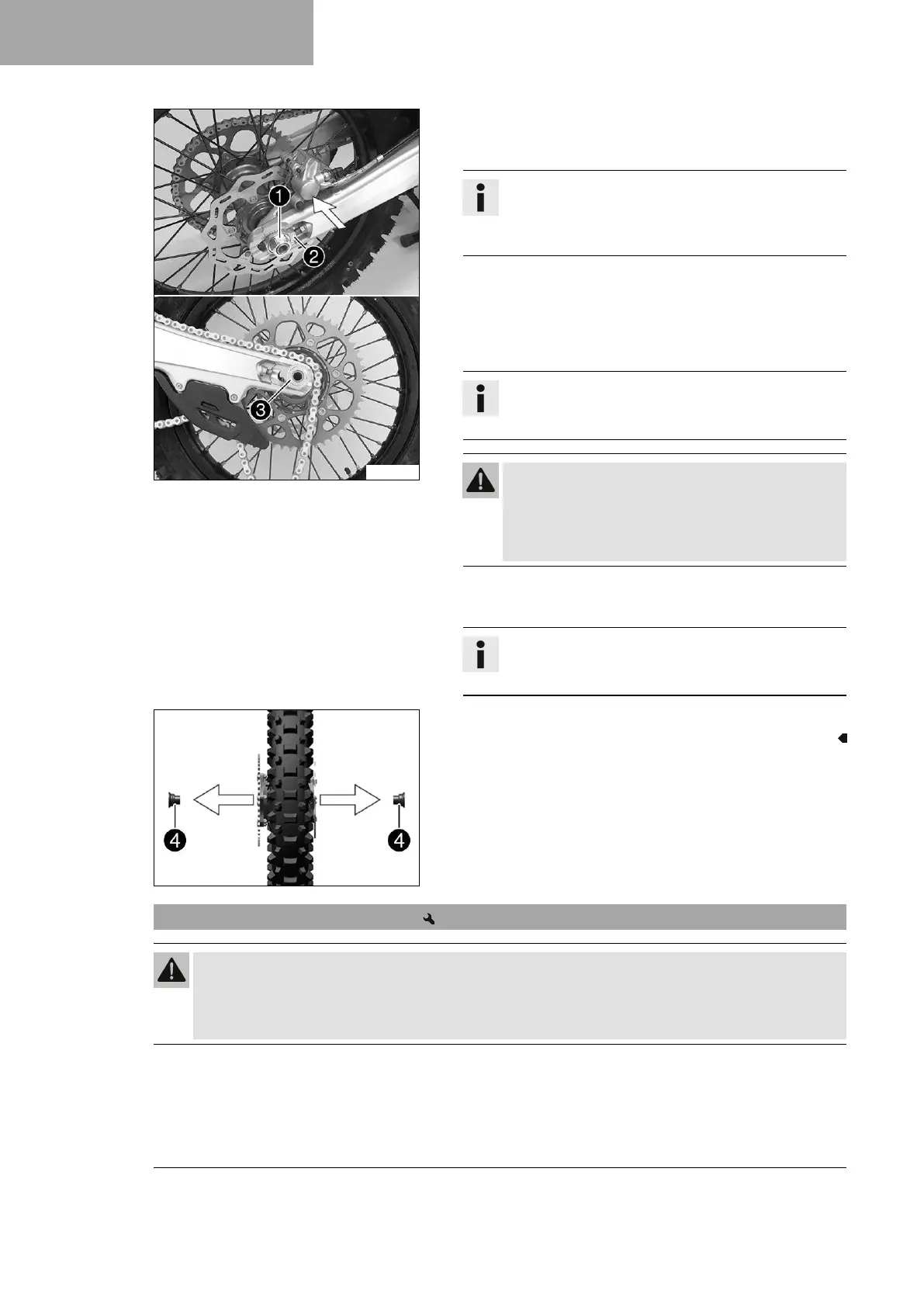

Remove nut
1
.
–
Take off chain adjuster
2
. Pull out wheel spindle
3
far
enough to allow the rear wheel to be pushed forward.
– Push the rear wheel forward as far as possible. Remove the
chain from the rear sprocket.
Info
Cover the components to protect them against dam-
age.
Warning
Danger of accidents Damaged brake discs reduce
the braking effect.
– Always lay the wheel down in such a way that the
brake disc is not damaged.
– Hold the rear wheel and remove the wheel spindle. Take the
rear wheel out of the link fork.
Info
Do not operate the foot brake lever when the rear
wheel is removed.
F03727-10
–
Remove spacers
4
.
13.4 Installing the rear wheel
Warning
Danger of accidents Oil or grease on the brake discs reduces the braking effect.
– Always keep the brake discs free of oil and grease.
– Clean the brake discs with brake cleaner when necessary.
