5
ASSEMBLY

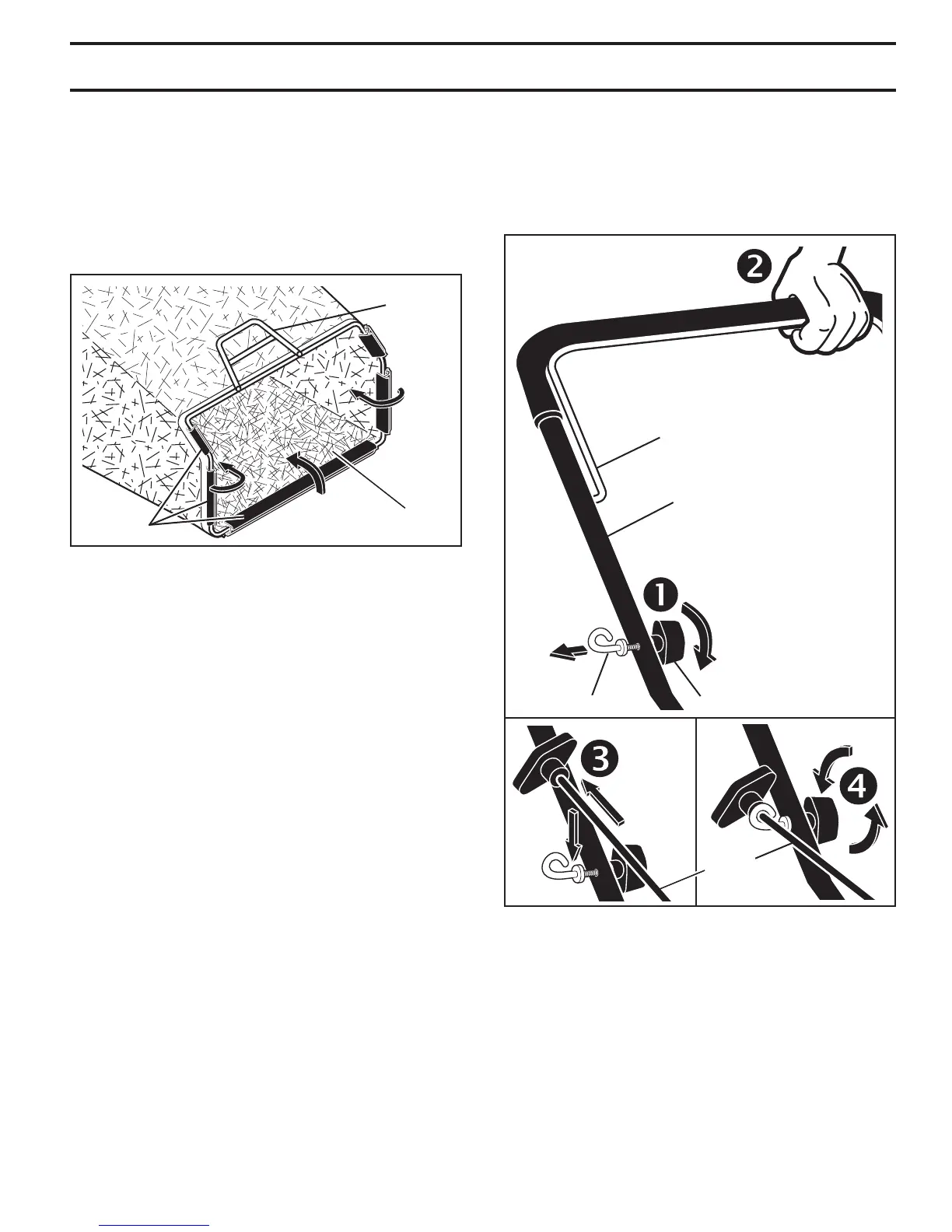

TO ASSEMBLE GRASS CATCHER
(See Fig. 2)
1. Put grass catcher frame into grass bag with rigid part
of bag on the bottom. Make sure the frame handle is
outside of the bag top.
2. Slip vinyl bindings over frame.
NOTE: If vinyl bindings are too stiff, hold them in warm water
for a few minutes. If bag gets wet, let it dry before using.
FIG. 2
FRAME
HANDLE
VINYL
BINDINGS
FRAME
OPENING
FIG. 1
OPERATOR
PRESENCE
CONTROL
BAR
HANDLE
KNOB
NUT
LIFT
UP
LIFT
UP
LOWER
HANDLE
BRACKET
MOWING
PO SI TION
UPPER
HANDLE
BOLT
INSTALL STARTER ROPE (See Fig. 3)
1. Loosen T-knob.
2. Hold control bar against upper handle.
3. Slowly pull engine starter rope out until rope will slip
into loop of rope guide.
4. Tighten T-knob.
TO INSTALL ATTACHMENTS
Your lawn mower was shipped ready to be used as a
mulcher. To convert mower to bagging or discharging,
see “TO CON VERT MOWER” in the Operation section of
this man u al.
FIG. 3
UPPER
HANDLE
CONTROL BAR
ENGINE
STARTER
ROPE
ROPE GUIDE T-KNOB
